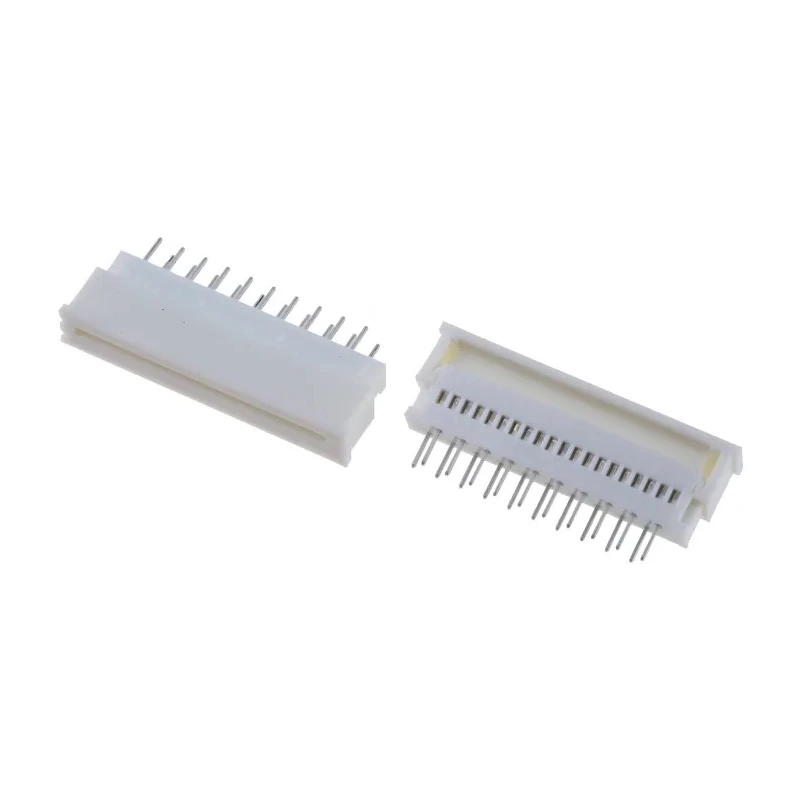

Molex 1.25 mm Pitch 20 Way Straight Female FPC Connector, ZIF, Through Hole, Solder, 200V, 1A, 39-53-2205

The Molex 39-53-2205 FPC connector is a high-precision electronic component engineered for flexible printed circuit (FPC) applications where compact form factor and secure electrical connections are critical. As part of the 5597 Series, this connector features a 1.25 mm pitch and a straight, through-hole design with 20 female contacts, allowing it to handle signal and power requirements typical in modern electronic assemblies such as consumer devices, automotive, industrial controllers, and instrumentation.

Key to its design is the Zero Insertion Force (ZIF) slide type actuator, which minimizes wear from repeated cable cycles and ensures easy insertion and extraction of FPC/FFC cables without risk of contact damage. This mechanism also maintains a consistent and reliable electrical connection, even in applications that involve regular connection cycling or vibration exposure.

The product provides a robust electrical performance carrying up to 1 A at 200 V, making it suitable for a range of data and low-power transmission needs. Phosphor bronze contacts, tin-over-nickel plating, and polyethylene terephthalate housing offer strength, excellent conductivity, and environmental resistance, crucial for reliable PCB installations within tight device enclosures or industrial systems. With through-hole solder termination and a secure locking mechanism, the connector achieves durable PCB attachment and long-term mechanical stability.

Operating reliably in environments ranging from -20°C to +80°C, this connector is ideal for industrial electronics, laboratory equipment, automotive electronics, embedded system interfaces, and compact consumer gadgets where size, reliability, and repeat cycling are essential. The single-row, straight orientation simplifies board layouts and cable management, while the locking system and ZIF actuator help prevent accidental disconnections during installation or usage.

Typical applications for the Molex 39-53-2205 include industrial and laboratory automation systems, PCB modules requiring space-saving connectors, automotive electronic interfaces, medical device internals (non-patient contact), as well as advanced consumer electronics. This product meets the rigid standards expected in professional electronics manufacturing and board-level integration across a variety of sectors.
