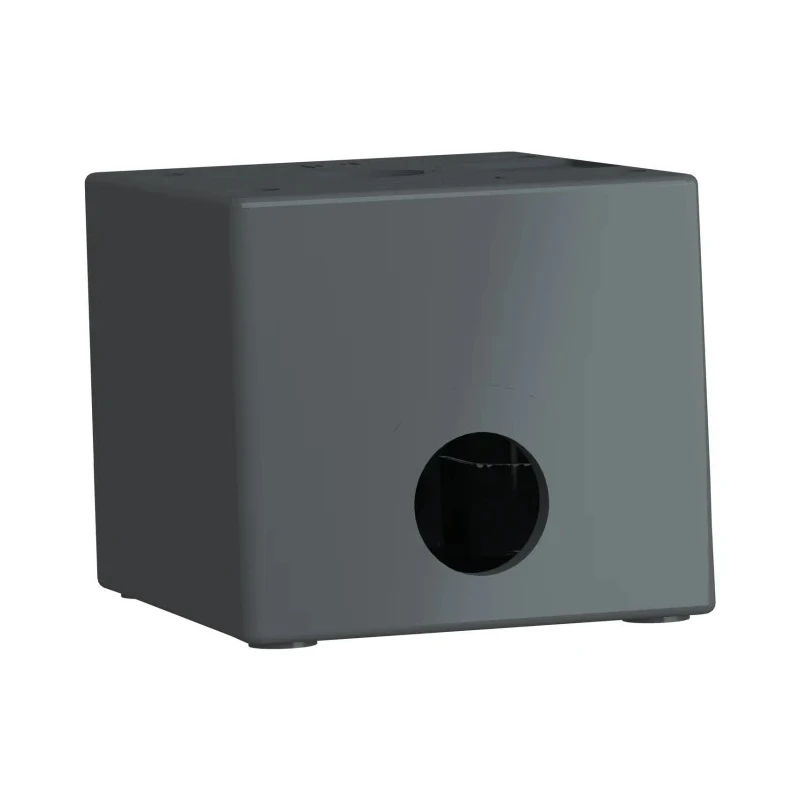

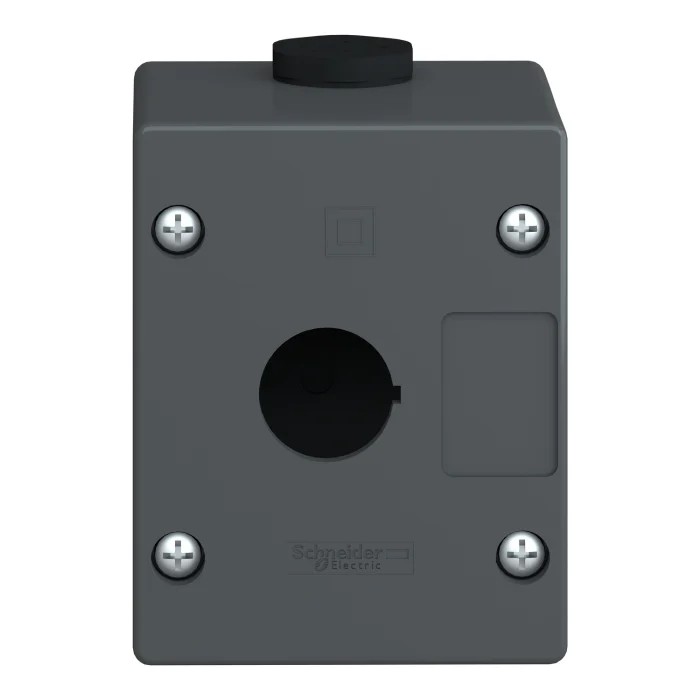

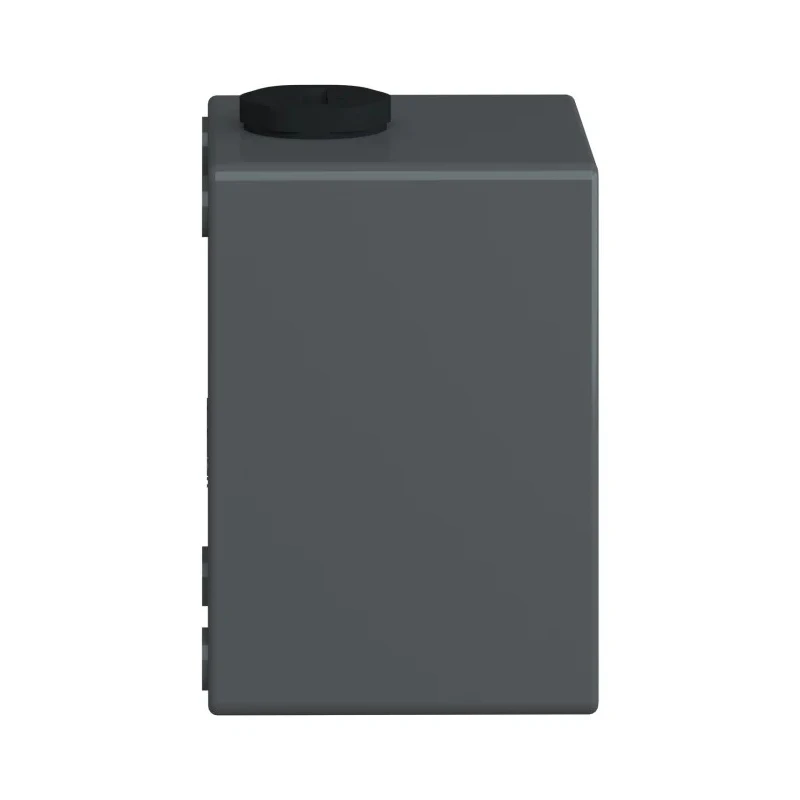

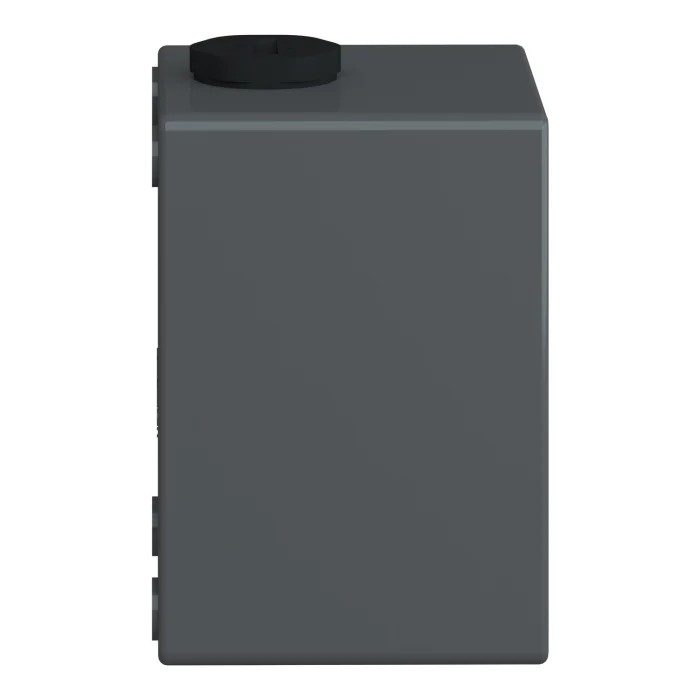

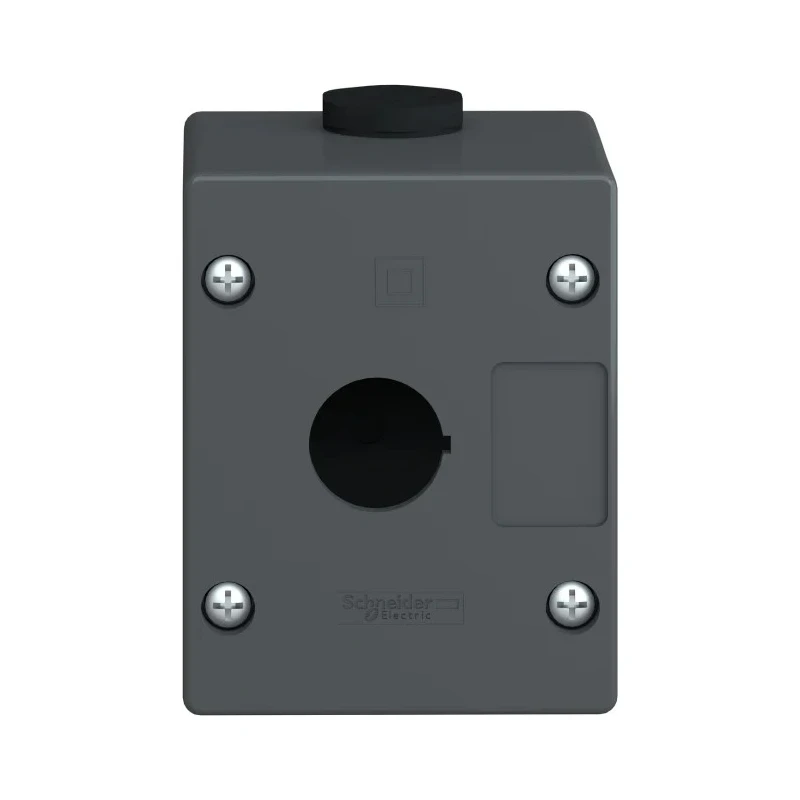

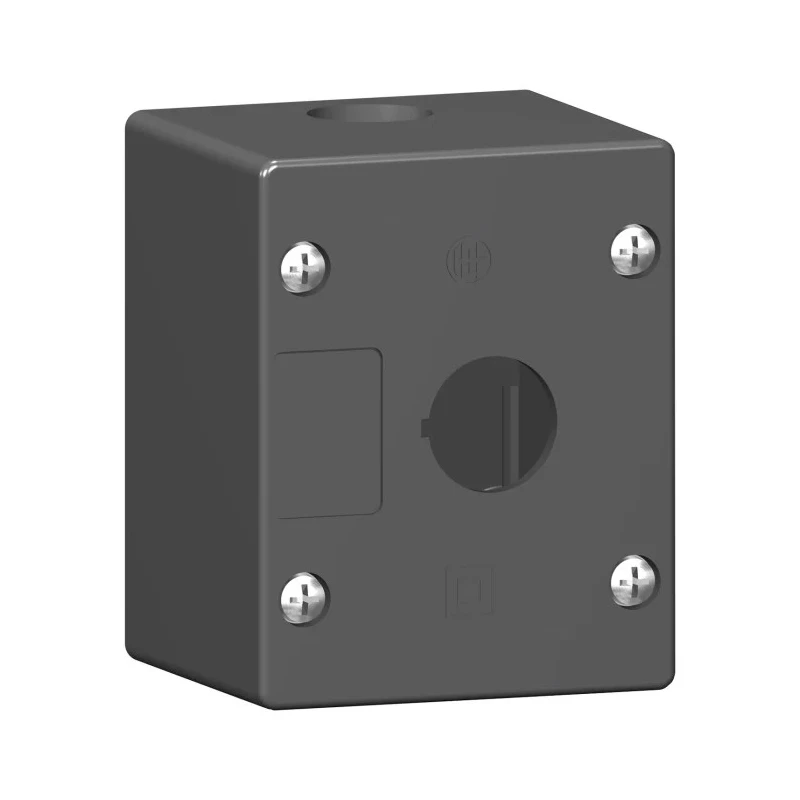

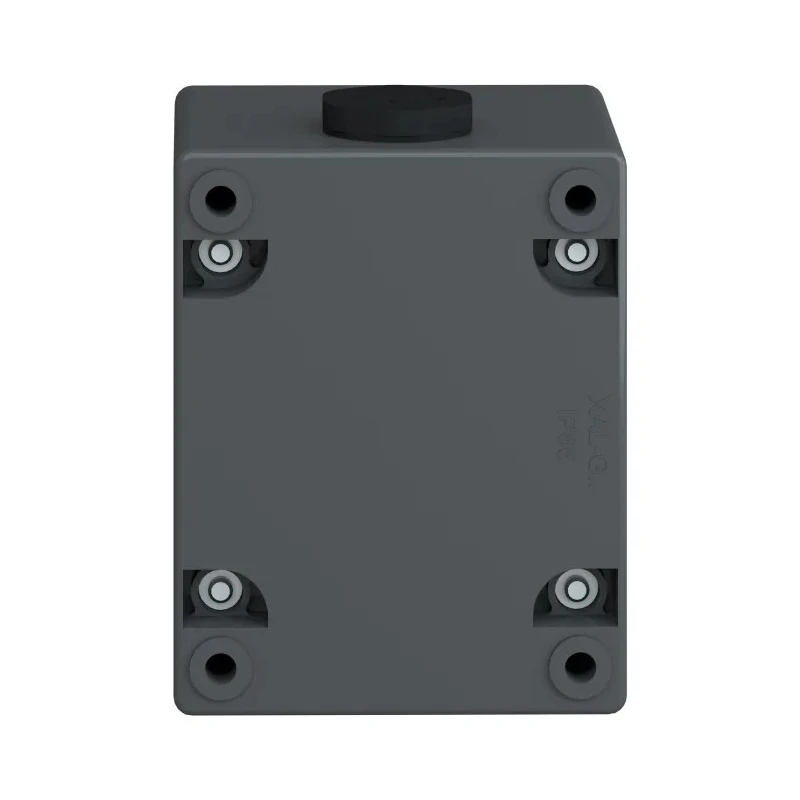

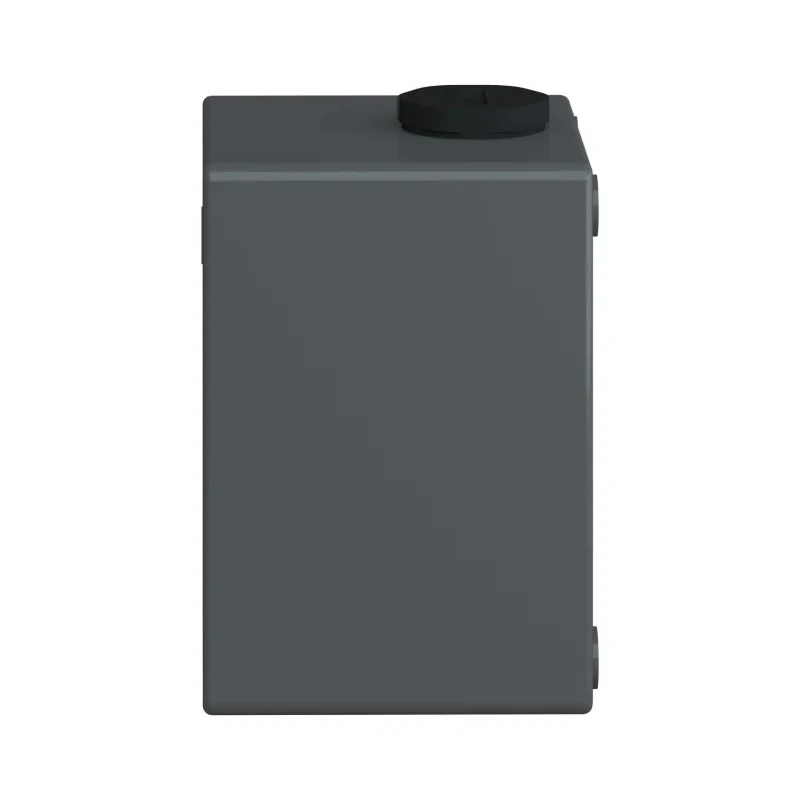

Schneider Electric Harmony XALG Push Button Enclosure, Black Polyamide, 1 Hole, 22mm Cutout, IP66/IP67/IP69K, XALG01

The Schneider Electric XALG01 Harmony Push Button Enclosure is a high-quality, compact control station housing engineered for single 22 mm diameter control and signaling units. Constructed from mineral-reinforced polyamide with a refined matt black exterior, this enclosure provides robust protection against ingress of water, dust, and aggressive cleaning agents, making it the ideal choice for industrial and food-processing settings.

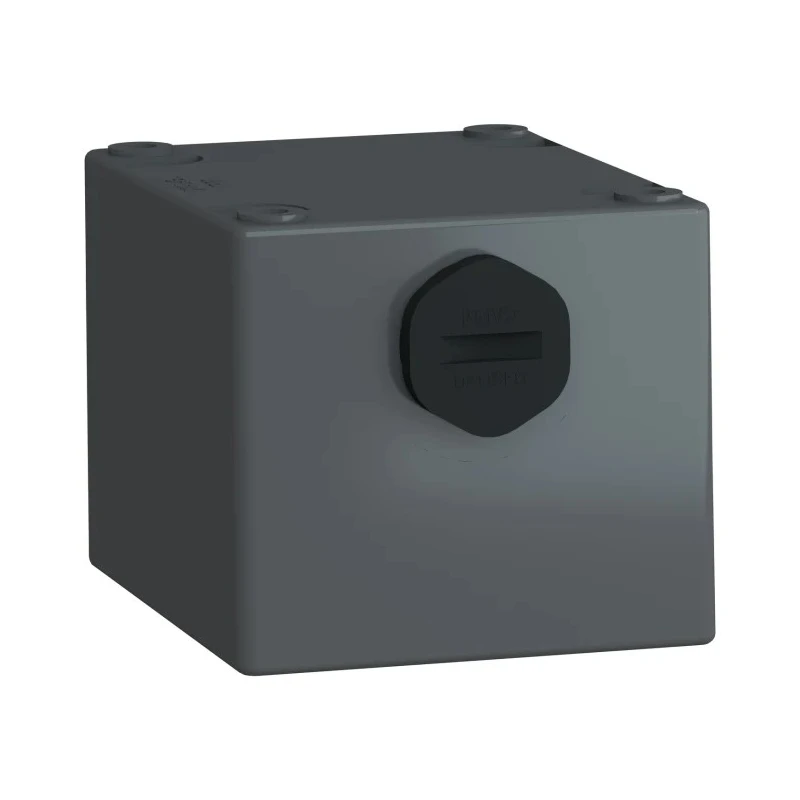

Featuring advanced ingress protection ratings (IP66, IP67, IP69K), the XALG01 ensures full functionality under severe environmental conditions including direct high-pressure and high-temperature washdowns. The tough polyamide construction offers resistance not only to impact up to IK05 but also to oils, detergents, and many industrial chemicals. Two ISO M20 knock-outs simplify wiring and provide flexibility for secure cable glands or conduit fittings, streamlining installation in automated control panels and on machinery.

The enclosure supports continuous operation in temperatures ranging from -25°C to 70°C, maintaining performance reliability in both freezing and high-heat environments. Storage is possible from -40°C to 70°C without risk of material degradation. The Class II protection design increases electrical safety by reducing dependence on the surrounding insulation, and the unit's compliance with RoHS ensures environmental stewardship in modern engineering projects.

Common applications include operator stations on production lines, washdown environments in food and beverage plants, control panels exposed to outdoor weather, and signaling locations where dust, moisture, or harsh cleaning are routine. Mechanical shock protection adds a layer of security in factory and assembly locations prone to accidental impacts. The enclosure is easy to assemble and integrates seamlessly with automation push-buttons and pilot devices designed for 22 mm cutouts.

While providing wide chemical compatibility, the enclosure may be affected by concentrated acids, oxidisers such as nitric acid, and hydrogen peroxide under certain circumstances, so chemical compatibility should always be checked in critical applications. Schneider Electric includes detailed documentation to assist with mounting, cable gland selection, and maintenance routines.
