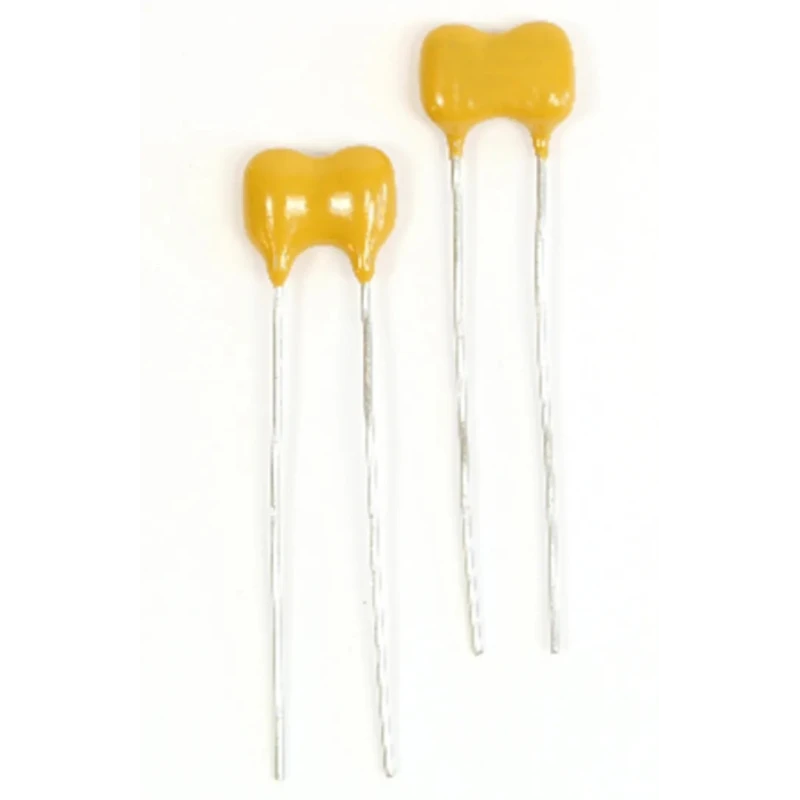

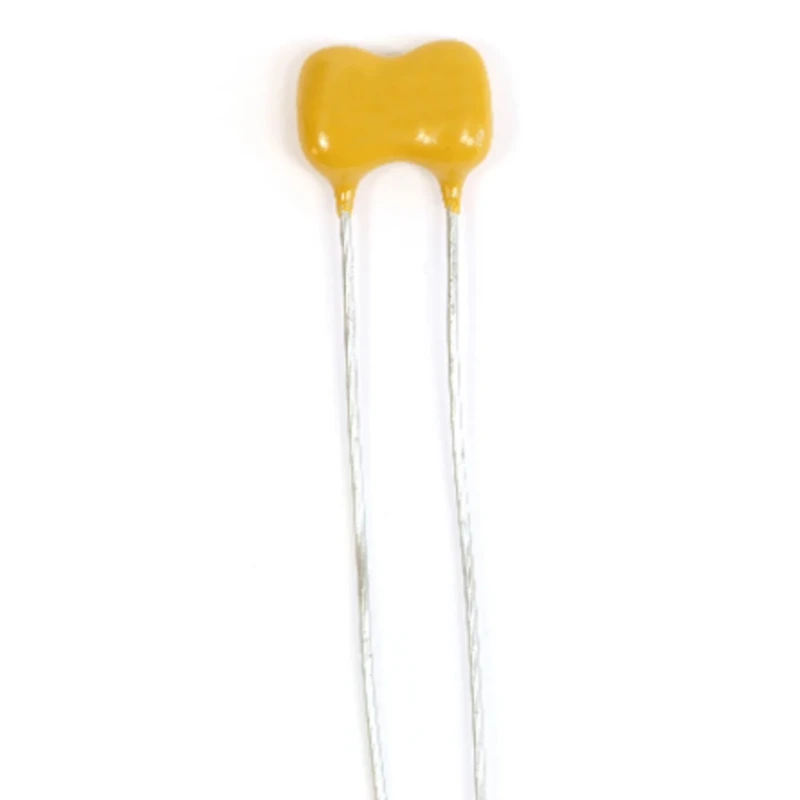

RS PRO Mica Capacitor 47 pF 500V DC D Series Radial Through Hole 0.5 pF Tolerance 495-701
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | RS PRO |
| Height | 9.14mm |
| Length | 11.43mm |
| Model | 495-701 |
| Width | 4.32mm |
| Mount Type | Through Hole |
| Construction | Radial |
| Series | D |
| Maximum Operating Temperature | 150°C |
| Tolerance | 0.5 pF |
| Capacitance | 47pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Pin Count | 2 |
| Lead Pitch | 5.72mm |
| Dielectric | Mica |
| Cornell-Dubilier 47 pF Mica Capacitor 500V dc ±5 % Tolerance, CD15 FlatBrand | Cornell-Dubilier |
Key Features
- Designed for high stability electronic and RF circuits.
- 47 pF capacitance with a precision tolerance of 0.5 pF for accurate signal processing.
- D Series construction featuring flame retardant epoxy coating for safety and durability.
- Rated for 500V DC voltage suitable for professional and military-grade equipment.
- Radial lead and through hole mounting for easy integration into PCBs.
- Operating temperature range from minus 55°C to 150°C for versatile applications.
- Silvered mica dielectric offers excellent insulation resistance and minimal loss.
- Lead pitch of 5.72 mm ensures secure placement and compatibility with standard board layouts.
Product Description
The RS PRO 495-701 Mica Capacitor is an advanced, precision passive component engineered for demanding electronic applications where stability and low loss are critical. This capacitor features a nominal capacitance of 47 pF, paired with a very tight 0.5 pF tolerance, making it perfect for RF tuned circuits, logic and transmission pathways, pulse forming networks, delay lines, DC voltage blocking, and timing circuits.
Constructed with flame retardant epoxy coating, the D Series design guarantees professional-grade reliability, safety, and durability. The silvered mica dielectric provides exceptional insulation resistance, ensuring sustained performance in environments requiring high reliability, such as military and professional electronic equipment. Its radial lead form factor and through hole mounting offer robust mechanical fit and facilitate precise placement in printed circuit boards, while the 5.72 mm lead pitch is engineered for compatibility with typical board layouts.
The capacitor is rated for 500V DC, enabling usage in circuits requiring substantial voltage handling. Operating within a wide temperature range from minus 55°C to 150°C, this component adapts to various demanding environments - including laboratory, telecom, industrial, broadcast, and scientific applications.
Dimensions include a compact length of 11.43 mm, width of 4.32 mm, and height of 9.14 mm, supporting optimization for high-density assemblies. The two-pin radial terminal ensures reliable electrical contact and supports easy integration with automated assembly processes.
Key applications of this capacitor include RF tuned circuits, professional and military-grade logic and transmission circuits, pulse forming networks, and timing circuits. Its high stability makes it preferred for situations where dependable performance is mandatory in industrial, laboratory, and commercial electronic designs.
Browse more precise capacitors in the RS PRO Mica Capacitors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The mica capacitor has a nominal capacitance of 47 pF.
It is rated for 500V DC, making it suitable for high voltage applications.
This model features a precision tolerance of 0.5 pF, ensuring accurate signal processing.
The operating temperature range is from -55°C to 150°C, allowing for versatile applications in various environments.
It utilizes a through hole mounting method, which facilitates integration into printed circuit boards (PCBs).
The dimensions are 11.43 mm in length, 4.32 mm in width, and 9.14 mm in height.
The lead pitch is 5.72 mm, ensuring compatibility with standard board layouts.
It features a silvered mica dielectric, which provides excellent insulation resistance and minimal loss.
It is suitable for RF tuned circuits, logic and transmission pathways, pulse forming networks, and timing circuits.
This model has a pin count of 2, designed for radial terminal connections.
It is constructed with a flame retardant epoxy coating, ensuring safety and durability in demanding applications.
The country of origin for this product is India.
