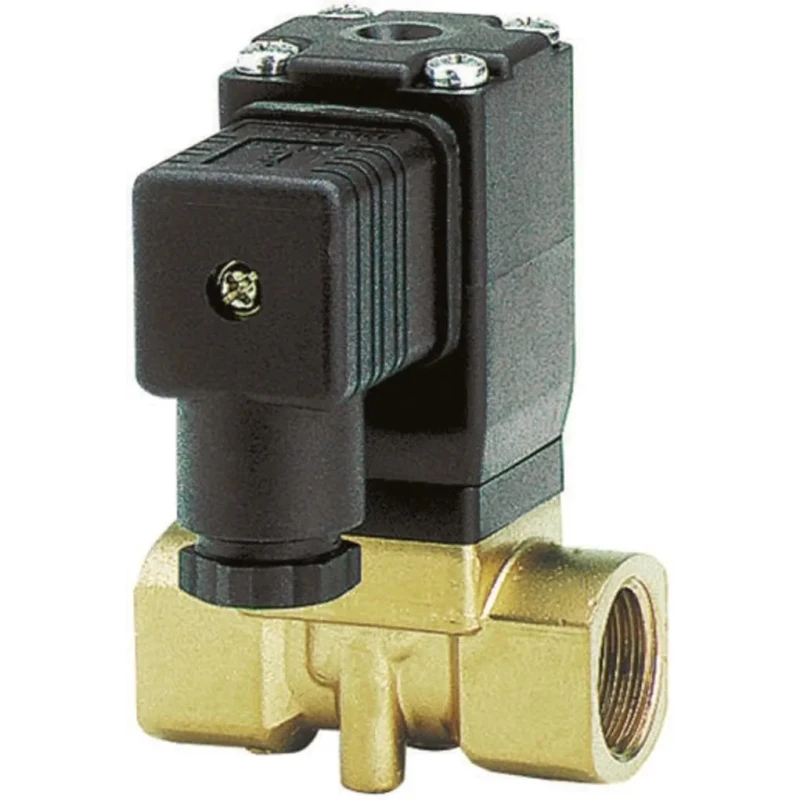

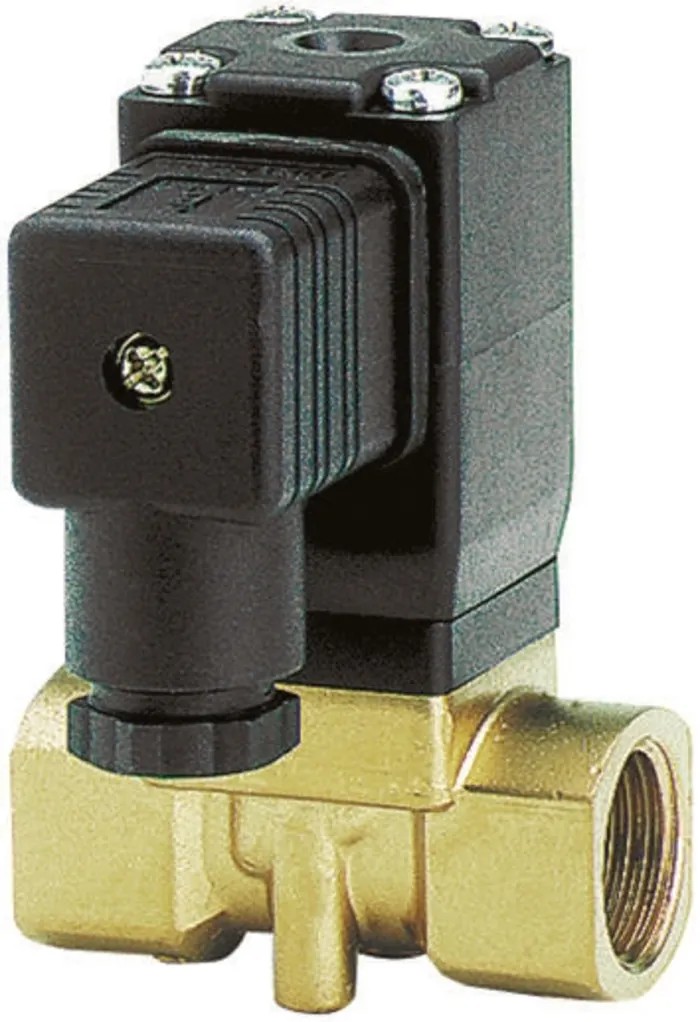

Buschjost Solenoid Valve 8256100.8001.02400, 2 Port, NC G 3/8, 24V, 316 Stainless Steel, PA66, 10mm Orifice, 10 bar, Germany
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | 316 Stainless Steel, PA66 |
| Maximum Operating Pressure | 10 bar |
| Outlet Connection Type | Threaded |
| Series | 82560 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 10mm |
| Supply Voltage | 24V |
| Hazardous Area Certification | x II 2 GD EEx me II T3 |
| Inlet Port Size | G 3/8 |
| Default Valve Position | NC |
| Flow Factor Kv | 1.7m³/h |
Key Features
- Operates with a supply voltage of 24V for compatibility with industrial control systems.
- Features two ports with G 3/8 threaded connections for reliable plumbing integration.
- Normally closed membrane valve ensures safe shutoff when not energized.
- Suitable for partially aggressive gases and liquids due to 316 stainless steel and PA66 body materials.
- Handles pressures up to 10 bar and temperatures from -10°C to 50°C.
- Servo-assisted pilot operation with electromagnetic forced lift for efficient switching.
- Fixed flow direction and operation without minimum pressure differential.
- Complies with PED 97/23/EG, DIN EN 175301-803, EN 61000-6-3, EN 61000-6-1, EN 60529 IP65, DIN VDE 0580, Electromagnetic Guideline (2004/108/EC).
Product Description
The Buschjost 8256100.8001.02400 solenoid valve is a precision-engineered industrial valve designed for automated fluid handling tasks. This model offers a robust solution for controlling the flow of gas and liquid media within manufacturing, process, and laboratory environments. Its electromagnetic operation ensures rapid switching and reliability, making it well suited for critical fluid power circuits.
The valve incorporates a normally closed membrane configuration, meaning fluid flow is blocked unless the solenoid is energized. This safety feature is crucial in processes requiring fail-safe shutoff, such as chemical dosing, pneumatic supply, or water treatment systems. Threaded G 3/8 inlet and outlet ports provide secure plumbing connections, facilitating easy integration with pipeline or manifold systems.
Constructed from 316 stainless steel and PA66 composite, the valve body resists corrosion, abrasion, and chemical attack, supporting a wide range of aggressive fluids. The orifice diameter of 10 mm yields reliable throughput, with a flow factor Kv of 1.7 m³/h for efficient process control. The maximum operating pressure of 10 bar and ambient temperature range from -10°C to 50°C suit both indoor and demanding outdoor installations.
Its pilot-operated, servo-assisted mechanism requires no minimum pressure differential and supports forced lift for consistent valve activation. The fixed flow direction simplifies system design and enhances operational stability. Compliance with international standards - including Pressure Equipment Directive (PED), DIN EN, and IP65 ingress protection - confirms suitability for industrial, laboratory, water treatment, HVAC, and hazardous environments.
Hazardous area certification (x II 2 GD EEx me II T3) allows deployment in regulated settings where explosive atmospheres may be present. The membrane design offers suitability for vacuum operations, meeting requirements in pharmaceutical, food, and specialty chemical applications.
The Buschjost 8256100.8001.02400 is ideal for engineers seeking a durable, high-integrity solenoid valve for precise flow regulation. Explore more from the Buschjost range in the Solenoid Valves category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It operates with a supply voltage of 24V, making it compatible with industrial control systems.
The valve body is constructed from 316 stainless steel and PA66, providing resistance to corrosion and chemical attack.
The orifice diameter of this solenoid valve is 10 mm.
It can operate within a temperature range of -10°C to 50°C.
This model features a normally closed (NC) design, meaning it blocks fluid flow when not energized.
It features G 3/8 threaded connections for both inlet and outlet, ensuring reliable plumbing integration.
The flow factor (Kv) of this model is 1.7 m³/h, which aids in efficient process control.
It has a hazardous area certification of x II 2 GD EEx me II T3, allowing deployment in regulated environments.
Yes, the materials used in its construction make it suitable for partially aggressive gases and liquids.
It complies with several standards including PED 97/23/EG, DIN EN 175301-803, and IP65 ingress protection.
The default valve position is normally closed (NC), ensuring safe shutoff when not energized.
