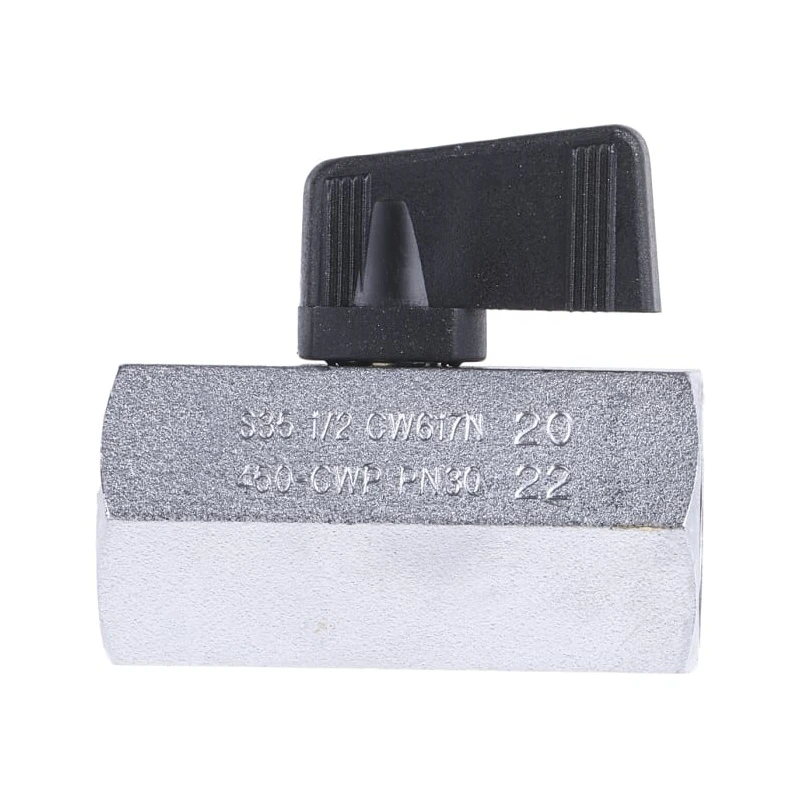

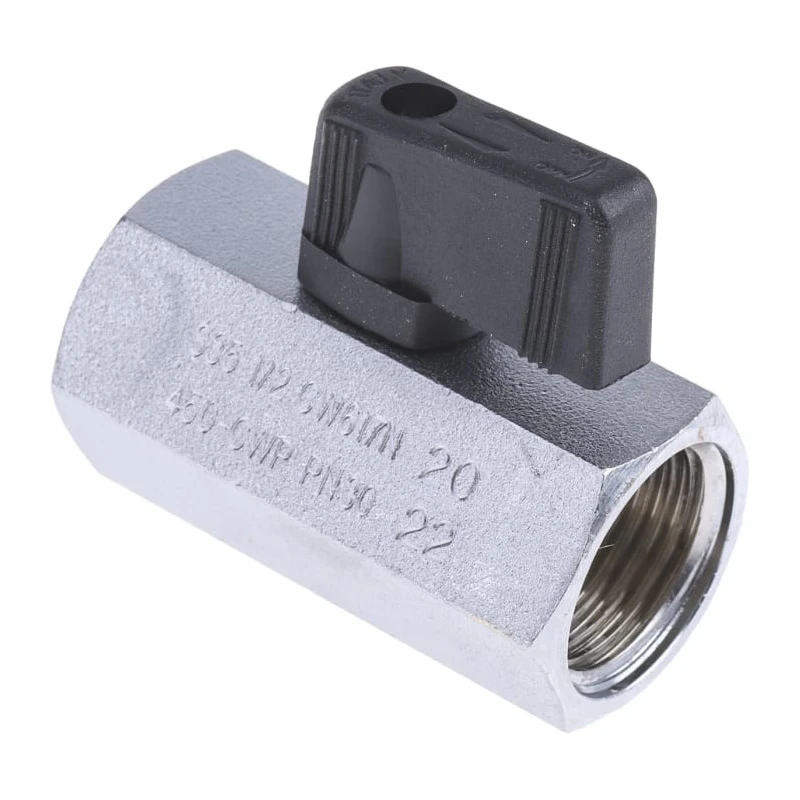

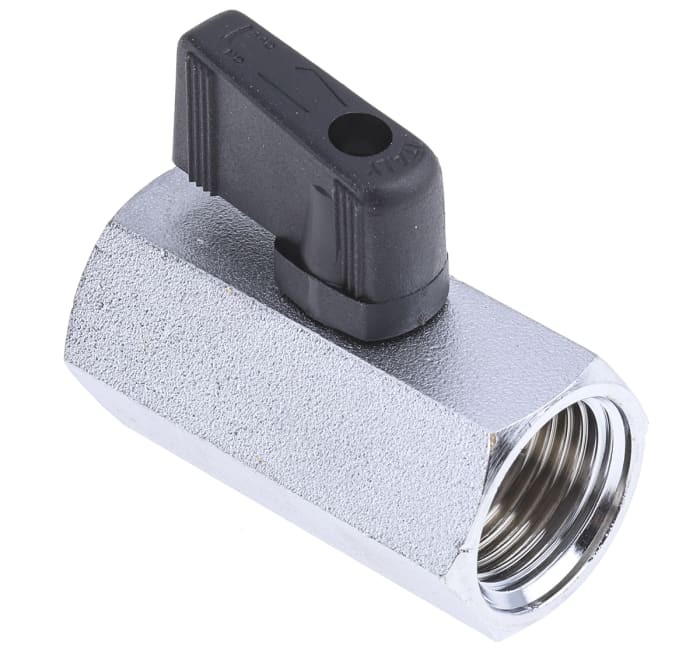

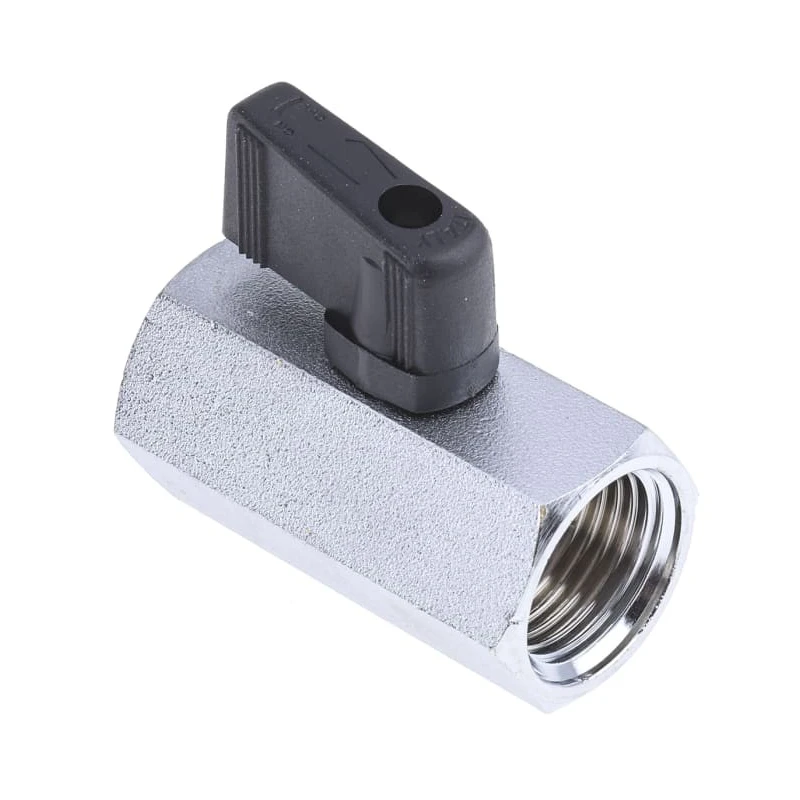

RS PRO Chrome Plated Brass Hydraulic Ball Valve, Threaded G, 1/2 Inch, 30 Bar, Mini, S35 Series 486-350

RS PRO 486-350 Chrome Plated Brass Hydraulic Ball Valve is a high-performance component engineered for efficient fluid control within industrial hydraulic systems. It features a robust chrome-plated brass body and is part of the S35 series, specifically designed to handle rigorous applications requiring reliability and precision.

The valve incorporates a threaded G connection standard, which is widely adopted for hydraulic installations and ensures a secure, leak-proof fit. The 1/2 inch port size provides compatibility with common hydraulic lines, making the valve suitable for diverse fluid transfer setups including machinery, manufacturing, laboratory, water treatment, and HVAC applications.

Built for durability, the chrome-plated brass construction resists corrosion and mechanical wear over extended service periods. The valve supports a maximum operating pressure of 30 bar, delivering performance suitable for both pneumatic and hydraulic circuits. It accommodates a broad temperature range from -20°C to 90°C, enabling operation in demanding environments such as factories or outdoor installations.

Internal ball seats are made from pure PTFE with a self-lubricating flexible-lip design, offering smooth actuation and minimizing maintenance requirements. The stem is equipped with an FPM O-ring, boosting sealing integrity. This dual-port mini configuration offers the advantage of compact mounting and installation flexibility.

The RS PRO hydraulic ball valve provides a dual sealing system, allowing operation in either flow direction and simplifying installation. It is maintenance-free, with no metal-to-metal moving parts, and all seals utilize silicone-free lubricants. Each valve undergoes a 100% seal test to guarantee performance.

Used in industrial hydraulic, pneumatic, laboratory, chemical, and water treatment systems across manufacturing, process control, and HVAC setups.

Additional technical benefits include ISO228 parallel threads, support for connection options such as FxF, MxF, BSPT, and NPT, and a handle that clearly displays ball position for user convenience and safety.

Hydraulic ball valve designed for high-pressure fluid control applications. Body made of durable chrome-plated brass for corrosion resistance and longevity. Threaded G connection standard ensures secure and reliable installation.

Operates at a maximum working pressure of 30 bar for demanding hydraulic systems. 1/2 inch port size suitable for common industrial hydraulic lines. Dual port design with mini configuration for compact mounting. Seal material is polytetrafluoroethylene (PTFE) providing excellent leak prevention.

Operates within temperatures from -20°C to 90°C, suitable for various industrial environments. Features stem with FPM O-ring for enhanced sealing safety. Ball seats are pure PTFE, self-lubricating with flexible-lip design for smooth operation.
