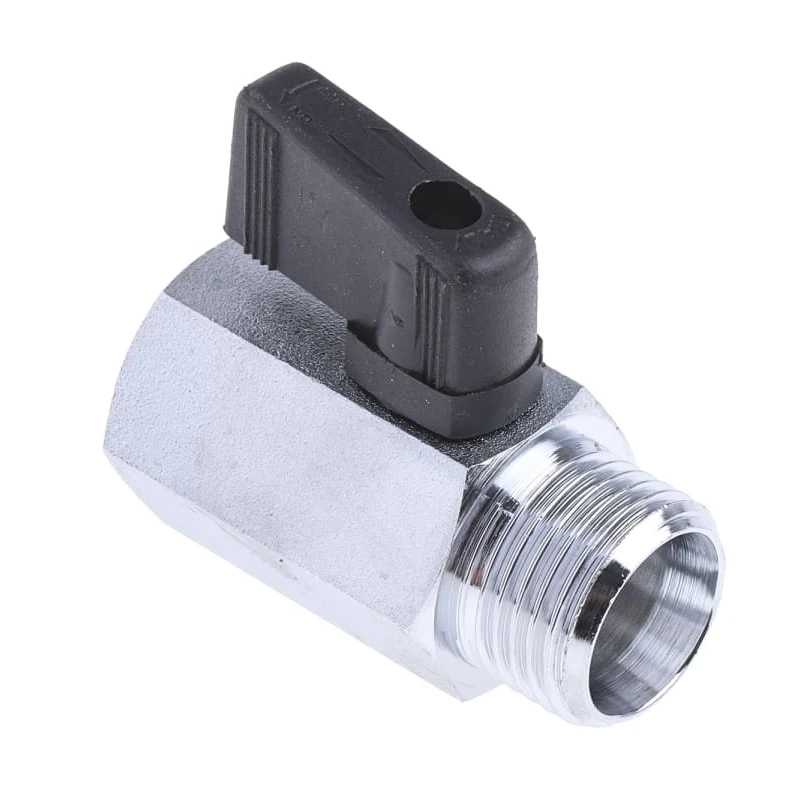

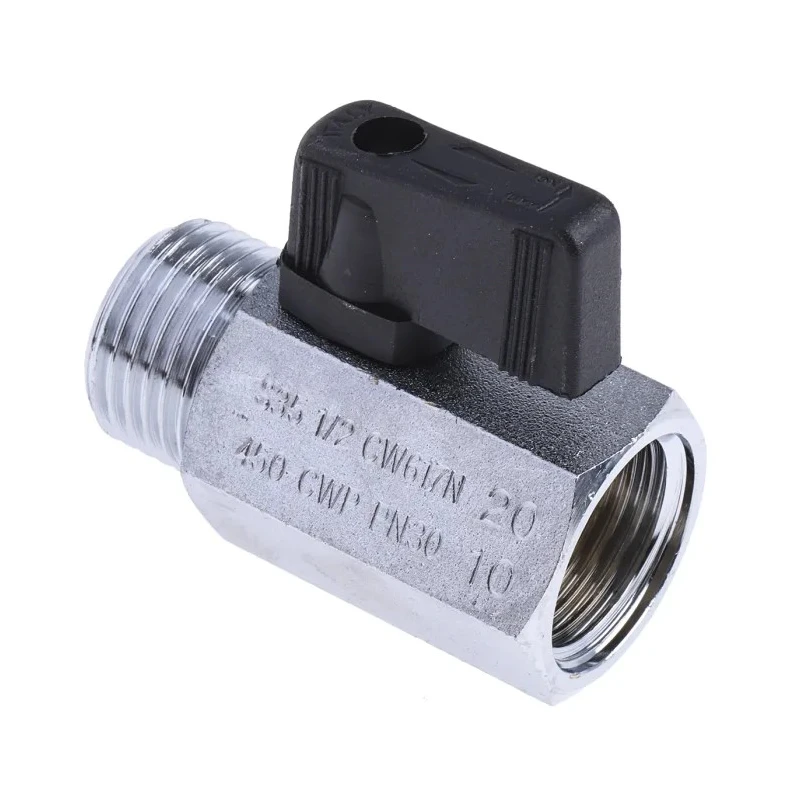

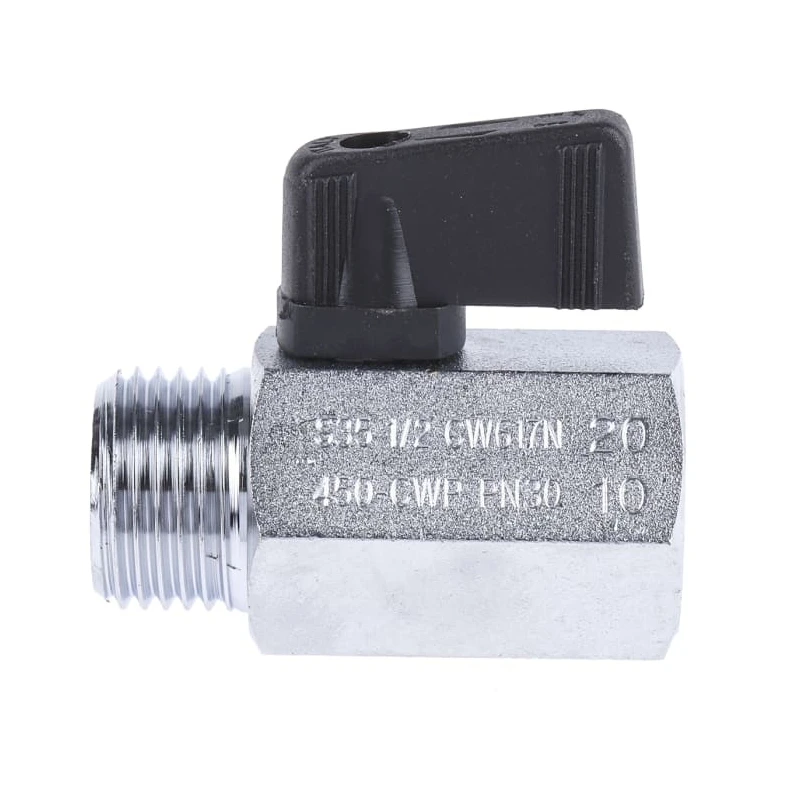

RS PRO Chrome Plated Brass Hydraulic Ball Valve, 1/2 Inch, 2 Ports, Threaded, 30 Bar, S35 Series 486-356

RS PRO 486-356 Chrome Plated Brass Hydraulic Ball Valve, part of the S35 series, is designed for hydraulic and pneumatic systems requiring robust flow control. Constructed with chrome plated brass, this valve delivers superior corrosion resistance and durability ideal for demanding industrial environments such as manufacturing, water treatment, and HVAC applications.

This model accommodates two ports with 1/2 inch G ISO228 parallel thread connections, providing optimal compatibility in hydraulic circuits. With a maximum operating pressure of 30 bar and a wide temperature range from minus 20 to plus 90 degrees Celsius, the valve is suited to air, water, and other fluid media.

The internal ball is also chrome plated brass, ensuring longevity. The pure PTFE self-lubricating ball seats with flexible-lip design guarantee reliable tight sealing and extended operational life, reducing downtime and ensuring system efficiency. The stem configuration incorporates an FPM O-ring, maximizing safety and limiting leak risks even in harsh work conditions.

Notably, this valve features a dual sealing system that allows operation in either direction, simplifying installation and offering flexibility for varied layout requirements. The handle is designed to clearly indicate ball position for safe actuation. Maintenance-free operation is achieved by eliminating metal-to-metal moving parts, while a silicone-free lubricant is used on all seals to prevent contamination.

Every unit undergoes a 24-hour 100 percent seal test, with travel stops on the body preventing overstress at the stem. Chrome plated brass body and ball for optimal corrosion protection. 1/2 inch threaded ports support standard hydraulic fittings.

PTFE ball seats minimize friction and maximize sealing integrity. FPM O-ring guarantees stem safety and prevents leakage. Maintenance-free usage with no metal-to-metal moving parts. Wide pressure and temperature rating covers diverse industrial fluids.

Made in Italy, engineered for reliable performance.

This valve is recommended for industrial fluid handling systems, HVAC installations, water treatment processes, and pneumatic applications. Explore RS PRO's full range of hydraulic valves and industrial fittings at EnvMart for more high-performance solutions.
