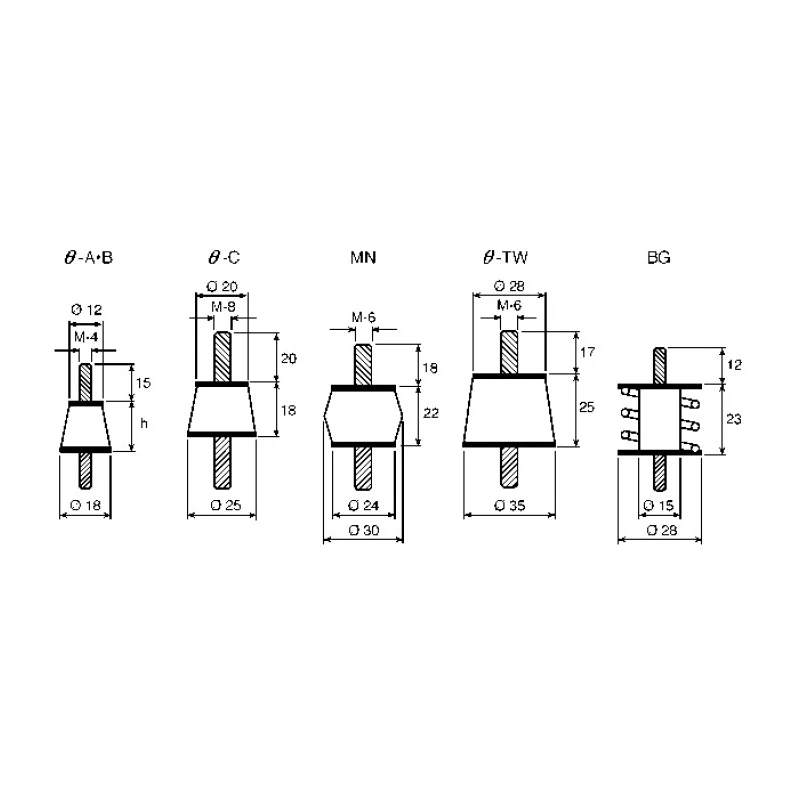

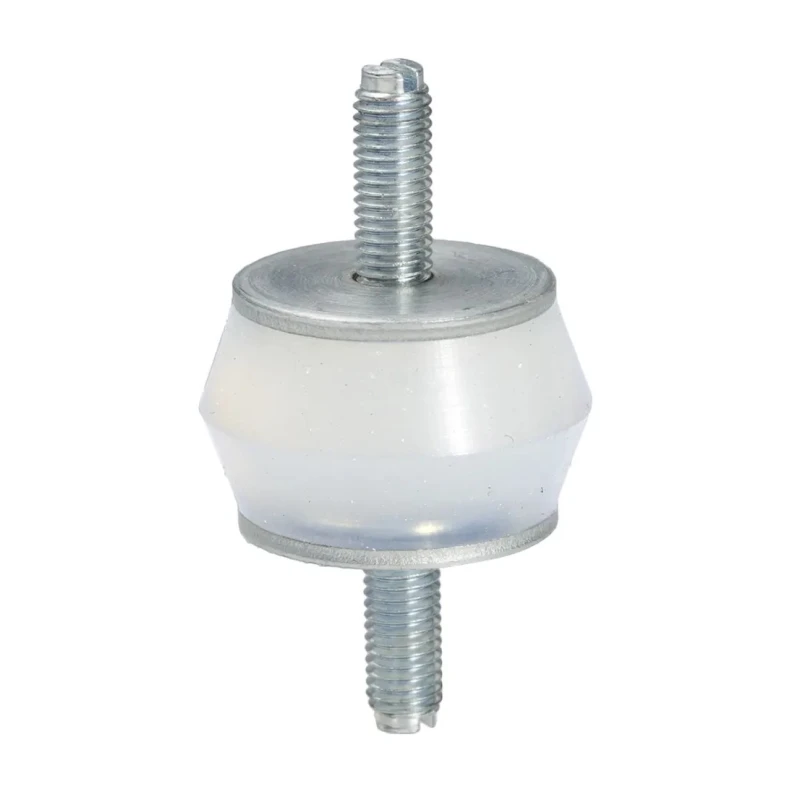

Taica M6 Anti-Vibration Mount Male to Male Bobbin, Silicone, 22 kg Compression, 6 mm Bore, 30 mm OD, 58 mm Height MN-5
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Taica |
| Material | Silicone |
| Model | MN-5 |
| Mount Type | Screw |
| Series | MN |
| Outside diameter | 30mm |
| Maximum Operating Temperature | 200°C |
| Thread Size | M6 |
| Minimum Operating Temperature | -40°C |
| Bore Diameter | 6mm |
| Overall height | 58mm |
| Static Load Rating | 215.6N |
| Bore Length | 22mm |
| Anti Vibration Mount Type | Male to Male Bobbin |
| Compression Load | 22kg |
| Compression Deflection | 21.75mm |
Key Features
- Designed for vibration isolation and shock absorption in industrial and laboratory equipment.
- M6 threaded male to male bobbin for secure fixing.
- Soft silicone gel material provides high temperature resistance from -40°C to 200°C.
- Offers 22 kg compression load rating and deflection of 21.75 mm.
- Suitable for vacuum pumps, precision equipment, measuring devices and sensitive electronics.
- 30 mm outside diameter with 58 mm height and 6 mm bore diameter.
- Excellent weather, ozone, UV, and chemical resistance for durable performance.
Product Description
Taica MN-5 M6 Anti-Vibration Mount is a specialist male to male bobbin designed for industrial vibration damping applications, utilizing a soft silicone gel to isolate vibrations and absorb shocks. The mount features a compression load rating of 22 kg, a bore diameter of 6 mm, an outside diameter of 30 mm, and a total height of 58 mm, making it suitable for demanding environments. The silicone gel provides high-performance vibration isolation and is able to dampen lower frequencies than traditional rubber or neoprene mounts.
With an M6 threaded configuration, this male to male bobbin enables secure installation. The mount is designed for use in equipment supported by four points and is ideal for vacuum pumps, precision measuring instruments, on-board computers, and other sensitive electronic applications. Its strong bond between metal parts and silicone ensures reliable performance, and it supports compression deflection up to 21.75 mm.
Taica mounts boast excellent weathering properties, being resistant to ozone, UV, and chemicals. The high temperature resistance range from -40°C to 200°C ensures suitability in laboratory, manufacturing, industrial machinery, and HVAC setups. However, it is not recommended for uneven loads, angular, tensile, twisting, or shearing loads.
The mount type is screw-based, allowing for secure vertical slotted bolt attachment. The soft silicone gel construction delivers superior vibration damping to protect sensitive instruments and reduce operational noise.
Typical applications include supporting vacuum pumps, precision analytical equipment, measuring applications, and sensitive electronics in industrial, laboratory, and commercial settings.
Vibration isolation and shock absorption for machinery and sensitive equipment. M6 male to male bobbin for robust fixing. Silicone gel ensures high durability and temperature resistance. Compression capacity is suitable for moderate load applications.
Designed for use in laboratory, manufacturing, HVAC, and industrial machinery zones. Excellent resistance against ozone, UV, and chemicals, ensures long service life. Screw-style mounting for easy and secure installation.
Explore EnvMart's range of industrial anti-vibration mounts and Taica products for advanced vibration management solutions.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Taica MN-5 Anti-Vibration Mount has a compression load rating of 22 kg.
This model has an outside diameter of 30 mm, a bore diameter of 6 mm, and a height of 58 mm.
The MN-5 mount is made from silicone, which provides high temperature resistance and excellent vibration isolation properties.
It can operate in temperatures ranging from -40°C to 200°C.
This model features a screw-type mounting system, allowing for secure vertical slotted bolt attachment.
The Taica MN-5 mount supports a compression deflection of up to 21.75 mm.
It is suitable for use in vacuum pumps, precision measuring instruments, and sensitive electronics in industrial and laboratory settings.
This mount is designed for moderate load applications and is not recommended for uneven loads or angular, tensile, twisting, or shearing loads.
The silicone material offers excellent resistance to ozone, UV, and chemicals, ensuring durability in various environments.
The bore length of this mount is 22 mm.
The Taica MN-5 Anti-Vibration Mount is manufactured in Japan.
This model is designed to dampen lower frequencies more effectively than traditional rubber or neoprene mounts.
