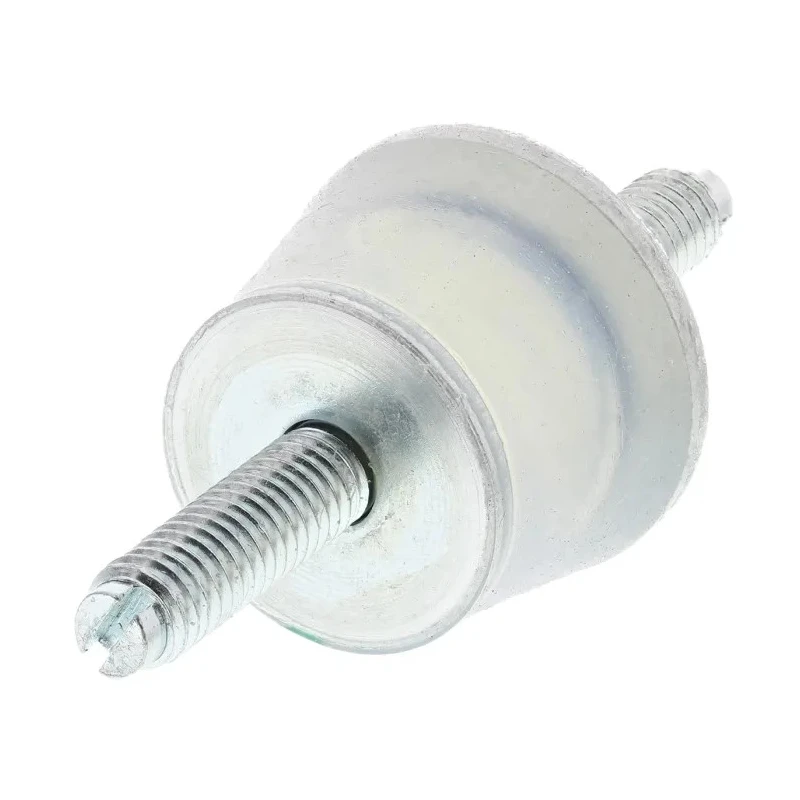

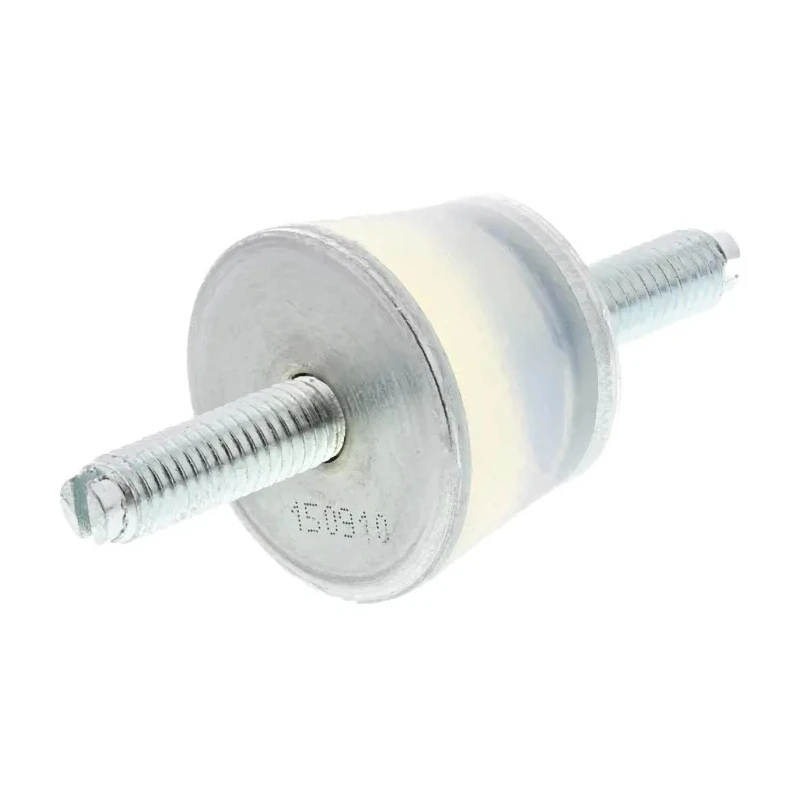

Taica Silicone Anti-Vibration Mount, M6 Male-to-Male Bobbin, 6mm Bore, 58mm Height THETA-C

The Taica THETA-C M6 Anti-Vibration Mount features a high-performance soft silicone gel, combined with a cylindrical male-to-male bobbin shape, engineered for vibration isolation, shock absorption, and noise reduction in technical installations. With its precise 6mm bore and 58mm overall height, this mount is specifically tailored for industrial machinery, laboratory instrumentation, and sensitive electronics requiring robust vibration damping and stable mounting.

The mount utilizes soft silicone gel to achieve superior vibration dampening compared to traditional rubber or neoprene alternatives. This gel formulation allows effective absorption of low frequency vibrations, significantly reducing operational noise and protecting delicate equipment, ranging from precision measuring devices to on-board computing hardware.

The M6 male-to-male screw mounting system provides secure and easy installation, ensuring compatibility with common engineering hardware and mounting layouts. The cylindrical bobbin form is optimized for uniform load distribution, accommodating loads from 2 kg up to 100 kg across four support points, as specified by Taica's product documentation.

Material resilience is a key feature: the anti-vibration mount operates reliably across a wide temperature range from -40°C to 200°C, and offers resistance to weathering, ozone, UV exposure, and numerous chemicals. The strong bond between metal parts and silicone guarantees lasting performance, while the mount's black finish remains aesthetically neutral.

This model is particularly suited for mounting vacuum pumps, precision measuring instruments, sensitive laboratory equipment, and electronic devices requiring vibration isolation. It is not recommended for installations involving uneven loads, angular loading, twisting, tensile, or shearing loads, to preserve the structural integrity and vibration isolation capabilities.

Applications include industrial machinery, laboratory equipment, HVAC systems, commercial electronics, water treatment devices, and systems where vibration insulation is critical to operational stability.

Technical benefits of the Taica THETA-C include fixable installation via two vertical slotted bolts, and compatibility with environments demanding high temperature resistance. All SUS versions (not shown here) are stainless steel equivalents, broadening the range of use cases.
