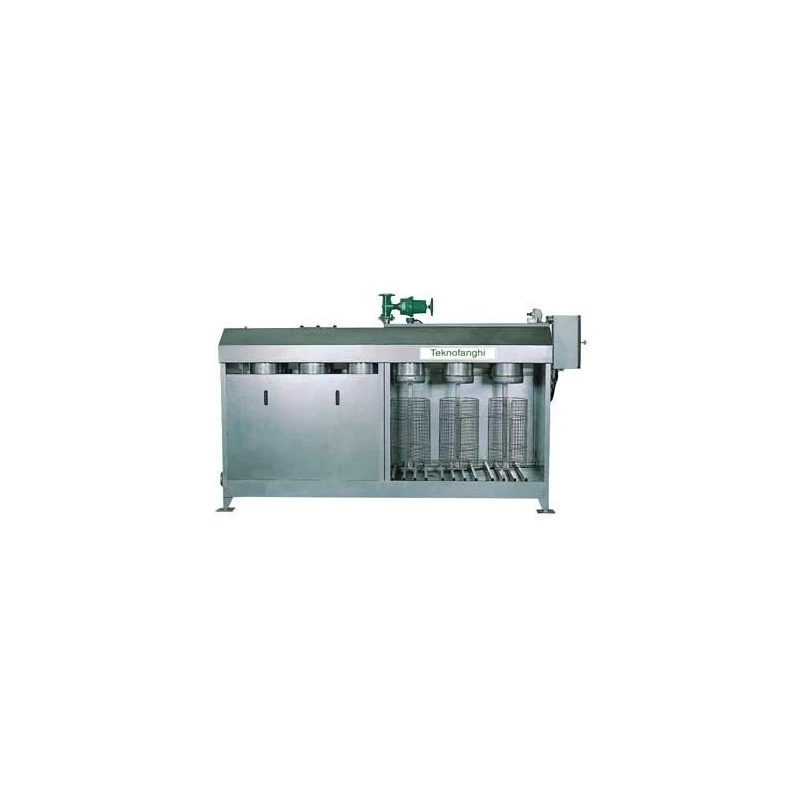

Sludge Dewatering System 1m3/day- 20 m3/day

In Sludge Dewatering System, flocculated sludge is poured in the filtration bag  These bags are mounted on a stainless steel frame and it is designed to give even sludge distribution. After operating dry solid content of 15% to 20% can be achieved. At the initial dewatering stage, the bags are sealed and removed with a special bag trolley. In the second phase, sludge weight and volume decreases regardless of weather. After 10 to 15 days, a cake of 50 to 90 % dry solid content is achieved. Water repellent material of the bags prevents entering of rainwater into the bag but allows dehydration of the contents by evaporation.This Sludge Dewatering System can handle 10 to 200 kg of dry solid per day in two to three shift operations per day. A semi-automatic machine with dedicated control panelin corporating digital controller and level probe can also be supplied on request.AdvantagesNo rotating partsLow Polyelectrolyte consumptionEfficient dewateringNo power consumptionSludge retained in the bagWide range of slurries can be handledSuitable for varying pHNo spillageSafe operationVery less floor space requirementCan be installed on floor / steel structureLow man - hours consumptionEasy to operateBenefitsLow operating costCan handle input suspended solid concentration from as low as 0.5% w/w dry basisLess operating costNo spillage of sludgeClean surroundingNo insects/ flies/ smellPrevents Corrosion, grants Long life to the machineClean surroundingSpace savingLow foundation / installation costLow operating costOperator friendly

• Small footprint
• Special foundation not required
• Negligible maintenance
• Control panel with necessary interlocks and safety systems
