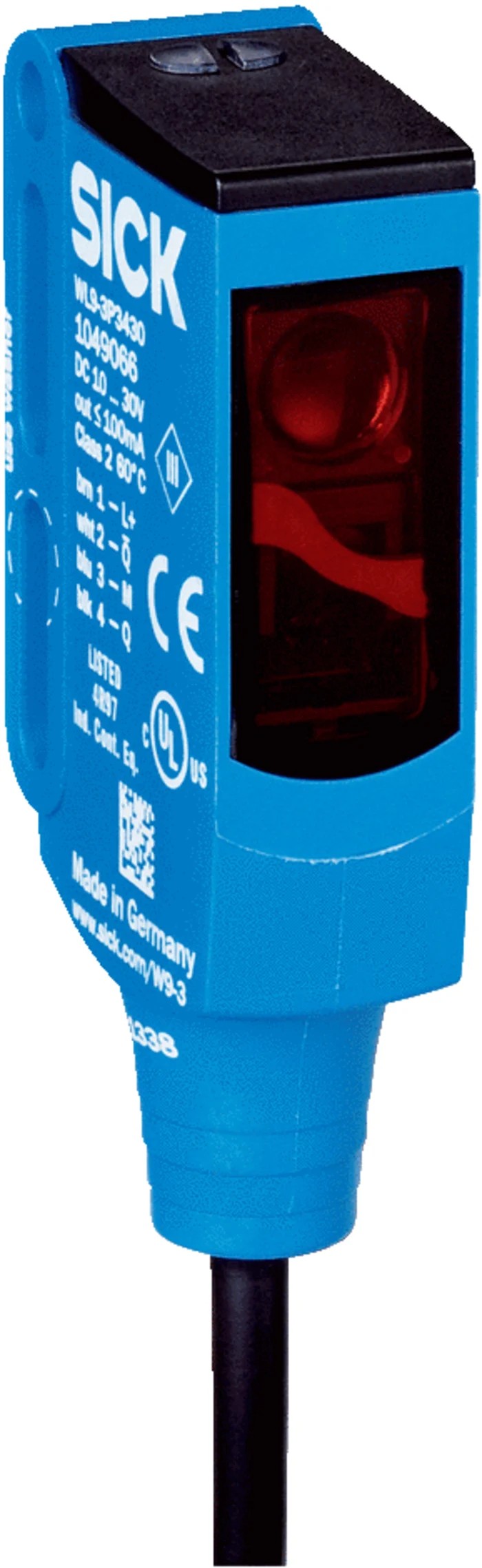

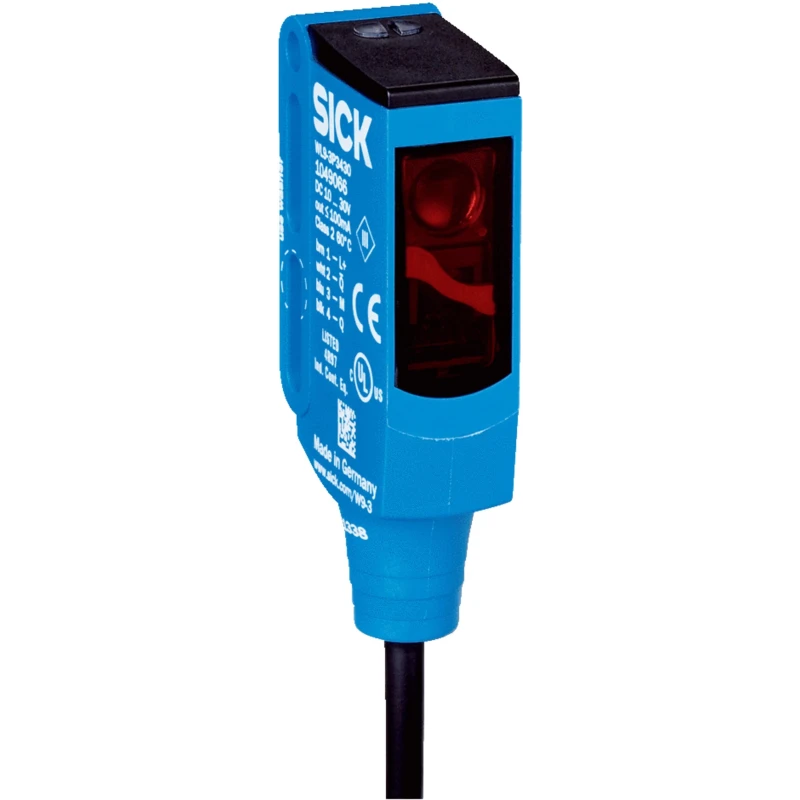

SICK Retroreflective Photoelectric Sensor Block Style, 4 m Detection Range, PNP Output, IP66/IP67/IP69K, 30V DC, WL9-3P3430
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 4 m |
| Model | WL9-3P3430 |
| IP Rating | IP66, IP67, IP69K |
| Housing Material | Vistal Plastic |
| Output type | PNP |
| Series | W9 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | EN IEC 63000, EU, RL |
| Sensor Style | Block |
Key Features
- Designed for industrial environments requiring precise object detection.
- Compact block-style housing made from durable Vistal plastic for mechanical resistance.
- Retroreflective light beam enables detection across distances up to 4 meters.
- PNP output allows integration with sourcing PLC and automation systems.
- Suitable for wet, harsh, and high-pressure washdown areas due to IP66, IP67, and IP69K ingress protection.
- Wide operating temperature range from -40°C to 60°C supports both cold storage and elevated temperature areas.
- Quick response time of 500 microseconds ensures high-speed detection and counting.
- Four-pin connector facilitates standardised wiring for power and output.
Product Description
The SICK WL9-3P3430 Retroreflective Photoelectric Sensor is engineered for demanding industrial sensing applications, where accurate and reliable object detection is critical. Featuring a block-style compact housing, this sensor is constructed with robust Vistal plastic, enhancing resistance to mechanical shocks and corrosive cleaning procedures in manufacturing, packaging, and automation environments.
Its retroreflective light beam technology allows detection of objects up to 4 meters away by reflecting light back from a mounted reflector. The sensor outputs PNP logic, making it compatible with sourcing automation controls and programmable logic controllers for seamless integration.
Designed for wet and aggressive processes, the enclosure is rated IP66, IP67, and IP69K, offering protection against high-pressure, high-temperature washdown and dust ingress. This enables usage in food and beverage lines, chemical production, and facilities with rigorous cleaning requirements.
The WL9-3P3430 supports a wide temperature range of -40 to 60 degrees Celsius, ensuring operation in cold storage warehouses, assembly areas, and heat-intensive production zones. With a fast response time of 500 microseconds, it is ideal for conveyor tracking, product counting, position control, and automated machine end-of-travel sensing.
An integrated four-pin connector provides standardised wiring for power and output signals, simplifying installation and maintenance. The unit operates with an LED light source, delivering stable signals and long-term sensing reliability.
Industrial applications include conveyor presence detection, pallet tracking, high-speed assembly counting, and wet-clean environments across manufacturing, laboratory automation, process control, commercial packaging, and HVAC systems.
The SICK WL9-3P3430 meets EN IEC 63000 certification for EU technical compliance and is manufactured in Germany. Its advanced protective housing and high-precision electrical characteristics make it a preferred choice in industrial automation projects.
Discover more SICK sensors and advanced photoelectric sensing technology for industrial automation on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is up to 4 meters, utilizing retroreflective light beam technology.
It features a PNP output type, allowing for integration with sourcing automation controls and PLC systems.
The response time of this sensor is 500 microseconds, enabling high-speed detection and counting.
This model has IP66, IP67, and IP69K ratings, making it suitable for wet and harsh environments with high-pressure washdown requirements.
It operates within a wide temperature range of -40°C to 60°C, suitable for various industrial environments.
The housing is constructed from Vistal plastic, which enhances mechanical resistance in demanding conditions.
It features a four-pin connector for standardized wiring of power and output signals, simplifying installation.
Yes, its IP ratings and robust construction make it suitable for use in food and beverage lines and other wet-clean environments.
The sensor utilizes an LED light source, which provides stable signals for long-term sensing reliability.
It meets EN IEC 63000 certification for EU technical compliance, ensuring it adheres to relevant standards.
It is designed for applications such as conveyor presence detection, pallet tracking, and high-speed assembly counting in industrial settings.
This model is manufactured in Germany, ensuring adherence to high manufacturing standards.
