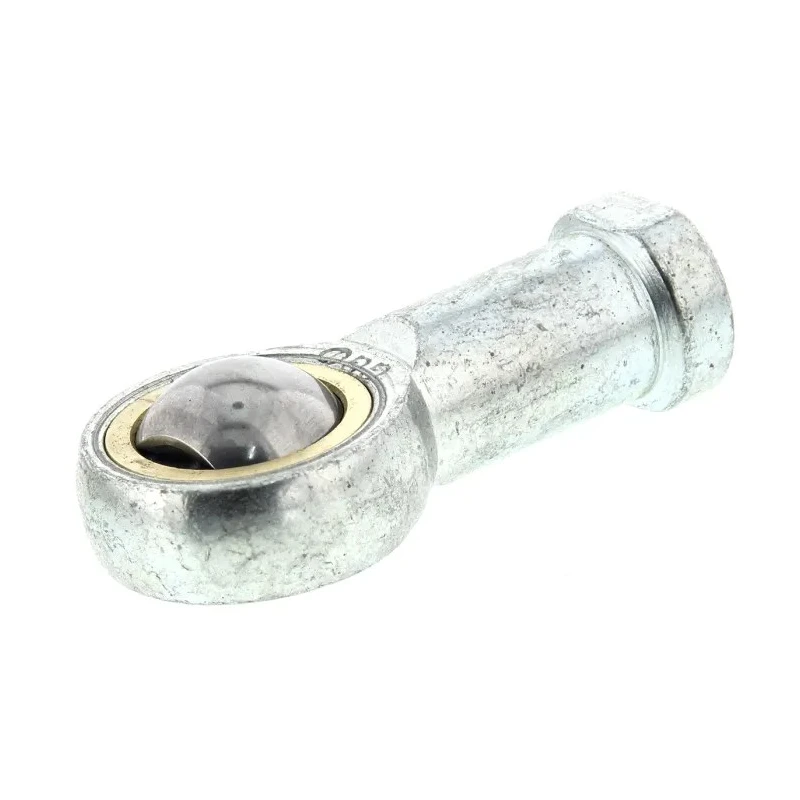

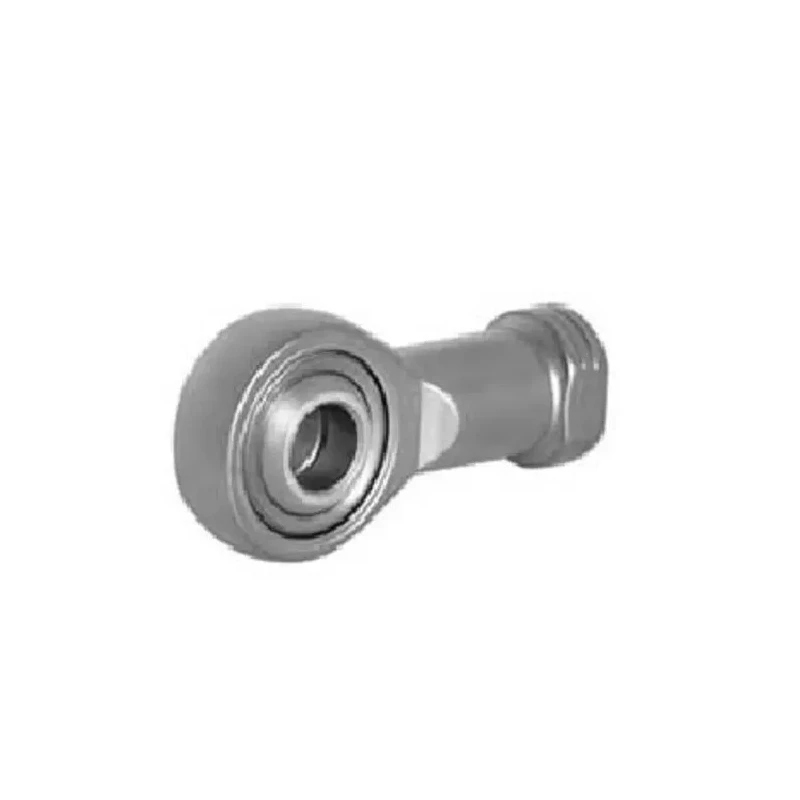

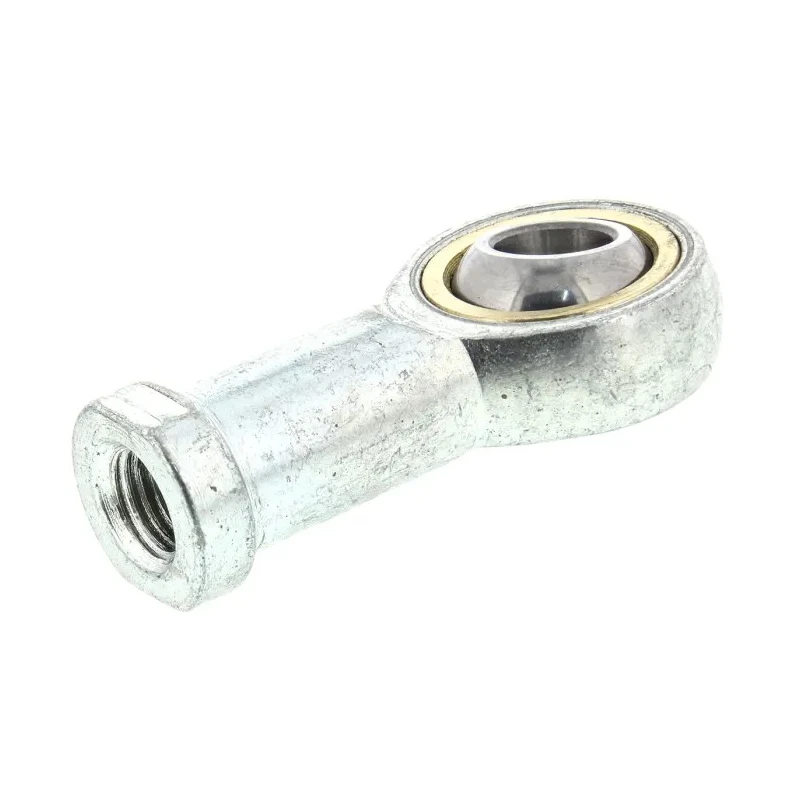

Norgren Steel Mounting Bracket Metric , 57mm Width, -20°C to 80°C, Female Thread, Steel, Universal Pneumatic Rod QM/8025/32

The Norgren QM/8025/32 Steel Mounting Bracket Metric is a precision-engineered rod end bearing designed for use in pneumatic and mechanical systems. Manufactured from robust steel, it ensures reliable performance and longevity in demanding industrial environments. Its metric thread standard allows seamless integration with a wide range of cylinders, including magnetic piston and pneumatic profile types.

The bracket features a female connection with internal threading for a secure and straightforward mounting style. Its lightweight design, weighing just about 80 grams, contributes to overall system efficiency and reduces operational strain. The wide operating temperature range from -20°C to 80°C makes it suitable for varied environments, while its 57mm overall width ensures a stable and strong joint for pneumatic assembly.

Engineered to handle forces up to 10 bar (1000kPa), this rod end bearing is perfect for low-to-medium pressure tasks in industrial settings. The universal configuration supports use with IMI Norgren's QM series 25mm bore cylinders, offering broad compatibility and flexible installation options. Its spherical bearing supports rotary, oscillating, and linear movement, making it ideal for applications where dynamic motion is required.

Typical use cases include automotive manufacturing, aircraft engineering, marine applications, industrial automation, and even remote-control helicopters. The steel construction guarantees resistance to mechanical stresses, ensuring uninterrupted performance even in heavy-duty environments.

Installation is both simple and reliable due to the female internal thread, supporting stable integration within pneumatic systems. Its versatility is further enhanced by compatibility with both profile and magnetic piston cylinders. The rod end's articulating joint enables machines to move efficiently and precisely, improving operational reliability and reducing maintenance needs.

This mounting bracket is a favored choice among engineers for its ruggedness, universality, and consistent performance in modern industrial, laboratory, and commercial manufacturing sectors. Designed to withstand a range of operating conditions, it offers optimal support for pneumatic actuation and motion control applications.

Explore further pneumatic rod ends and mounting brackets in the Rod End Bearing category at EnvMart, along with Norgren's full product line for advanced fluid power solutions.
