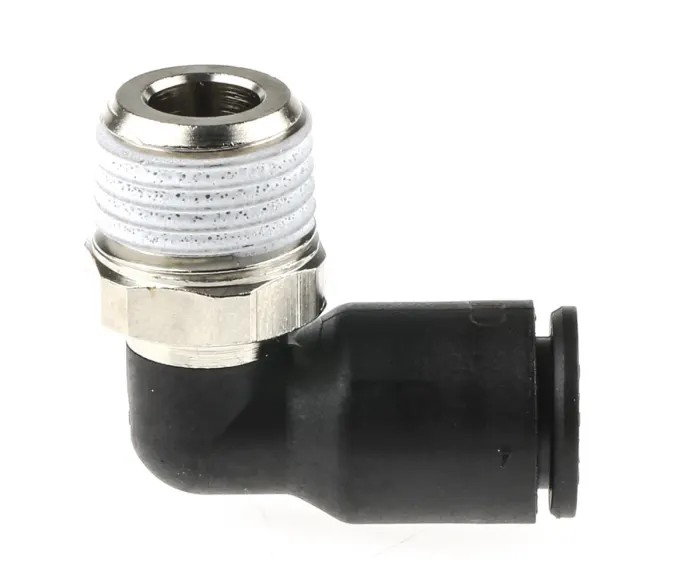

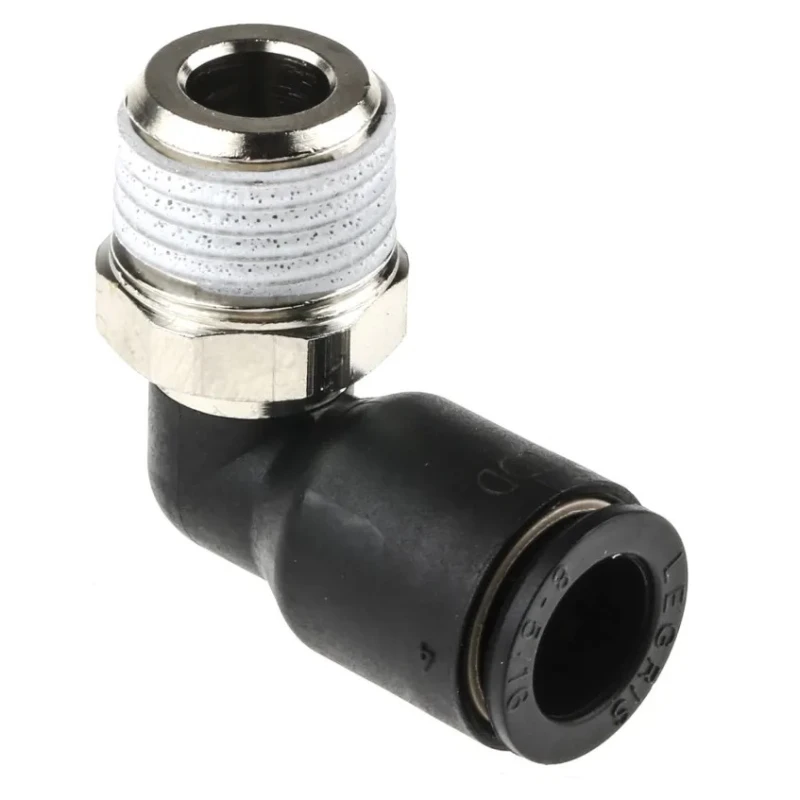

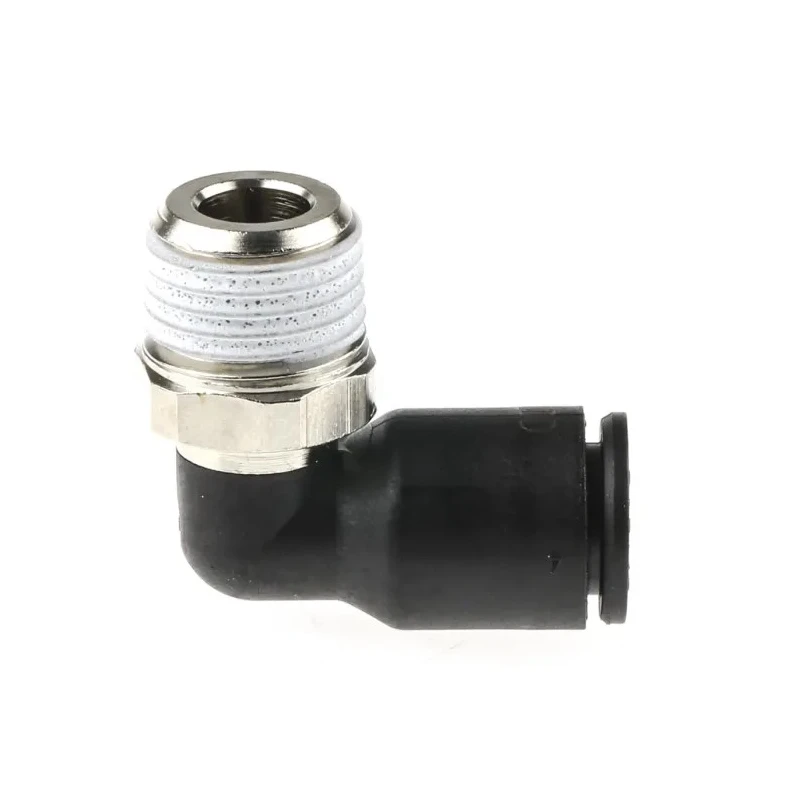

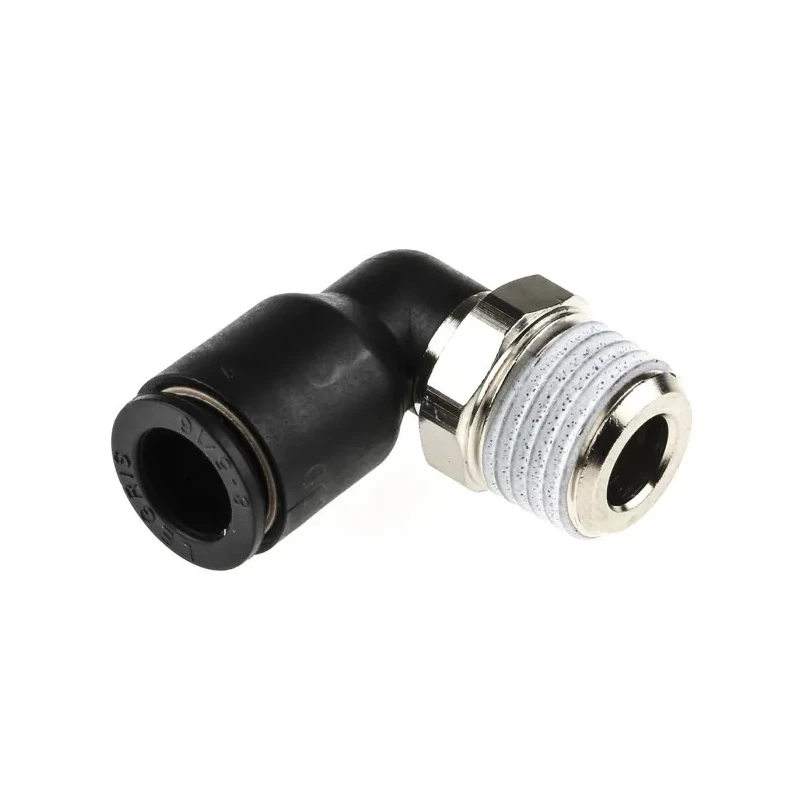

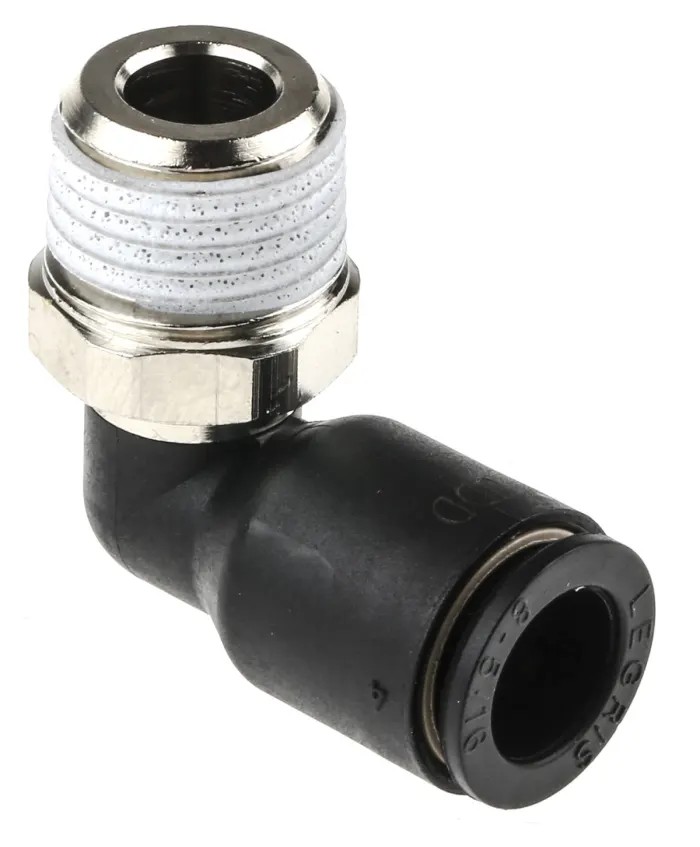

Legris LF3000 Series Male Stud Elbow Adaptor 1/4 in R, Push-in 8mm, Glass Reinforced Nylon, ISO, Nickel Finish

The Legris LF3000 Series male stud elbow adaptor, model 3109 08 13, is a robust pneumatic fitting engineered for industrial compressed air systems. Designed with a 1/4 inch R taper thread (male) and 8 mm push-in tube connection, it simplifies installation and enhances reliability in pneumatic circuits.

This fitting utilizes high-grade glass reinforced nylon with a nickel finish, providing both strength and corrosion resistance necessary for demanding environments. The LF3000 is fully compliant with ISO standards and features a full bore design that ensures minimal flow restriction and exceptionally low leak rates.

Engineered to operate under both vacuum (up to 0.9 bar) and positive pressure (up to 20 bar), this adaptor supports a broad operating temperature range from -20°C to 80°C, making it suitable for a wide spectrum of pneumatic applications. Its plastic body and integrated nitrile O-rings ensure automatic sealing in dynamic and static situations.

Assembly is simplified through tool-free push-in installation, and disconnection is achieved by simply depressing the release collet. For compact installations and tight spaces, the adaptor may be tightened using a flat spanner or Allen key. Throughout manufacturing, each fitting is 100% leak tested for reliable performance.

This model is optimized for use in various industrial sectors including automation, manufacturing, machine fluid control, laboratory setups, and HVAC pneumatic networks. Its adaptability to plastic pneumatic tubing, compact dimensions, and ISO 14743 compliance make it a preferred choice for engineers and maintenance professionals.

Push-in pneumatic fitting with male R 1/4 in thread and 8mm tube size. Glass reinforced nylon construction with nickel finish for durability. Reliable operation across vacuum and pressure ranges from -0.9 bar to 20 bar. ISO compliant; date coded for traceability and assured reliability.

Full bore design with low leak rates; fits most pneumatic plastic tubings. Temperature range from -20°C to 80°C. Plastic body with nitrile O-rings for automatic sealing efficiency. No tools required for installation; quick push-in and disconnect operations.

Ideal for use in industrial, manufacturing, laboratory, and automation projects requiring reliable pneumatic connections. Explore more Pneumatic Fittings and industrial connectors from Legris in the EnvMart catalogue.
