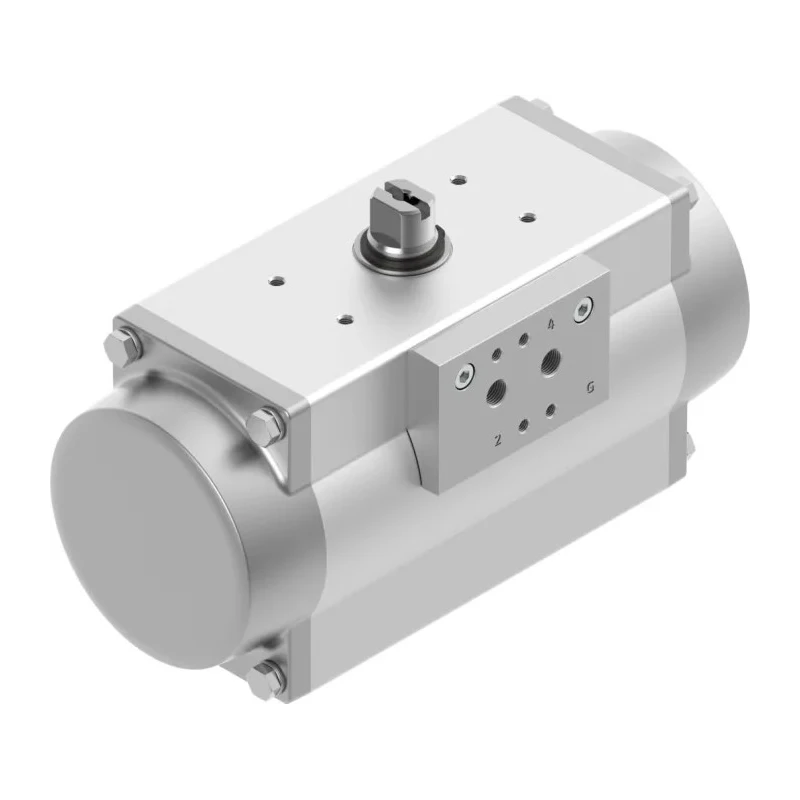

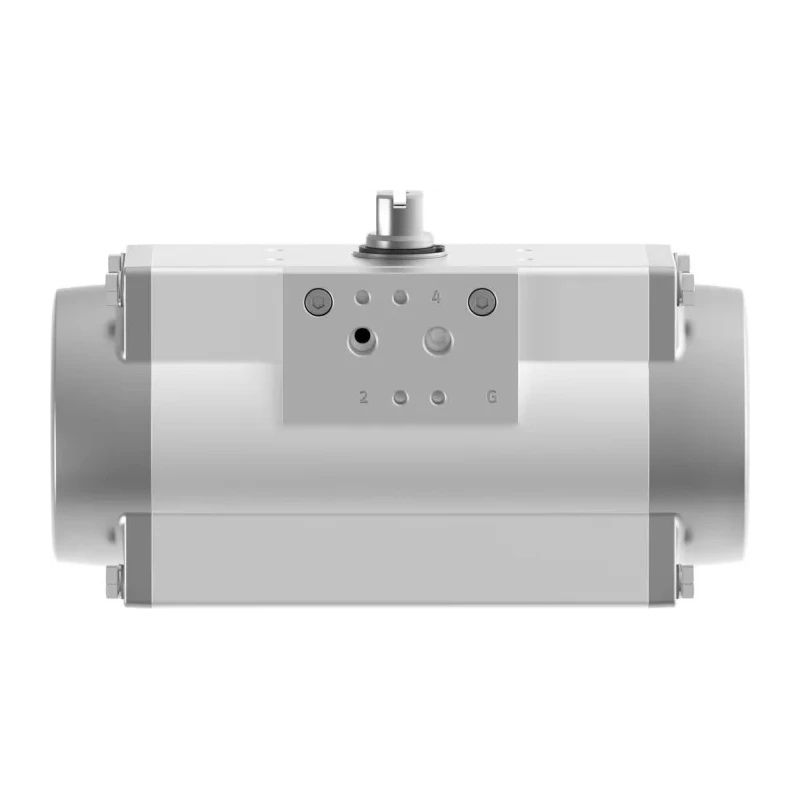

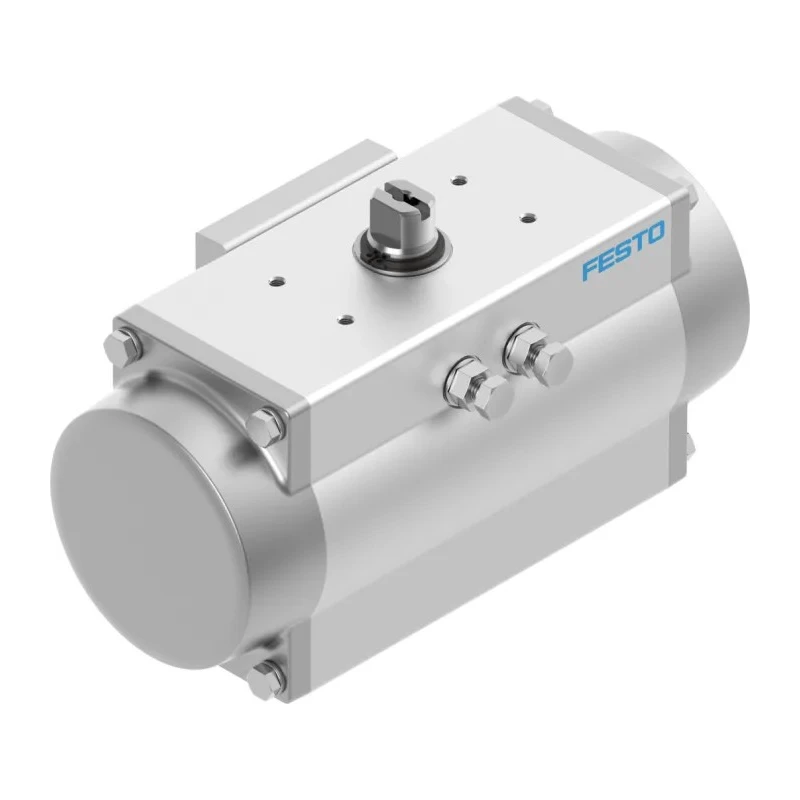

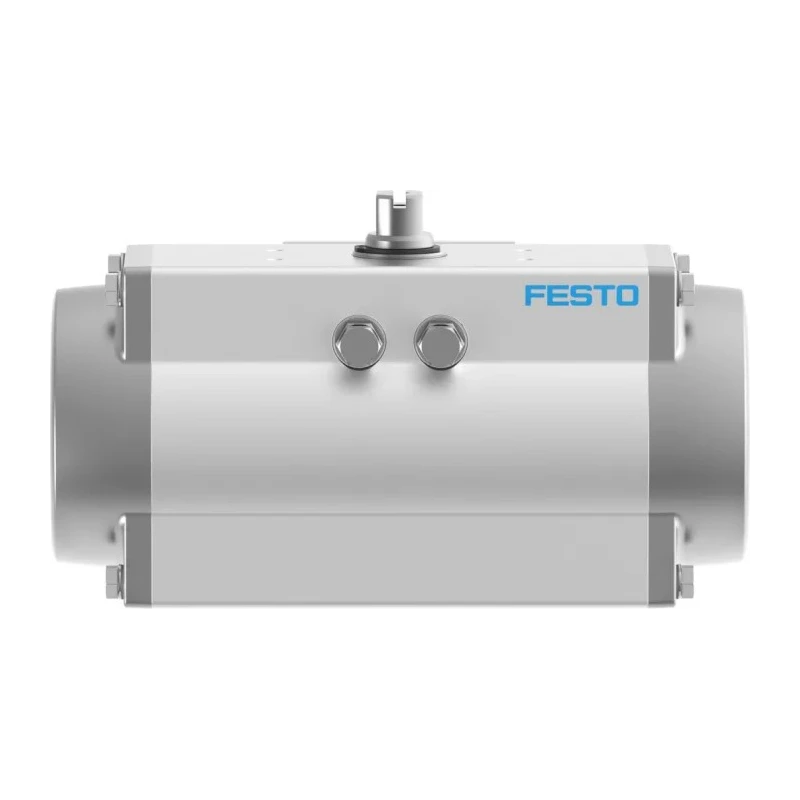

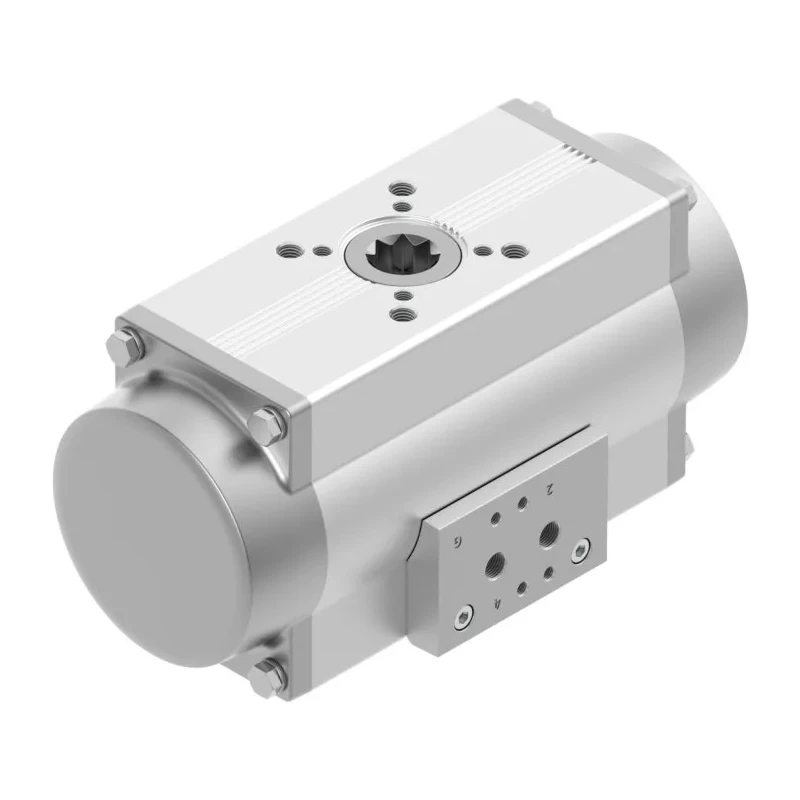

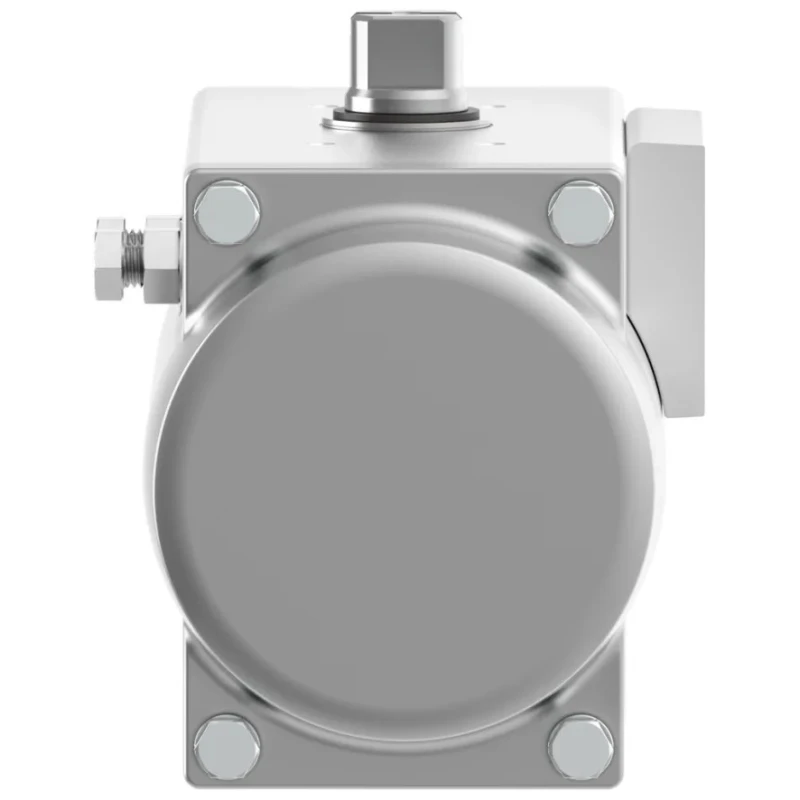

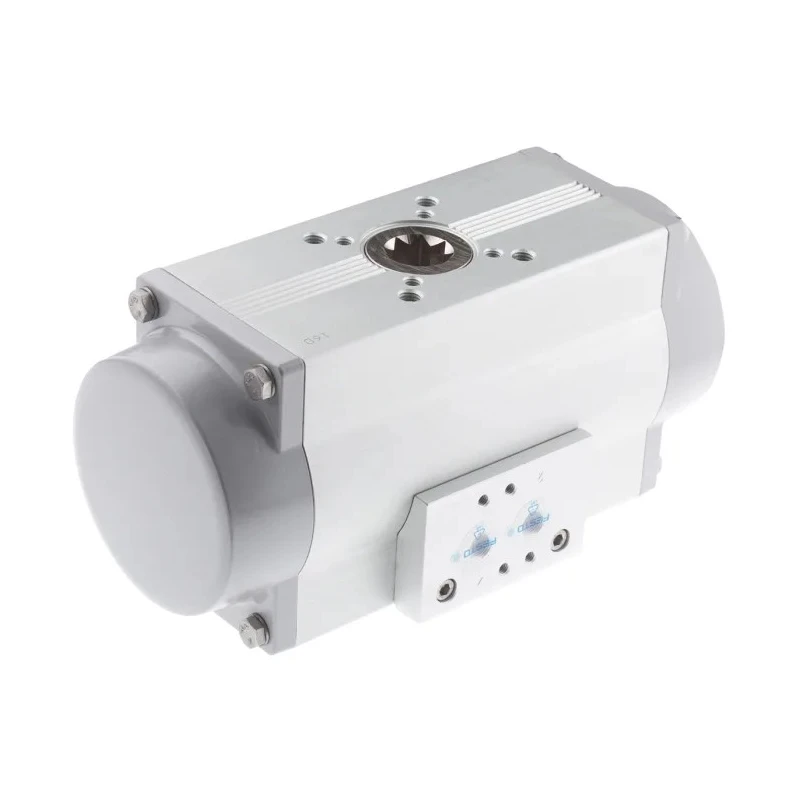

Festo Pneumatic Rotary Actuator 80mm Bore, 8 bar Maximum Operating Pressure, Single Acting, 31.4Nm DFPD-80-RP-90-RS60-F0507

Festo DFPD-80-RP-90-RS60-F0507 pneumatic rotary actuator features an 80mm bore and is engineered for single acting action with a quarter-turn 90° rotary angle. It is designed to operate at a maximum pressure of 8 bar, providing reliable torque output of up to 31.4 Nm, making it highly suitable for precise control of butterfly, ball, and air shut-off valves in industrial automation.

This actuator supports operation within a wide temperature range from -20°C to 80°C, ensuring suitability for harsh industrial environments including chemical and pharmaceutical sectors. The compact modular design allows installation in limited spaces, while the single acting spring return mechanism assures a safe default valve position upon compressed air failure.

Equipped with G 1/8 port thread size, the actuator simplifies integration into pneumatic systems, complying with ISO 8573-1:2010 for compressed air quality. The device is RoHS certified, ensuring compliance with environmental standards.

The actuator is compatible with ISO 5211 flanges, facilitating easy mounting for valve actuation applications across process control, water treatment, and manufacturing industries. Its robust construction supports reliable performance in gas and dust environments with explosion protection requirements and functional safety up to SIL 3 in special architectures.

Compact design suitable for various installation spaces. Single acting action type with spring return for safety. Maximum operating pressure of 8 bar with 31.4 Nm torque at 90° swivel. Wide operating temperature range from -20°C to 80°C.

Port thread size of 1/8 inch G for easy system integration. Certified RoHS compliant for environmental safety. Ideal for chemical, pharmaceutical, water treatment, and process control industries. Compatible with ISO 5211 flanges for valve actuation.

Compliant with compressed air quality ISO 8573-1:2010. Provides explosion protection and safety functionality up to SIL 3.

This Pneumatic Rotary Actuator from the Festo DFPD series is an optimal solution for industrial automation requiring reliable and precise valve control, especially where safety and environmental standards are critical. Explore the full range of pneumatic actuators at EnvMart for enhanced process efficiency and safety.
