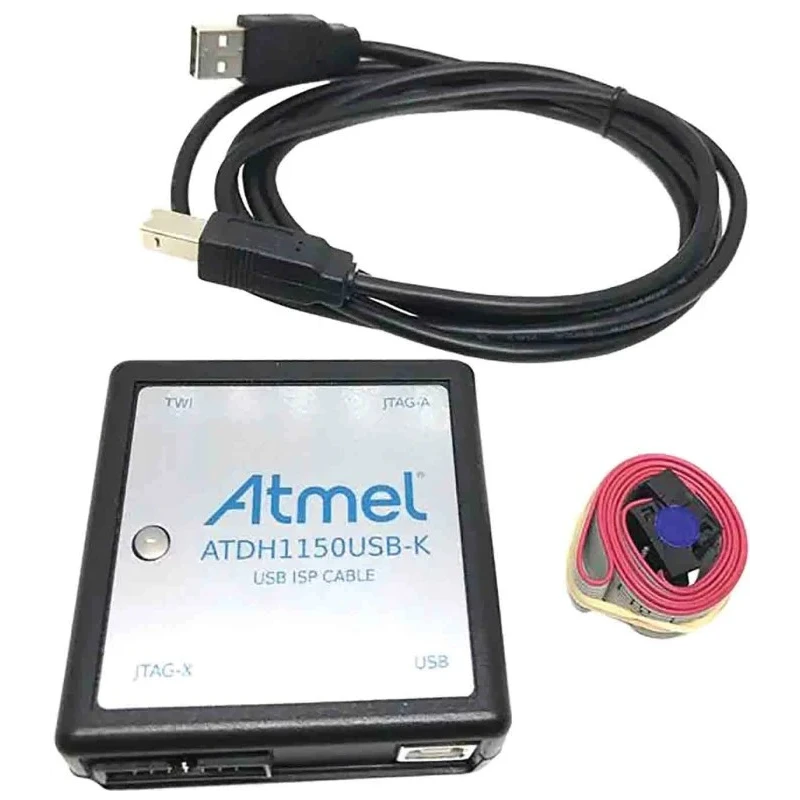

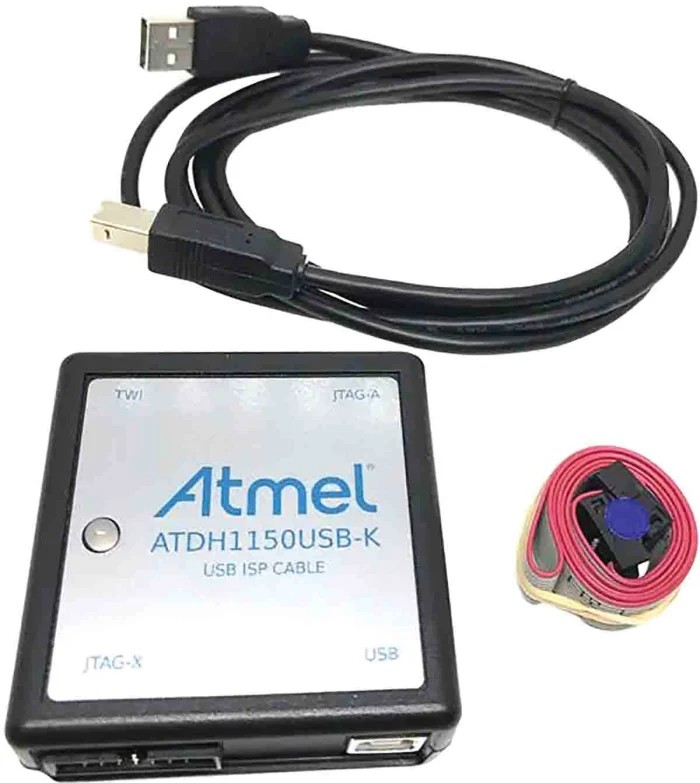

Microchip USB ISP Cable ATDH1150USB for ATF15xx CPLD Development Kit Accessory, IEEE 1149.1 JTAG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ATDH1150USB |
| Interfaces | standard USB 2 |
| Accessory Type | USB ISP CABLE |
| For Use With | ATF15xx CPLD |
| Standards/Approvals | IEEE 1149.1 (JTAG) |
Key Features
- Allows JTAG in-system programming of Atmel CPLDs using a standard USB port.
- Compatible with ATMISP Software Versions 6.6, 6.7 and 7.x.
- Supports both 10-pin and 14-pin JTAG interface headers (JTAG-A, JTAG-X).
- Operates with target systems using VCC levels of 5.0V, 3.3V, 2.5V or 1.8V.
- Interfaces with USB 2.0/3.0 ports on PC for convenient programming workflow.
- Meets IEEE 1149.1 JTAG standard for CPLD programming.
- Designed for robust and reliable programming of ATF15xx CPLD devices.
- Compact design for easy integration into development setups.
Product Description
Microchip ATDH1150USB is a USB ISP cable designed specifically as a development kit accessory for programming ATF15xx series CPLDs. The cable enables users to perform JTAG in-system programming (ISP) via a standard USB 2.0 or 3.0 port on a PC, transferring instructions seamlessly to the target chip. Supporting both 10-pin and 14-pin JTAG headers (JTAG-A and JTAG-X), it offers flexibility for a variety of programming circuit boards.
This USB ISP cable is fully compatible with ATMISP software (versions 6.6, 6.7 and 7.x), ensuring a smooth programming experience for engineers and developers. It supports multiple VCC and I/O standards including 5.0V, 3.3V, 2.5V, and 1.8V, accommodating a broad range of CPLD target systems.
The ATDH1150USB cable adheres to IEEE 1149.1 (JTAG) standards, providing a reliable and consistent programming interface for Atmel CPLDs used in industrial, laboratory, and embedded applications. Its compact structure enables easy integration into development setups, while robust electrical performance ensures consistent operation.
Typical applications span electronic component prototyping, development board setups, industrial automation, research laboratories, and educational STEM projects where programmable logic devices are deployed. The cable facilitates efficient device configuration, microcontroller and logic device programming, and rapid prototype iteration.
Its combination of compatibility, versatility and compliance makes the Microchip ATDH1150USB an essential accessory for any developer utilizing ATF15xx CPLD devices. The product meets industry requirements, supporting rigorous workflows in electronic design and manufacturing environments.
Allows JTAG in-system programming of Atmel CPLDs using a standard USB port. Compatible with ATMISP Software Versions 6.6, 6.7 and 7.x for streamlined workflow. Supports both 10-pin and 14-pin JTAG interface headers (JTAG-A, JTAG-X).
Operates with target systems using VCC levels of 5.0V, 3.3V, 2.5V or 1.8V. Interfaces with USB 2.0/3.0 ports on PC for convenient programming. IEEE 1149.1 JTAG standard compliance ensures reliability. Designed for robust and reliable programming of ATF15xx CPLD devices.
For more accessories and development solutions from Microchip, explore the Development Tool Accessories category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATDH1150USB cable allows JTAG in-system programming of Atmel CPLDs using a standard USB port, facilitating seamless programming workflows.
It is compatible with ATMISP Software Versions 6.6, 6.7, and 7.x, ensuring a smooth programming experience for users.
This cable supports both 10-pin and 14-pin JTAG interface headers, specifically JTAG-A and JTAG-X, providing flexibility for various programming circuit boards.
It operates with target systems using VCC levels of 5.0V, 3.3V, 2.5V, or 1.8V, accommodating a wide range of CPLD target systems.
The cable adheres to the IEEE 1149.1 JTAG standard, providing a reliable programming interface for Atmel CPLDs.
It interfaces with standard USB 2.0 and 3.0 ports on a PC, making it convenient for programming tasks.
The ATDH1150USB cable is manufactured in India.
It is categorized as a USB ISP cable, specifically designed as an accessory for development kits.
Typical applications include electronic component prototyping, development board setups, industrial automation, and educational STEM projects.
Its compact design allows for easy integration into development setups, facilitating efficient use in various environments.
The model number of this USB ISP cable is ATDH1150USB, which identifies it specifically for use with ATF15xx CPLDs.
It supports development tools specifically for programming ATF15xx CPLD devices, making it essential for developers in electronic design.
