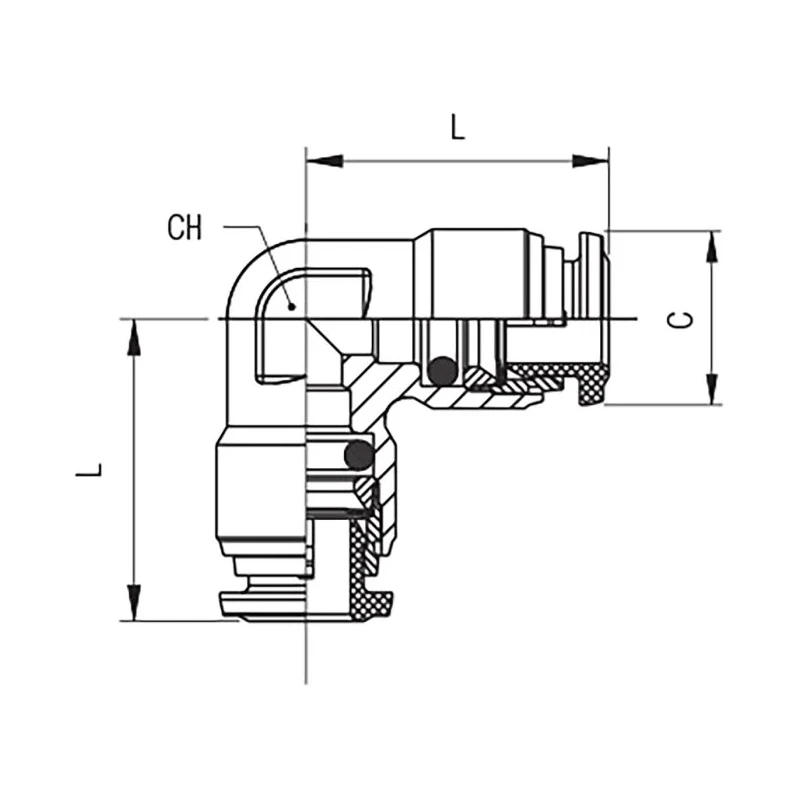

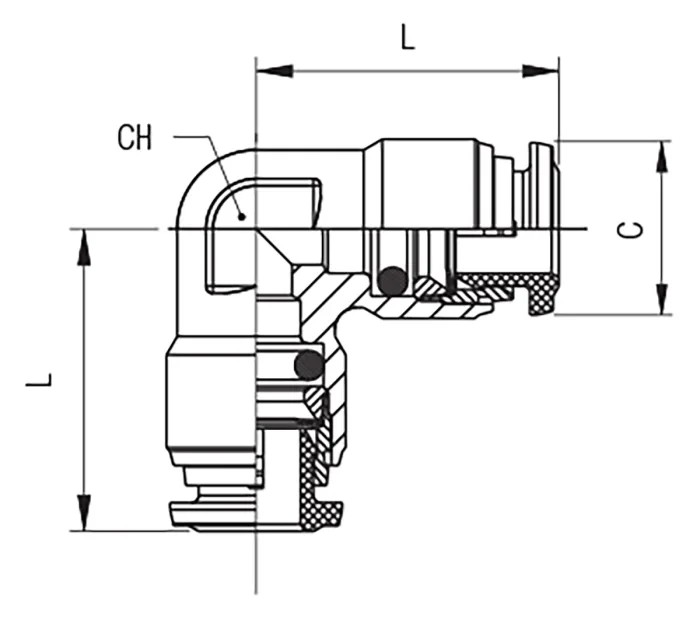

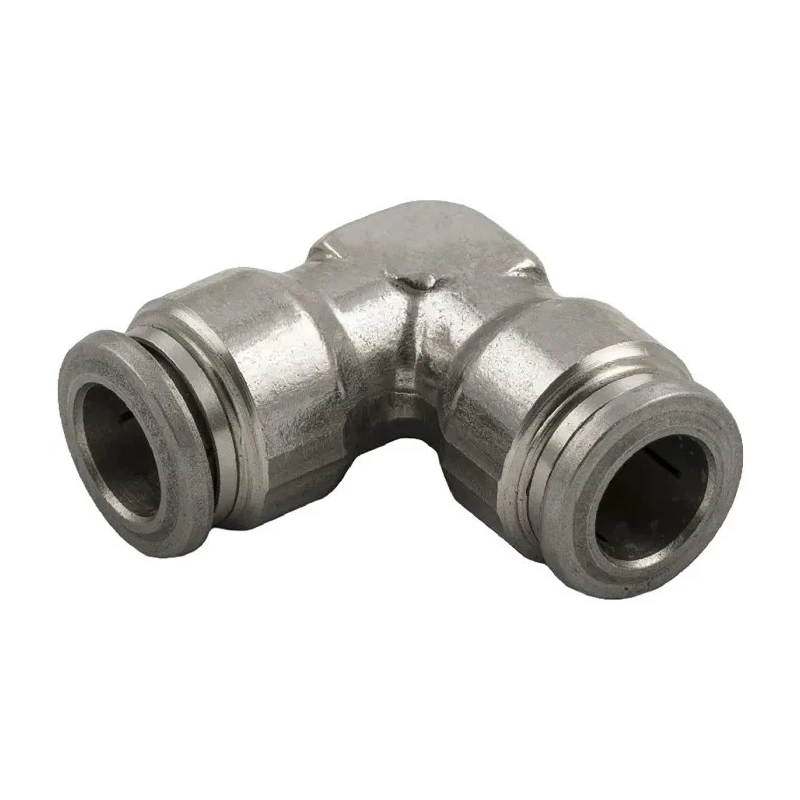

RS PRO Stainless Steel Pneumatic Elbow Fitting, Push-in 8 mm, 90° Angle, Nickel Finish 176-2173
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar |
| Model | 176-2173 |
| Finish | Nickel |
| Series | RS PRO |
| Maximum Operating Temperature | 200°C |
| Sub Type | Function Fitting |
| Minimum Operating Temperature | -15°C |
| Connection Size A | 8 mm |
| Connection Type A | Push-in |
| Standards/Approvals1907/2006 (REACH), NSF/ANSI 169, PED 2014/68/UE, ISO 14743 | 2004 |
| 1907/2006 (REACH), ISO 14743 | 2004, NSF/ANSI 169 and PED 2014/68/UE standards met |
Key Features
- Constructed from AISI 316L stainless steel for superior corrosion resistance.
- Elbow tube-to-tube adaptor provides a secure 90° connection for pneumatic systems.
- Push-in design for both 8 mm connectors enables easy installation and leak-free seal.
- Nickel finish enhances durability and chemical resistance, suitable for abrasive fluid transport.
- Certified for food-grade applications, ideal for hygienic environments.
- Rated for a maximum operating pressure of 20 bar.
- Wide operational temperature range from -15°C to 200°C.
Product Description
The RS PRO 176-2173 is a high-performance pneumatic elbow fitting formulated from robust AISI 316L stainless steel. Designed for industrial, laboratory, or food-grade pneumatic applications, this fitting provides a dependable airtight connection between two fluid lines. Its precision engineering ensures a 90° angle, forming a tube-to-tube connection via push-in mechanisms for both 8 mm ports, streamlining system assembly and minimizing installation labor.
This pneumatic adaptor has a nickel finish, elevating its resistance to corrosion and abrasion - making it a reliable choice in aggressive environments and when handling abrasive or chemical fluids. The elbow design is especially advantageous in tight spaces or where directional pipe routing is needed without risking leaks or loss of pneumatic performance.
Engineered to meet demanding industry standards, the RS PRO 176-2173 achieves certification under REACH, NSF/ANSI 169, PED 2014/68/UE, and ISO 14743:2004. Its maximum operating pressure of 20 bar and versatile temperature tolerance from -15°C to 200°C assure robust performance across a wide range of factory, chemical processing, and food production lines. The food-grade status and full chemical resistance make this fitting suitable for handling potable water, beverage lines, medical fluids, and pharmaceutical applications.
The innovative push-in connection system offers rapid assembly and reliable seal integrity, with both Connector A and Connector B specified for 8 mm tubing, matching modern pneumatic system requirements. No swivel connection is built-in, ensuring fixed orientation and stability once installed.
Common use cases include industrial pneumatic automation, food and beverage manufacturing, laboratory equipment, water treatment systems, and pharmaceutical fluid transfer setups. The fitting is also favored in situations demanding frequent cleaning, aggressive solvents, and hygiene-sensitive environments.
Browse more RS PRO pneumatic function fittings and discover high-quality industrial connectors for fluid power and automation needs in the EnvMart Hydraulic & Pneumatic Tools category.
Explore more products in our Pneumatic Fitting category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this fitting is 20 bar.
It can operate within a temperature range from -15°C to 200°C.
This model is constructed from AISI 316L stainless steel, which provides superior corrosion resistance.
It uses a push-in connection type for both 8 mm connectors, allowing for easy installation and a leak-free seal.
Yes, it is certified for food-grade applications, making it suitable for hygienic environments.
It meets several standards including REACH, NSF/ANSI 169, PED 2014/68/UE, and ISO 14743:2004.
The fitting features a 90° elbow design, which provides a secure connection between two fluid lines in tight spaces.
The RS PRO 176-2173 is manufactured in Italy.
It is suitable for industrial pneumatic automation, food and beverage manufacturing, laboratory equipment, and pharmaceutical fluid transfer setups.
Yes, it has a nickel finish that enhances its durability and chemical resistance.
The connection size for this fitting is 8 mm.
No, this model does not include a swivel connection, ensuring fixed orientation and stability once installed.
