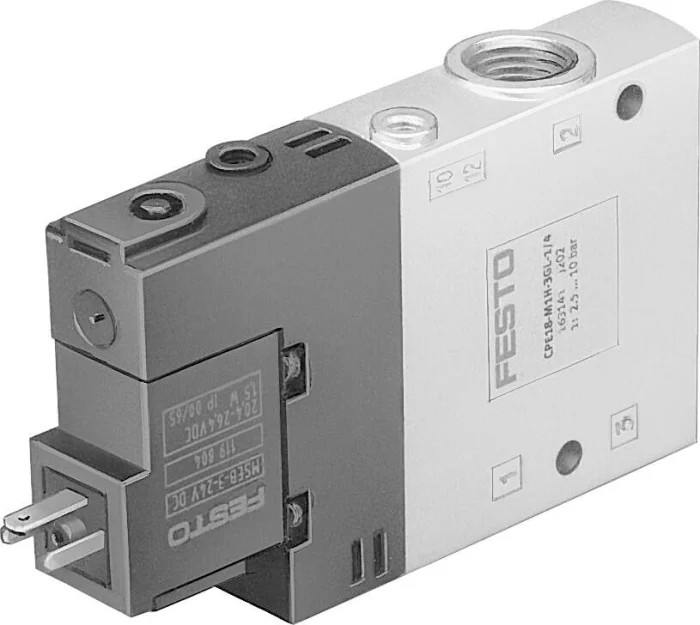

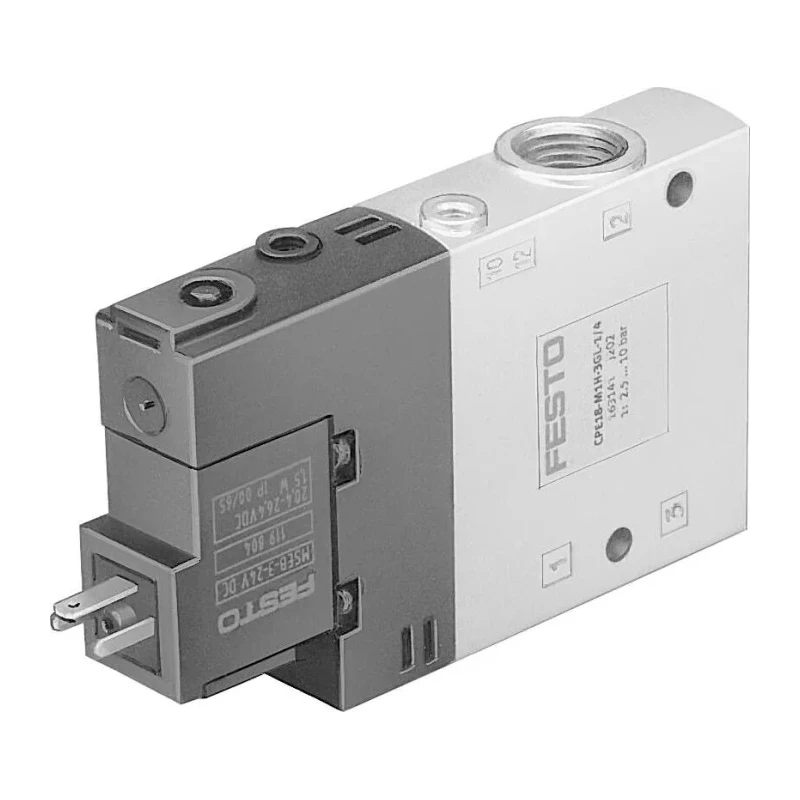

Festo Solenoid Pilot Valve, Electric, 1/4 in G Thread, 1500 L/min, Aluminium Body, CPE18-M1H-3GLS-1/4
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Model | CPE18-M1H-3GLS-1/4 |
| Width | 18mm |
| Mount Type | Through Hole |
| Series | CPE |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/4 in |
| Port Type | Threaded, Push-in |
| Number of Positions | 3 |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 1500L/min |
| Standards/Approvals | RoHS, c UL US |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0.9bar |
| Valve Function | 3/2 |
| Port Gender | Female |
| Festo Solenoid Valve - 3/2 NC Solenoid VUVG Series 24V dcBrand | Festo |
Key Features
- Designed for manifold mounting, enabling seamless integration into pneumatic control systems.
- Handles maximum operating pressure of 10 bar and flow rates up to 1500 L/min.
- Constructed with a die-cast aluminium body for impact resistance and durability.
- Features standard G 1/4 threaded ports and push-in connections for easy installation.
- Ensures reliable operation in a wide ambient temperature range from -5°C to 50°C.
- Three-port configuration and 3/2 valve function enhances versatility in industrial applications.
- NBR seals provide airtight fit and resistance to oils and fuels.
- IP65 rating offers dust and water jet resistance, suitable for challenging environments.
Product Description
The Festo CPE18-M1H-3GLS-1/4 Solenoid Pilot Valve is a high-performance pneumatic valve engineered for electric actuation, enabling precise regulation and swift response within automation and industrial environments. As part of the G CPE Series, it supports manifold mounting and integrates directly onto control rails, streamlining assembly and reducing installation time.
Featuring a robust die-cast aluminium body, this solenoid valve delivers excellent impact resistance and mechanical stability, making it a suitable choice for applications where durability is required. The valve is equipped with a standard G 1/4 threaded connection and push-in port, ensuring compatibility with a broad range of pneumatic system layouts. NBR seals within the construction provide both an airtight fit and assured resistance to oils, fuels, and environmental contaminants.
Engineered for a three-port, 3/2 function design, the valve allows for flexible operation within pneumatic circuits, and can handle maximum operating pressures up to 10 bar and flow rates up to 1500 L/min, supporting heavy-duty equipment and demanding workflows. The device switches off in 18 ms and on in 28 ms, offering rapid actuation for processes where responsiveness is critical.
The operating temperature range spans from -5°C to 50°C, supporting stable functioning across various climates and industrial conditions. With an IP65 rating, it is protected against dust ingress and low-pressure water jets, making it suitable for environments like food and beverage production, automotive manufacturing, mining, and material handling.
The solenoid pilot valve's through-hole mounting simplifies installation on manifold rails, and its three-position configuration can accommodate complex pneumatic control schemes. This product is applicable in industries such as automotive, mining, material handling, and other automated process lines where controlled compressed air delivery is essential.
Explore the Festo valve range and other premium solenoid solutions in the Solenoid Valves category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It can handle flow rates up to 1500 L/min.
The body of this valve is constructed from die-cast aluminium, providing impact resistance and mechanical stability.
It features standard G 1/4 threaded ports and push-in connections for easy installation.
The operating temperature range spans from -5°C to 50°C.
This valve has three ports and operates as a 3/2 valve, enhancing its versatility in pneumatic applications.
The width of this model is 18 mm.
The minimum pilot pressure required for this valve is 0.9 bar.
This model complies with RoHS and c UL US standards.
It is applicable in industries such as automotive, mining, material handling, and other automated process lines.
The valve switches off in 18 ms and on in 28 ms, allowing for rapid actuation.
It supports through-hole mounting, simplifying installation on manifold rails.
