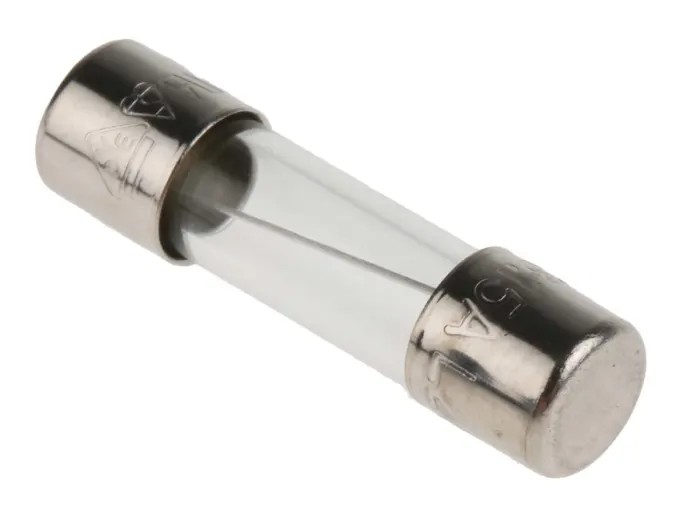

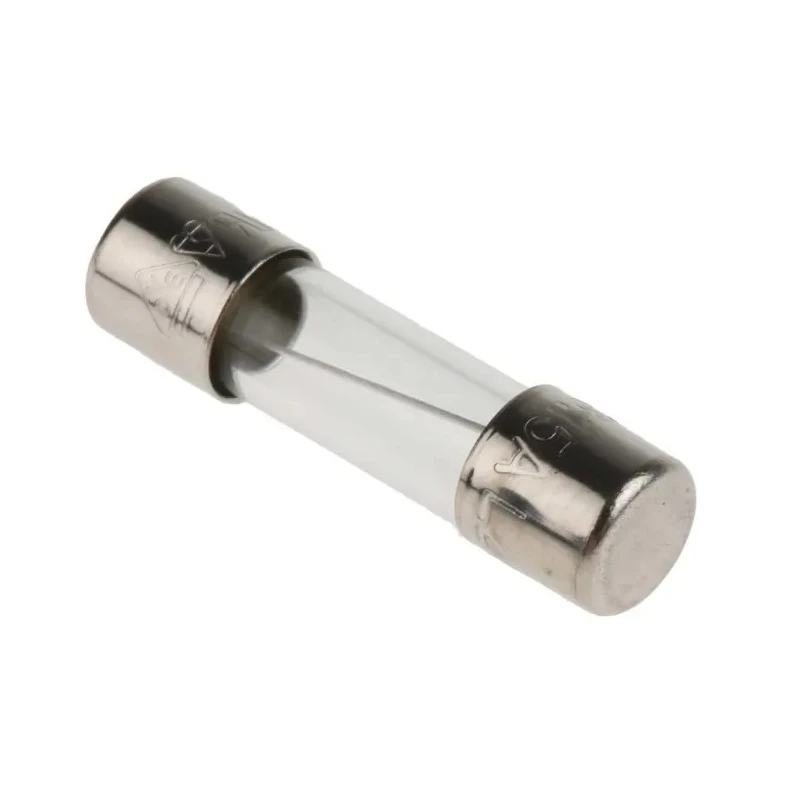

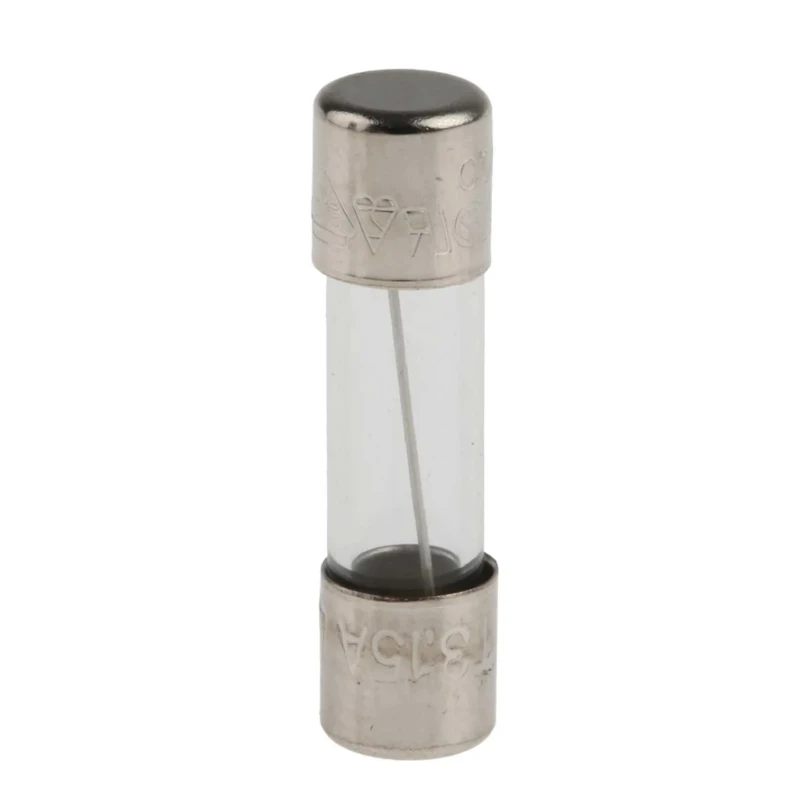

RS PRO Glass Cartridge Fuse 3.15A 250V T Time Delay 5 x 20 mm VBS Series 563-621
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | RS PRO |
| Body Material | Glass |
| Model | 563-621 |
| Overall Length | 20mm |
| Current Rating | 3.15A |
| Series | VBS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Breaking Capacity | Low |
| Standards/Approvals | VDE, CSA, RoHS, UL |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| RS PRO Cartridge FuseBrand | RS PRO |
| 20MM FUSES S/D 3.15ABrand | NEUTRAL |
| Schurter 3.15A F Glass Cartridge Fuse, 5 x 20 mmBrand | Schurter |
| Eaton 3.15A T Glass Cartridge Fuse, 5 x 20 mmBrand | Eaton |
Key Features
- Rated at 3.15A and 250V AC for reliable overcurrent protection.
- Standard 5 x 20 mm cartridge size for widespread compatibility in electrical devices.
- Glass body construction allows for quick visual inspection of fuse status.
- T (time delay/anti-surge/slow blow) characteristic tolerates short inrush currents.
- Low breaking capacity ensures protection without catastrophic damage to equipment.
- Suitable for board and panel protection in industrial, commercial, and residential applications.
- Operating temperature range from minus 55°C to plus 125°C for robust environmental endurance.
- Certified to VDE, CSA, RoHS, and UL standards for international acceptance.
Product Description
The RS PRO Glass Cartridge Fuse with model 563-621 is a high-quality protection device designed for safeguarding electronic circuits from overcurrents and short circuits. With a current rating of 3.15A and a voltage rating of 250V AC, this fuse is ideal for a broad spectrum of low-voltage electrical devices and installations.
Constructed with a durable glass body, the fuse measures 5 x 20 mm, a globally recognized standard that ensures compatibility with a wide range of fuse holders in both panel-mount and board-mount configurations. The transparent enclosure not only contributes to electrical insulation but also allows for clear visual inspection, making maintenance and troubleshooting much easier and more efficient.
Featuring a 'T' (time delay or slow blow) speed characteristic, this cartridge fuse can tolerate short-duration inrush currents that are common in devices with motors or transformers while still providing reliable circuit protection in the event of sustained overcurrent. Its low breaking capacity design means that, in the event of a fault, the fuse will open the circuit safely without causing secondary damage to nearby components, making it suitable for non-critical circuits where lower interrupt rating is acceptable.
The 563-621 fuse supports a wide operating temperature range from - 55°C to 125°C, ensuring stable performance under demanding environmental conditions. Compliance with multiple international safety and quality standards, including VDE, CSA, RoHS, and UL, means this fuse can be specified confidently into industrial, commercial, residential, and automotive power applications worldwide.
Whether used in control panels, HVAC equipment, consumer electronics, or process automation systems, the RS PRO glass cartridge fuse provides a reliable, cost-effective solution for circuit protection. Its VBS series lineage ensures consistent manufacturing quality and trusted performance across applications.
Select RS PRO fuses for reliable overcurrent protection in your installations. Explore more fuses and circuit protection devices in the Electrical Fuse category and experience industry-leading safety with RS PRO solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse has a current rating of 3.15A.
It supports a voltage rating of 250V AC.
The fuse measures 5 x 20 mm in size.
It has an operating temperature range from -55°C to 125°C.
This fuse features a low breaking capacity design.
It has a time delay characteristic, also known as slow blow.
The fuse is constructed with a glass body material.
It is certified to VDE, CSA, RoHS, and UL standards.
It is suitable for board and panel protection in industrial, commercial, and residential applications.
Yes, its time delay characteristic allows it to tolerate short inrush currents.
The fuse is manufactured in Taiwan.
Yes, its standard size of 5 x 20 mm ensures compatibility with a wide range of fuse holders.
