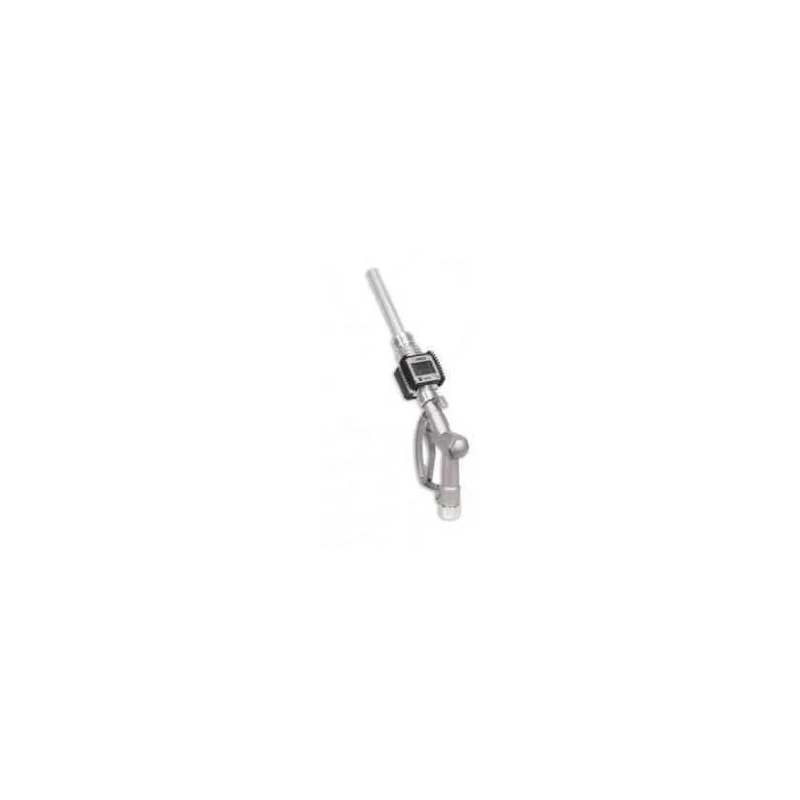

Groz Metered Fuel Control Nozzle 3/4 Inch NPT, FM/20/FCN/3-4/N, Digital Fuel Meter, 1.5V Battery, 5 - 75 LPM, IP55,
Specifications
| Country of Origin | India |
|---|---|
| Repeatability | ± 0.30 % |
| Accuracy | ± 1% |
| Brand | Groz |
| Working Pressure | Max: 50 PSI |
| Flow Rate | 5-75 LPM |
| Working Temperature | Max: 0 to 50 deg C |
| Item Code | FM/20/FCN/3-4/N |
| Protection Class | IP 55 |
| Viscosity | 5.35 cst |
| Least Count | 0.001 Units |
| Items in Pack | 1 Piece |
| Threads | Inlet: 3/4 inch NPT (F) |
| Notes | Unboxing Video is Mandatory for any Damage or Leakage Product Product once sold will not be returned |
| Battery Voltage | 1.5 V |
| Threads Inlet | 3/4 inch NPT (F) |
| Working Pressure Max | 50 PSI |
| Working Temperature Max | 0 to 50 deg C |
| Max. Resettable Batch Totalizer | 99,999 L |
| Max. Non Resettable Batch Totalizer | 9,99,999 L |
Key Features
- Features a built-in digital fuel meter for accurate measurement.
- Supports a flow rate range of 5 to 75 litres per minute.
- Constructed with die-cast aluminium nozzle and polyamide turbine mechanism for durability.
- Includes easy user recalibration option and measures in multiple units.
- Offers IP55 protection class for safety in challenging environments.
- Manual control with inlet swivel for ergonomic fuel handling.
- Equipped with a resettable batch totalizer up to 99,999 litres and a non-resettable batch totalizer up to 9,99,999 litres.
- Works on a 1.5V battery for reliable operation.
Product Description
The Groz Metered Fuel Control Nozzle is designed for accurate and controlled fuel dispensing in industrial applications. It features a 3/4 inch NPT inlet compatible with standard fuel delivery systems, ensuring easy integration into existing setups. The integrated digital meter allows users to monitor fuel flow precisely, supporting a wide measurement range (litres, quarts, pints, and gallons) for operational flexibility across industries.
Engineered for durability, the nozzle is constructed with a die-cast aluminium body and incorporates a polyamide turbine measuring mechanism. Its robust build provides reliability during daily use, and the IP55 protection class guards against dust and water ingress in harsh environments. The built-in swivel at the inlet enhances maneuverability for efficient fueling.
The device supports a flow rate from 5 to 75 LPM, making it suitable for various commercial and industrial fueling tasks. Easy user recalibration ensures continued measurement accuracy, while the least count of 0.001 units allows precise control over dispensed volumes. The digital batch totalizer is both resettable and non-resettable, helping track both single operations and cumulative fuel throughput for inventory management and process auditing.
Operating on a 1.5V battery, the nozzle is maintenance-friendly and suitable for mobile and fixed fueling stations. Repeatability of ± 0.3% and accuracy of ± 1% further boost user confidence. The device is rated for use at working pressures up to 50 PSI and temperatures from 0 to 50°C, making it adaptable to diverse site conditions.
Industrial use cases include fuel management in logistics, mining, construction, transportation, manufacturing plants, and fuel depots. This nozzle is especially valuable where reliable measurement, traceability, and ergonomics are critical.
Built-in digital meter with easy-to-read display. Flow rate range of 5 - 75 LPM for flexible application. Robust die-cast aluminium and polyamide mechanism construction. IP55 protection for enhanced safety. User recalibration feature for ongoing accuracy.
Ergonomic handle with inlet swivel. Batch totalizers for operational tracking. Battery operated for mobility and convenience. Explore the full range of Groz fuel handling equipment and industrial dispensing solutions on EnvMart for performance-driven products.
Explore more products in our Fuel Handling System category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Groz Metered Fuel Control Nozzle supports a flow rate range of 5 to 75 litres per minute (LPM).
This model has an accuracy of ± 1%, ensuring reliable measurement during fuel dispensing.
The maximum working pressure for this nozzle is 50 PSI.
It operates on a 1.5V battery, providing reliable power for its digital functions.
The nozzle is constructed with a die-cast aluminium body and a polyamide turbine mechanism for durability.
The least count of this model is 0.001 units, allowing for precise control over dispensed volumes.
This unit has an IP55 protection class rating, safeguarding it against dust and water ingress.
The inlet thread of this nozzle is 3/4 inch NPT (F), compatible with standard fuel delivery systems.
The nozzle is rated for operation at temperatures from 0 to 50 degrees Celsius.
It includes a resettable batch totalizer up to 99,999 litres and a non-resettable batch totalizer up to 9,99,999 litres.
This nozzle is suitable for fuel management in logistics, mining, construction, transportation, manufacturing plants, and fuel depots.
The nozzle features an easy user recalibration option to ensure ongoing measurement accuracy.
