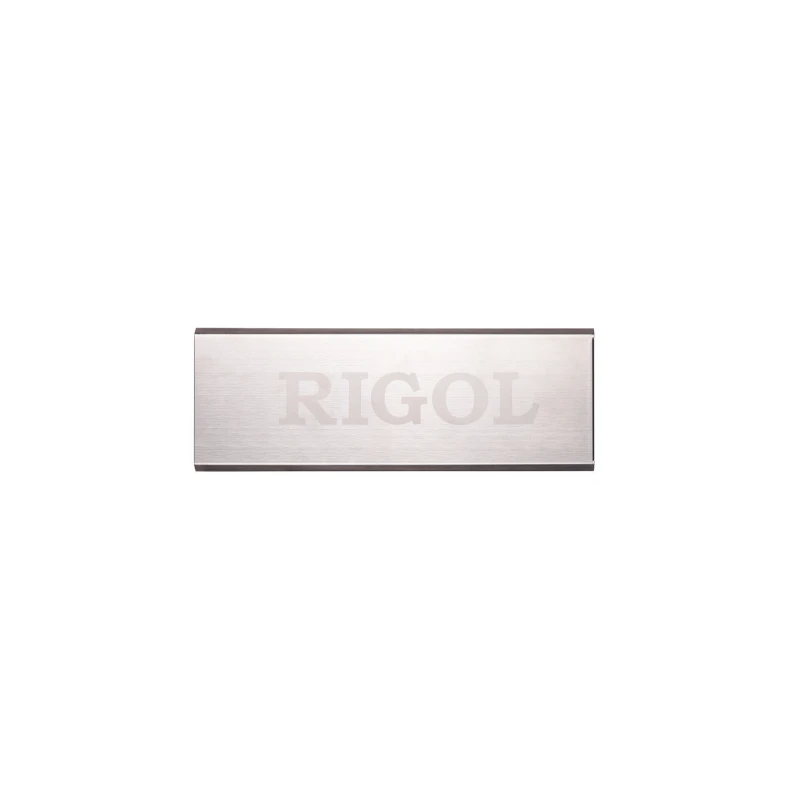

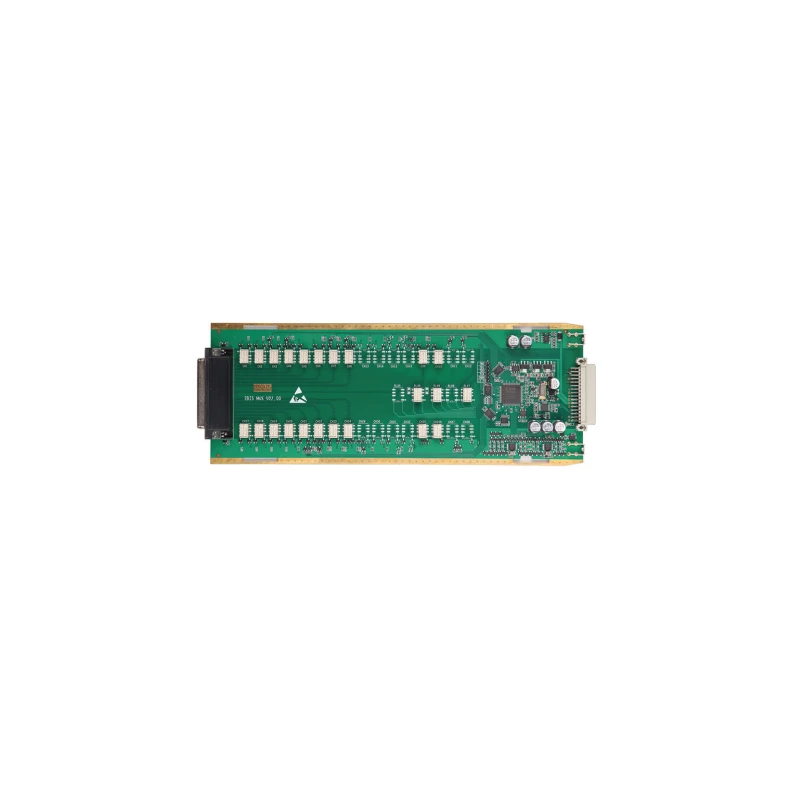

RIGOL MC3648 4×8 Matrix Switch Module
Specifications
| Country of Origin | India |
|---|---|
| Brand | Rigol |
| Operating Temperature | 0 to 55 ℃ |
| Model | MC3648 |
| Isolation | Greater than 10 GΩ |
| Bandwidth | 1 MHz |
| Terminal Block | M3TB48 |
| Maximum input current | 1 Arms |
| Maximum Input Voltage | 300 Vrms |
| Product Condition | New |
| MPN | MC3648 |
| Open/Close Speed | 200 Ch/s |
| Offset Voltage | 5 μV |
| Initial Closed Channel Resistance | Less than 1 Ω |
| Switch Life | 100 million operations |
| Matrix Configuration | 4×8 two-wire |
| Number of Cross Points | 32 |
| Maximum Switching Power | 50 VA |
Key Features
Rigol MC3648 4×8 matrix switch module for advanced signal routing in laboratory automation and testing applications.
- Supports a 4×8 two-wire matrix configuration.
- Offers 32 cross points for flexible signal routing.
- Features a fast open/close speed of 200 channels per second.
- Handles maximum input voltages up to 300 Vrms and current up to 1 Arms.
- Delivers a maximum switching power of 50 VA for reliable performance.
- Equipped with a terminal block: M3TB48 for secure connections.
- 1 MHz bandwidth ensures minimal signal loss in high-frequency testing.
- Provides low offset voltage of 5 μV and channel resistance less than 1 Ω.
- High isolation greater than 10 GΩ ensures signal integrity.
- Rated for a long operational life of up to 100 million switching operations.
Product Description
Rigol MC3648 4×8 matrix switch module is designed for automated and high-density test environments demanding flexible cross-point signal routing. It features 32 cross points, enabling simultaneous connections from multiple inputs to multiple outputs, ideal for complex signal matrixing in modern laboratories and industrial test systems.
- 4×8 two-wire matrix capable of handling 300 Vrms and 1 Arms signals.
- Open/close speed up to 200 channels per second for rapid switching operations.
- Supports high-frequency signals with a 1 MHz bandwidth specification.
- Low offset voltage (5 μV) and channel resistance (<1 Ω) for precision measurements.
- Maximum switching power of 50 VA enhances versatility across test setups.
- Enhanced isolation (>10 GΩ) and rugged operation up to 100 million cycles.
- Operates reliably in temperatures from 0℃ to 55℃, suitable for lab and industrial use.
- Equipped with a secure M3TB48 terminal block for rapid and safe wiring.
Typical applications include automated test equipment (ATE), industrial automation, electronics quality control, and research laboratories where multi-channel signal path management is required.
Explore more products in the Lab Equipment & Instruments category or browse other Rigol solutions on EnvMart to find the best fit for your laboratory or industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MC3648 can handle a maximum input voltage of 300 Vrms.
The Rigol MC3648 features 32 cross points for flexible signal routing.
The bandwidth of the Rigol MC3648 is 1 MHz, ensuring minimal signal loss during high-frequency testing.
The open/close speed of the Rigol MC3648 is up to 200 channels per second.
The operating temperature range for the Rigol MC3648 is from 0 to 55 ℃.
The Rigol MC3648 is rated for a long operational life of up to 100 million switching operations.
The Rigol MC3648 has an isolation rating greater than 10 GΩ, ensuring signal integrity.
The Rigol MC3648 is equipped with an M3TB48 terminal block for secure connections.
The maximum switching power of the Rigol MC3648 is 50 VA, enhancing its versatility across test setups.
The Rigol MC3648 is manufactured in India.
