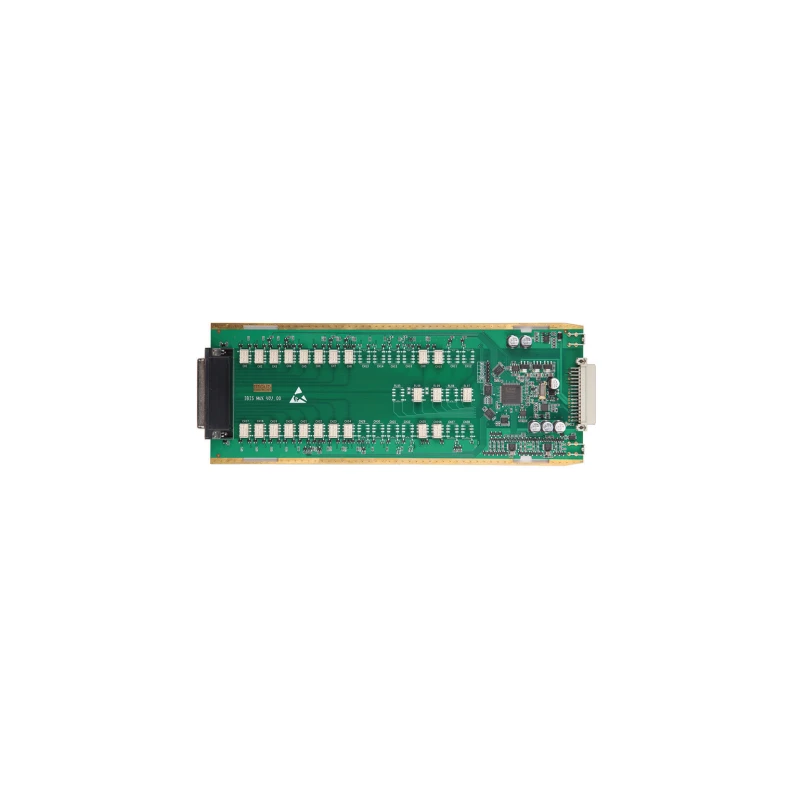

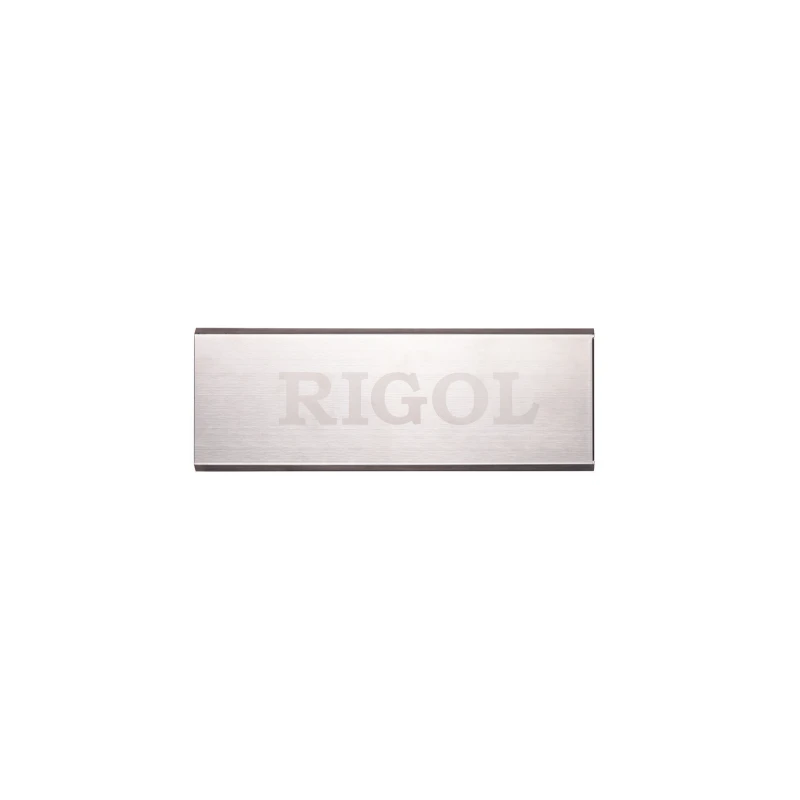

RIGOL MC3324 Mixed Multiplexer Module

Name: RIGOL MC3324 Mixed Multiplexer Module
Brand: Rigol
SKU: 73476
Price: 521.19 USD
Availability: InStock



Category Data Loggers Brand Rigol

Specifications

Country of Origin	India
Brand	Rigol
Operating Temperature Range	0 to 55 °C
Product Type	Mixed Multiplexer Module
Model	MC3324
Isolation	Greater than 10 GΩ
Compatibility	MC3065
Bandwidth	1 MHz
Maximum Power	50 VA
Scanning Speed	60 channels/sec
Terminal Block	M3TB24
Maximum Input Voltage	300 Vrms
Product Condition	New
MPN	MC3324
Open/Close Speed	200 channels/sec
Offset Voltage	5 μV
Initial Closed Channel Resistance	Less than 1 Ω
Voltage Channels	20
Current Channels	4
Voltage Channel Modes	2-wire / 4-wire
Current Channel Current (max)	2 Arms
Voltage Channel Current (max)	1 Arms

Key Features

Rigol MC3324 Mixed Multiplexer Module provides 20 voltage channels and 4 current channels for precise automated testing.

Features 20 independent voltage channels with selectable 2-wire or 4-wire measurement modes.
Includes 4 dedicated current channels, ideal for versatile signal switching needs.
Supports maximum input of 300 Vrms and channel current up to 2 Arms for robust performance.
Delivers high scanning speeds up to 60 channels per second and rapid open/close switching at 200 channels per second.
Bandwidth up to 1 MHz ensures compatibility with fast signals in advanced measurement setups.
Initial closed channel resistance less than 1 Ω for accurate, low-loss signal transfer.
Voltage channels support up to 1 Arms; current channels support up to 2 Arms.
Provides exceptional isolation greater than 10 GΩ for safe and reliable operation.
Low offset voltage of just 5 μV promotes high measurement accuracy.
Terminal block M3TB24 and compatibility with MC3065 systems included.
Compact design well-suited for integration into automated test environments.

Product Description

Rigol MC3324 Mixed Multiplexer Module is a versatile, high-performance switching module engineered for automated test and measurement systems, offering 20 voltage channels and 4 current channels within a single compact design. It is ideal for applications requiring both voltage and current signal routing across industrial, laboratory, and manufacturing environments.

The MC3324 supports selectable 2-wire and 4-wire modes for voltage channels, plus four dedicated high-current channels. This ensures you can manage a diverse range of signal measurements and switching scenarios. Capable of handling up to 300 Vrms input, the module supports currents up to 2 Arms (on current channels) and 1 Arms (on voltage channels), delivering robust and flexible measurement capability.

Features 20 voltage channels with selectable measurement modes, and 4 dedicated current channels for advanced functionality.
Enables scanning speeds of 60 channels per second, and rapid open/close switching at 200 channels per second—ideal for time-critical automated testing routines.
Offers 1 MHz bandwidth for capturing fast transients and supporting modern measurement equipment.
Low offset voltage (5 μV) and initial closed channel resistance less than 1 Ω ensure low measurement error.
High isolation (>10 GΩ) enhances signal integrity and safety during parallel signal measurements.
Maximum input of 300 Vrms and 50 VA overall power handling enable use in demanding test benches.

Engineered with a terminal block M3TB24 and fully compatible with MC3065 mainframes, the MC3324 is simple to install and configure. The operational temperature range of 0℃ to 55℃ allows for deployment in robust industrial or laboratory settings.

Common industrial applications include use in automated data acquisition, product validation, electrical parameter testing, and laboratory R&D. Industries such as electronics, automotive, aerospace, and process control benefit from its performance and reliability.

For more options in test and measurement instrumentation or to explore related Rigol modules, browse the full category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The Rigol MC3324 Mixed Multiplexer Module supports a maximum input voltage of 300 Vrms, making it suitable for demanding testing applications.

The MC3324 features 20 independent voltage channels and 4 dedicated current channels, allowing for versatile signal routing and measurement.

The MC3324 can scan at speeds of up to 60 channels per second, with rapid open/close switching at 200 channels per second, ideal for automated testing.

The MC3324 supports selectable 2-wire and 4-wire measurement modes for its voltage channels, enhancing measurement flexibility.

The MC3324 has a bandwidth of up to 1 MHz, ensuring compatibility with fast signals in advanced measurement setups.

The initial closed channel resistance of the MC3324 is less than 1 Ω, which helps in ensuring accurate and low-loss signal transfer.

Yes, the MC3324 is compatible with MC3065 systems, making it easy to integrate into existing setups.

The operating temperature range for the MC3324 is from 0 to 55 °C, suitable for various industrial and laboratory environments.

The MC3324 provides exceptional isolation greater than 10 GΩ, ensuring safe and reliable operation during measurements.

You can purchase the Rigol MC3324 Mixed Multiplexer Module through our online store. For inquiries or more information, please contact our sales team.
