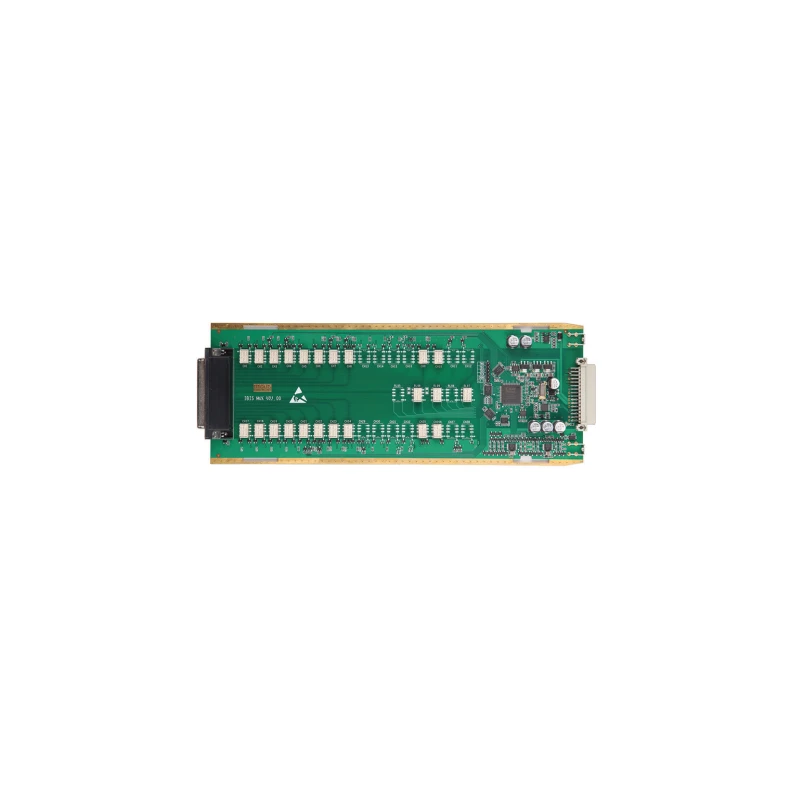

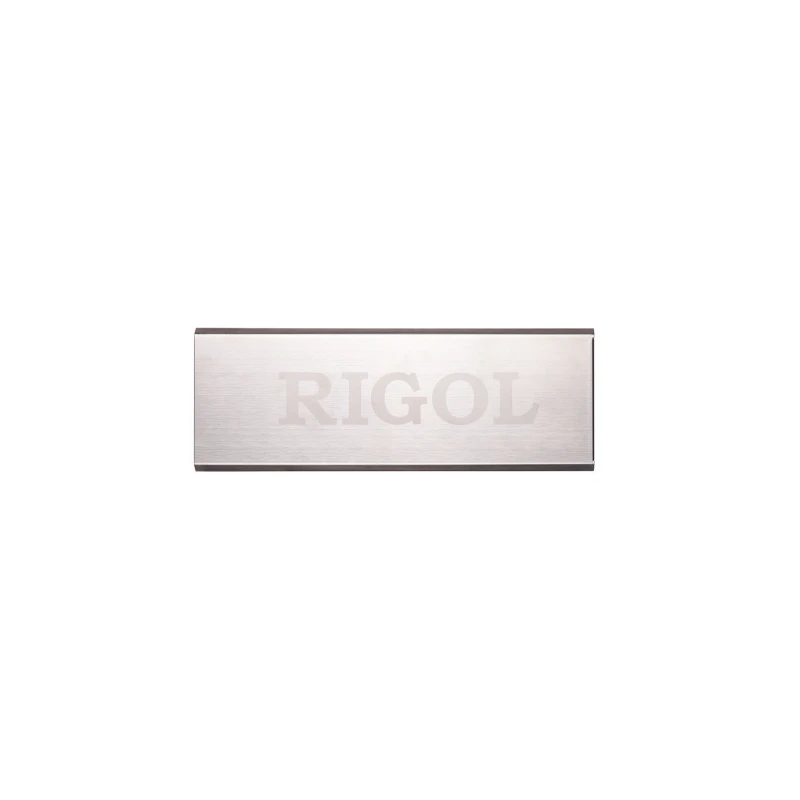

RIGOL MC3164 64-Channel Single-Ended Multiplexer
Specifications
| Country of Origin | India |
|---|---|
| Brand | Rigol |
| Operating Temperature | 0 to 55 °C |
| Model | MC3164 |
| Isolation | Greater than 10 GΩ |
| Compatibility | MC3065 |
| Bandwidth | 1 MHz |
| Configuration | Single-Ended, 1-Wire |
| Maximum Power | 50 VA |
| Scanning Speed | 60 Ch/s |
| Terminal Block | M3TB64 |
| Maximum input current | 1 Arms |
| Maximum Input Voltage | 300 Vrms |
| Product Condition | New |
| MPN | MC3164 |
| Open/Close Speed | 200 Ch/s |
| Offset Voltage | 5 μV |
| Initial Closed Channel Resistance | Less than 1 Ω |
| Multiplexer Channels | 64 |
Key Features
Rigol MC3164 64-channel single-ended multiplexer module designed for high-channel-count signal routing in automated test environments.
- Supports 64 single-ended channels for extensive signal switching tasks.
- 1-wire configuration maximizes compatibility with test scenarios.
- Handles maximum input voltage up to 300 Vrms and current up to 1 Arms.
- Open/close operation speeds up to 200 Ch/s for efficient signal routing.
- Supports scanning speed up to 60 Ch/s for rapid sequential switching.
- Offers 1 MHz bandwidth for broad signal integrity.
- Features high isolation greater than 10 GΩ and offset voltage as low as 5 μV.
- Compatible terminal block M3TB64 and supports integration with MC3065 systems.
- Operating temperature range from 0°C to 55°C ensures flexible installation.
- Initial closed channel resistance is less than 1 Ω for excellent connection reliability.
Product Description
Rigol MC3164 64-Channel Single-Ended Multiplexer Module is specially designed for high-density signal switching in laboratory and industrial test automation applications. The module offers 64 single-ended channels in a compact form factor, supporting 1-wire configuration for versatile signal routing.
- 64-channel configuration enables simultaneous or sequential routing of multiple signals, ideal for test benches, automated measurement setups, and signal distribution systems.
- Rated for up to 300 Vrms input and 1 Arms current, making it suitable for moderate to high-voltage laboratory environments.
- High operation speeds with scanning up to 60 channels per second and open/close up to 200 channels per second ensure fast test throughput.
- 1 MHz bandwidth allows handling of a wide array of signal types, including analog and digital applications.
- High isolation performance (greater than 10 GΩ) and low offset voltage (5 μV) provide reliable, high-fidelity signal switching.
- Initial closed channel resistance of less than 1 Ω maintains signal quality and reduces losses.
- Equipped with terminal block M3TB64 for organized wiring and is fully compatible with Rigol’s MC3065 system for flexible integration.
The module operates across a 0°C to 55°C temperature range, ensuring stable performance in both laboratory and industrial automation environments. Typical use cases include automated test equipment (ATE), data acquisition systems, signal multiplexing for research labs, and production line system integration. Choose the Rigol MC3164 multiplexer for reliable performance and scalability in demanding test setups.
For more signal switching, measurement, and modular instrumentation solutions, browse the full range of Rigol test equipment and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MC3164 can handle a maximum input voltage of 300 Vrms.
The MC3164 supports 64 single-ended channels for extensive signal switching tasks.
The scanning speed of the Rigol MC3164 is up to 60 channels per second.
The MC3164 offers a bandwidth of 1 MHz, suitable for a wide array of signal types.
Yes, it is compatible with the MC3065 system and uses the M3TB64 terminal block for organized wiring.
The operating temperature range for the MC3164 is from 0°C to 55°C.
The initial closed channel resistance is less than 1 Ω, ensuring excellent connection reliability.
The MC3164 can open and close channels at speeds up to 200 channels per second.
The MC3164 features high isolation greater than 10 GΩ, providing reliable signal switching.
The MC3164 is ideal for automated test equipment, data acquisition systems, and signal multiplexing in research labs.
