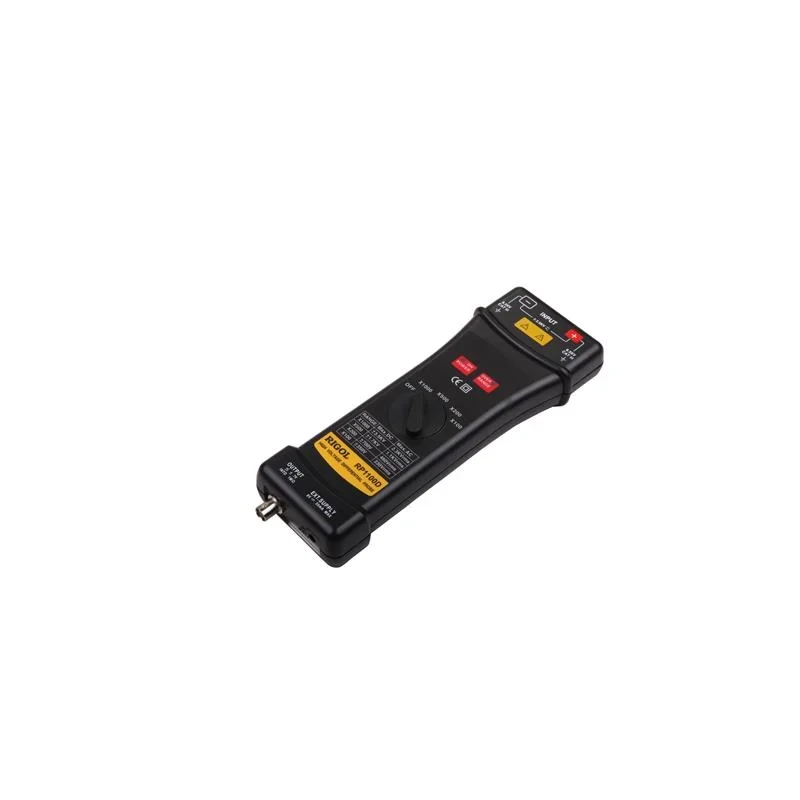

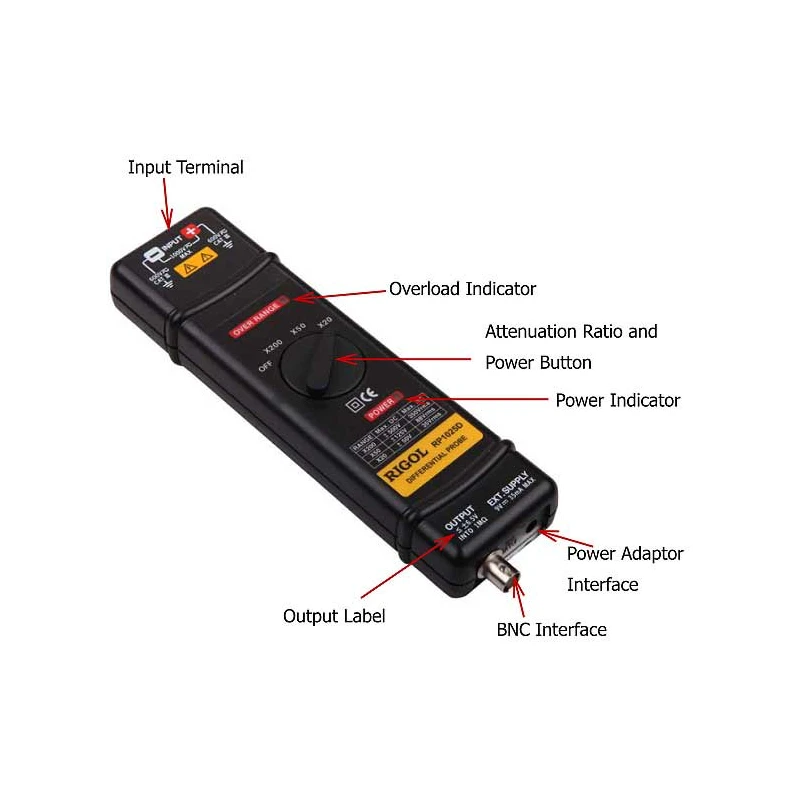

RIGOL High-Voltage Differential RP1100D Active Probe For MSO/DS7000 Series

RIGOL RP1100D High-Voltage Differential Active Probe is a specialized laboratory accessory designed for engineers and technicians working on high-speed, high-voltage signal analysis. Featuring a 100 MHz bandwidth and a maximum differential voltage capability of 6.5 kV, this differential active probe is ideally suited for use in power electronics, switching systems, and waveform analysis applications.

Thanks to its state-of-the-art active measurement circuitry, the RP1100D achieves accurate and reliable signal acquisition even in demanding environments. With robust isolation, it safeguards both operator and equipment during measurements of high-potential circuits.

• 100 MHz bandwidth supports rapid transient and frequency-domain measurements.
• 6.5 kV maximum differential voltage rating for comprehensive high-voltage analysis.
• Active probe design offers superior input impedance and noise performance.
• Compatible with a wide range of RIGOL oscilloscopes: DS70000, DS8000-R, MSO8000/MSO8000A, MSO/DS7000, MSO5000, DHO900, DHO800, DH4000, DHO1000, DS1000Z, DS1000Z-E series.
• Suitable for use in industrial laboratories, power supply development, inverter design, and electrical safety validation.
• Allows differential measurement to eliminate common-mode noise and ensure safe analysis of floating or isolated signals.
• Durable construction ensures consistent performance in production lines, R&D labs, and quality control applications.
• Meets the needs of industrial, laboratory, and educational sectors requiring precision voltage differential measurements at high voltages.

Whether employed in laboratory validation, industrial process monitoring, or research and development, the RIGOL RP1100D is an essential probe for advanced electrical measurements. Explore more high-performance electronic measurement solutions in the EnvMart laboratory instruments and Rigol brands catalog.
