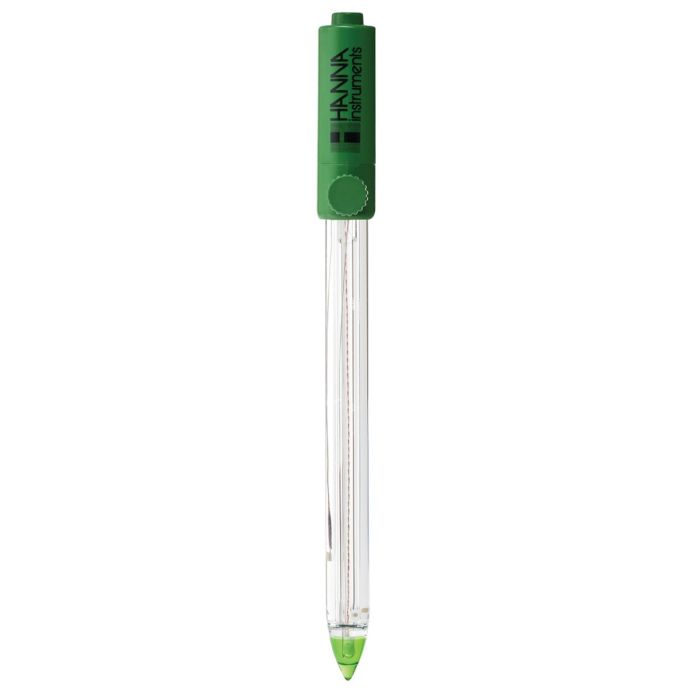

Hanna pH Electrode with Conical Tip and Quick Connect DIN Connector - HI10533

The HI10533 pH Electrode is a high-performance laboratory electrode designed for demanding pH measurements in scientific, industrial, and quality control environments. Featuring a glass body with a conical tip (12 x 12 mm), this electrode is refillable and incorporates both a triple ceramic junction and a double Ag/AgCl reference for improved measurement stability and contamination prevention.

The low temperature (LT) glass formulation enables precise pH readings from -5 to 100°C, making it suitable for semi-solid products, creams, emulsions, and soil testing. A built-in temperature sensor provides automatic temperature compensation, ensuring dependable accuracy across varying sample types and environments. The electrode is equipped with a 1-meter 7-pole cable and a proprietary quick connect DIN connector for easy installation and compatibility with select pH meters.

• Low temperature glass suitable for challenging measurement environments.
• Glass body for strong chemical resistance and robustness.
• Triple ceramic junction (flow rate: 40–50 µL/h) and double reference to minimize contamination.
• Refillable with 3.5M KCl electrolyte for extended operating life.
• Conical sensing bulb (12 mm diam./12 mm length) facilitates measurement in viscous or semi-solid samples.
• Integrated temperature sensor for rapid temperature compensation.
• Connector type: Quick Connect DIN, suitable for proprietary meters.
• Measurement range: pH 0–12; operating pressure: max 0.1 bar; overall length: 175.5 mm; outer diameter: 12 mm.
• Recommended for cream, fat, low conductivity liquid, potable water, and soil applications.

Widely used in laboratory analysis, quality assurance, R&D, educational, environmental monitoring, and food industry settings, the HI10533 offers reliable performance for critical pH measurement tasks. Explore more laboratory electrodes and accessories in the EnvMart Laboratory Instruments & Supplies category.
