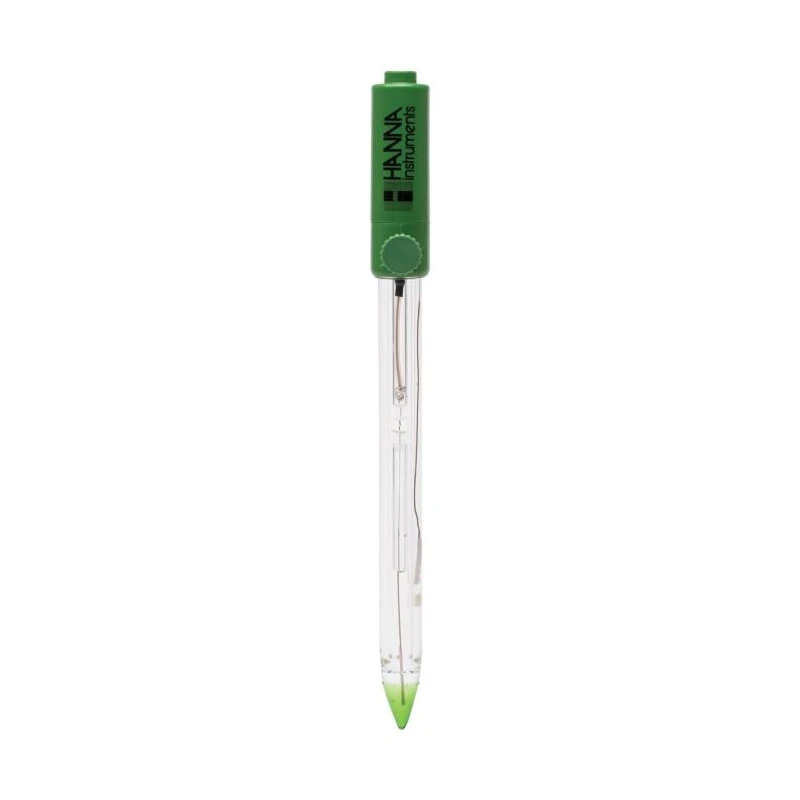

Hanna pH Electrode with Conical Tip and BNC + Pin Connector - HI1053P
Specifications
| Country of Origin | India |
|---|---|
| Measurement Range | pH: 0 to 12 |
| Body Material | glass |
| Outer Diameter | 12 mm |
| Model | HI1053P |
| Temperature Sensor | no |
| Max. Pressure | 0.1 bar |
| Cable | Coaxial - 1 m (3.3’) |
| Connector Type | BNC + pin |
| Reference Cell Type | Double, Ag/AgCl |
| Tip / Shape | conic (12 x 12 mm) |
| Matching Pin | no |
| Amplifier | no |
| Recommended Use | Emulsions, fats and creams, low conductivity solutions, potable water, semi-solid products, soil samples |
| Refill Electrolyte | 3.5M KCl |
| Product Condition | New |
| MPN | HI1053P |
| Body Length / Overall Length | 120 mm / 175.5 mm |
| Junction Type / Flow Rate | Ceramic, triple / 40-50 µL/h |
| Max. Temperature Operating Range | -5 to 100 °C |
Key Features
HI1053P pH Electrode with conical tip, triple ceramic double junction, glass body, refillable, and BNC + pin connector for laboratory use.

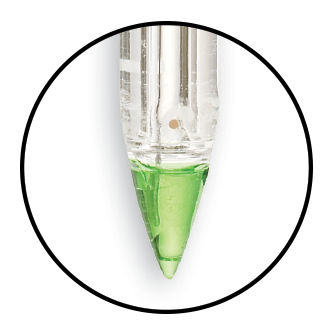

- Features a conical low temperature glass tip for enhanced performance with emulsions, fats, creams, soils, and semi-solid samples.

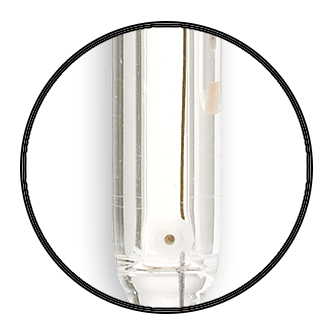

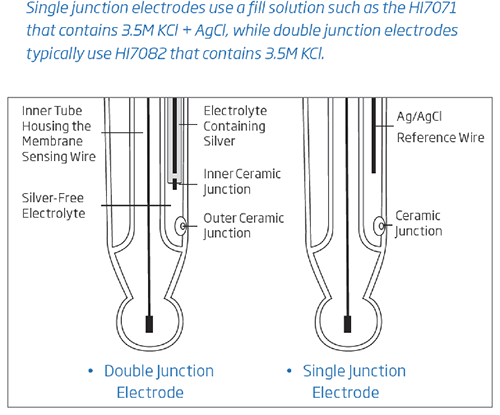

- Double junction and triple ceramic junction design provide excellent reliability and prevent contamination during measurements.
- Wide pH measurement range of 0 to 12, suitable for low conductivity solutions and samples at cooler temperatures.
- Compatible with benchtop meters supporting CAL Check functionality through the BNC + pin connector.
- Robust glass body construction aids in accurate readings and chemical resistance for harsh laboratory environments.
- Coaxial 1 m cable for flexible connection and convenient setup.
- Refillable reference cell (3.5M KCl electrolyte) for long life and consistent measurement capability.
- Outer diameter of 12 mm, overall length of 175.5 mm, and maximum pressure rating of 0.1 bar.
Product Description
The HI1053P pH electrode is designed for precise laboratory measurements in emulsions, fats, creams, semi-solid samples, low conductivity solutions, and soil. The electrode features a conical low temperature glass sensing tip (12 x 12 mm), a durable glass body, and both double and triple ceramic junctions, which together provide superior accuracy and resistance to contamination.
This electrode is refillable with 3.5M KCl electrolyte and comes fitted with a BNC + pin connector, making it compatible with benchtop meters equipped with CAL Check functions, including models HI2221, HI2222, and HI2223. Its design ensures optimal performance when measuring samples at cooler temperatures (-5 to 100°C) and in difficult sample matrices.
- Conical low temperature glass tip for direct measurement in viscous, emulsion, and semi-solid samples such as creams and soil.
- Triple ceramic junction allows for a stable reference flow (40-50 µL/h), reducing clogging and measurement errors.
- Double junction reference system with Ag/AgCl design enhances accuracy and extends electrode life span.
- Robust 12 mm glass body with overall length of 175.5 mm ensures practical integration into laboratory setups.

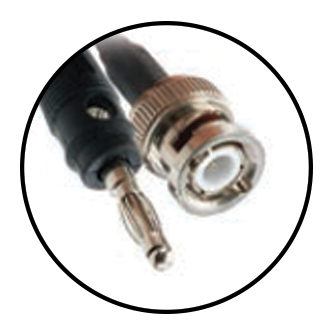

- 1-meter coaxial cable with BNC + pin connector provides flexibility and reliable connectivity, supporting electrode diagnostics via CAL Check.
- Measurement range of pH 0 to 12, with maximum pressure tolerance of 0.1 bar strengthens operation across diverse laboratory applications.
- Recommended for use in industrial, environmental, water quality monitoring, agricultural, and research laboratories.
- Refillable reference cell for consistent and reproducible measurements over prolonged usage.
Package includes: 1 HI1053P pH Electrode (conical tip, glass body, BNC + Pin connector, 1 m cable). Please refer to supplied documentation and compatible benchtop meters for further setup instructions. Explore other laboratory electrodes and sensors for your precision measurement needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HI1053P pH electrode has a measurement range of 0 to 12, making it suitable for various laboratory applications.
Yes, the conical low temperature glass tip of the HI1053P is specifically designed for direct measurement in emulsions, creams, and semi-solid samples.
The HI1053P electrode is equipped with a BNC + pin connector, making it compatible with various benchtop meters.
Yes, the HI1053P features a refillable reference cell that uses a 3.5M KCl electrolyte for consistent measurement capability over time.
The HI1053P has a maximum pressure rating of 0.1 bar, suitable for various laboratory conditions.
The HI1053P comes with a 1-meter coaxial cable, providing flexibility for setup in laboratory environments.
The HI1053P features a robust glass body that ensures durability and chemical resistance, suitable for harsh laboratory environments.
This electrode is ideal for measuring pH in emulsions, fats, creams, soils, and low conductivity solutions.
The triple ceramic junction allows for a stable reference flow of 40-50 µL/h, reducing clogging and improving measurement accuracy.
For more information about compatible benchtop meters and setup instructions, please refer to the supplied documentation with your HI1053P electrode.
