Hanna Iron and Manganese LR Portable Photometer-Kit - HI97742C

Name: Hanna Iron and Manganese LR Portable Photometer-Kit - HI97742C
Brand: Hanna
SKU: 72450
Price: 606.51 USD
Availability: InStock



Category Portable Photometers Brand Hanna

Specifications

Display	128 x 64 pixel B/W LCD with backlight
Product Type	Portable Low Range Iron and Manganese Photometer Kit
Wavelength	575 nm
Automatic Shut-Off	After 15 minutes inactivity (30 minutes before a measurement)
Model	HI97742C
Optical System	Reference detector + narrow band interference filter
Bandpass Filter Bandwidth	8 nm
Bandpass Filter Wavelength Accuracy	±1.0 nm
Iron Range	0.00 to 1.60 mg/L as Fe
Iron Resolution	0.01 mg/L
Iron Accuracy	±0.01 mg/L ±8% of reading at 25°C
Iron Method	Adaptation of the TPTZ Method
Manganese Range	0–300 μg/L as Mn
Manganese Resolution	1 μg/L
Manganese Accuracy	±10 μg/L ±3% of reading at 25°C
Manganese Method	Adaptation of the 1-(2-Pyridylazo)-2-Naphthol PAN Method

Key Features

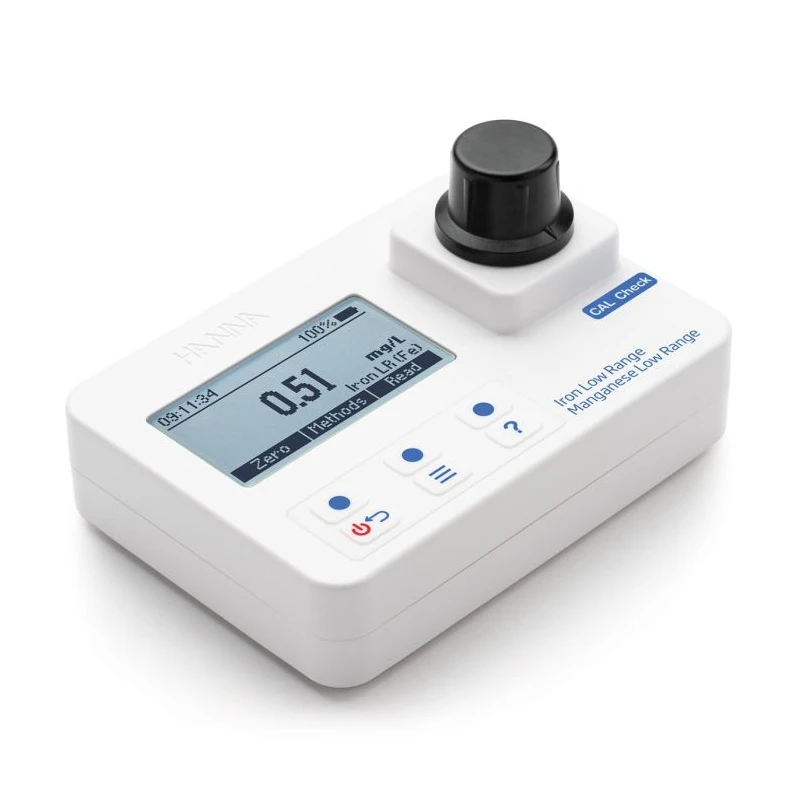

HI97742C portable photometer kit delivers reliable measurement of low range iron and manganese in water samples with advanced optical accuracy.

Designed for fast, repeatable iron and manganese testing in field and laboratory environments.

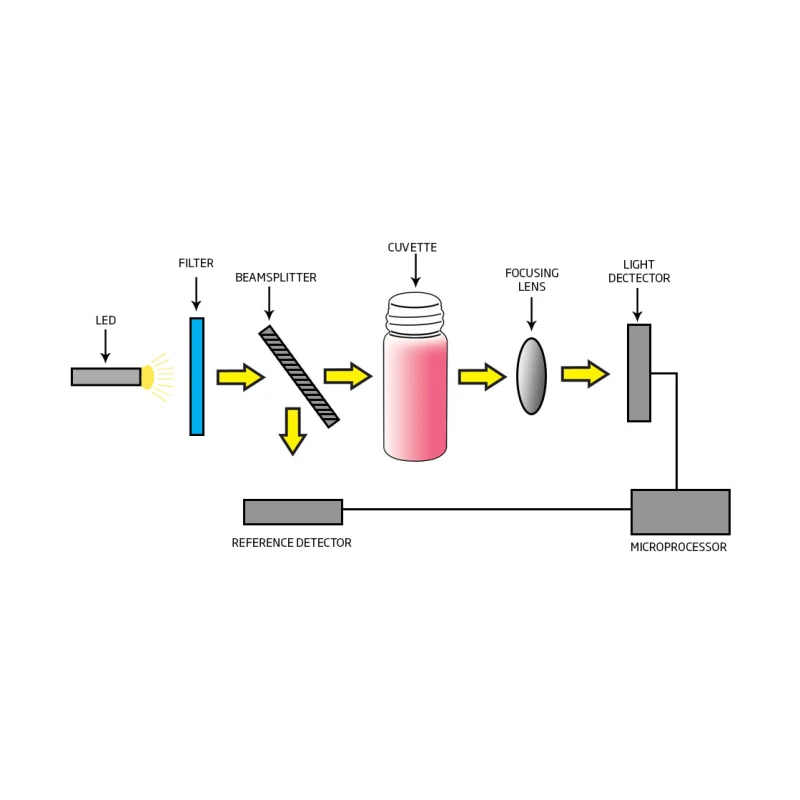

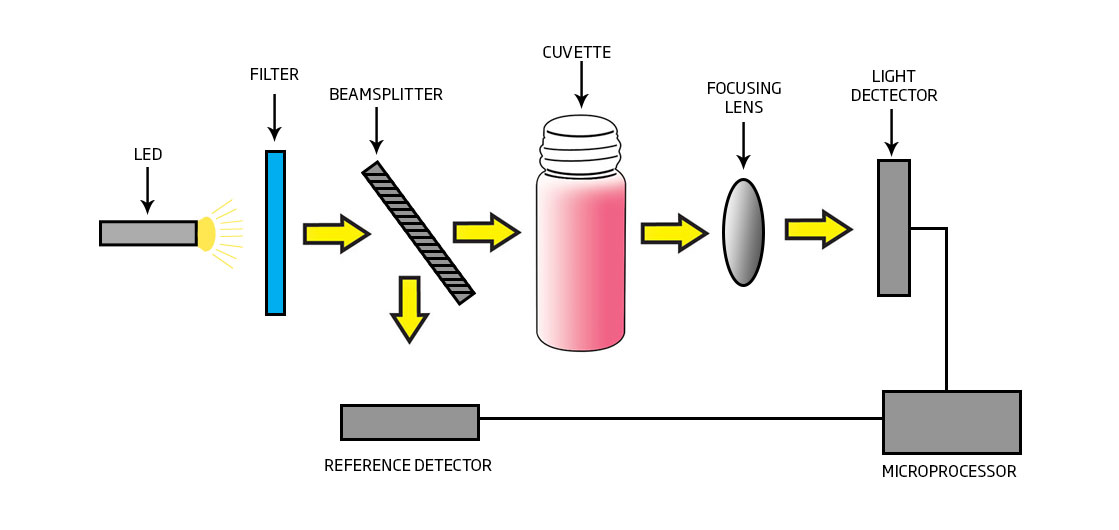

Superior optical system utilizes a reference detector with narrow band interference filters.
Features automatic shut-off after periods of inactivity to conserve battery life.

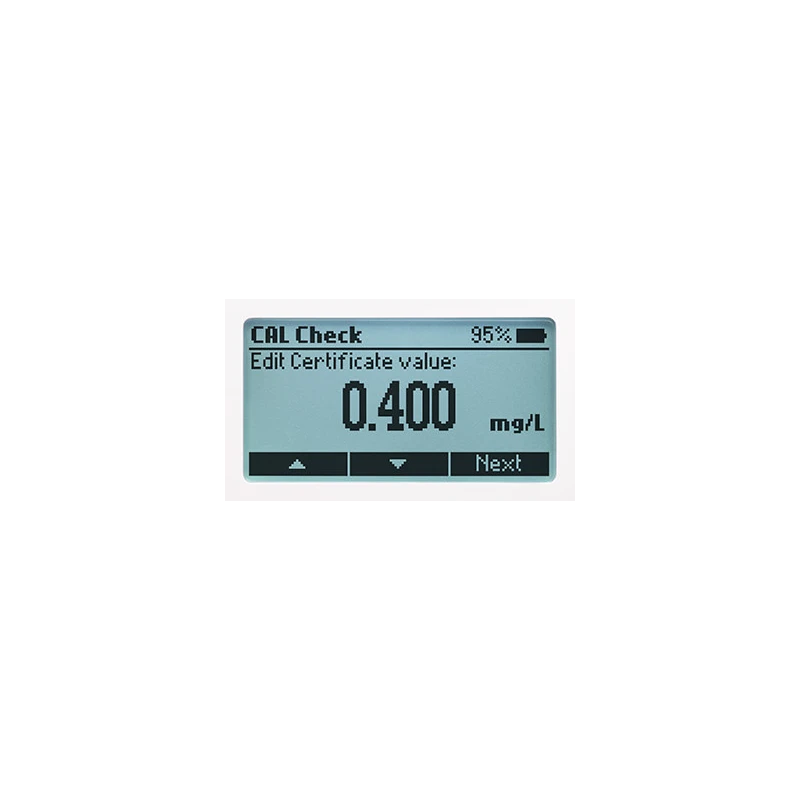

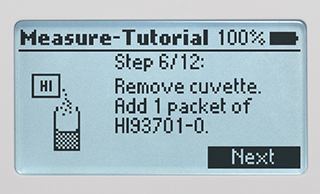

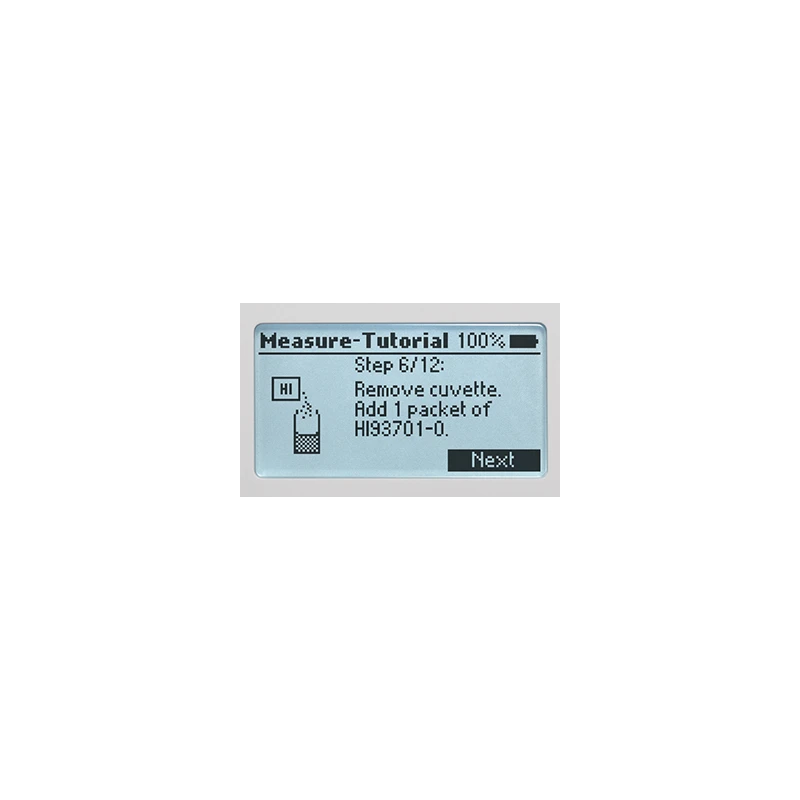

Accurate readings enabled by tutorial mode and on-board calibration (CAL Check).
Wide measurement ranges: Iron 0.00–1.60 mg/L; Manganese 0–300 μg/L.
Operates with three AA Alkaline batteries for up to 800 measurements.
Compact design with rugged IP67 environmental protection.
Narrow bandpass filter for minimized measurement errors.
Data logging memory for up to 50 readings, supporting traceability and QC.
Includes round cuvette system for sample handling.

Product Description

The HI97742C portable photometer kit supports laboratories, field engineers, and water treatment specialists in precise determination of low range iron and manganese concentrations in water. Featuring a robust optical system with reference detector and narrow band interference filter (8 nm bandwidth with ±1.0 nm accuracy), this instrument ensures rapid, repeatable results with no warm-up time required.

Measures iron using the TPTZ method and manganese with the PAN method for accurate quantification in drinking water, industrial wastewater, and environmental monitoring applications.
Integrated GLP functionality, step-by-step tutorial mode, and CAL Check performance verification enhance traceability and user confidence.

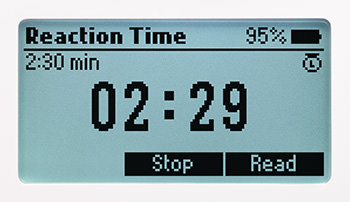

The large backlit 128x64 pixel LCD simplifies on-site or benchtop operation, while automatic shutoff preserves battery life during field deployment.
With a rugged, compact footprint (142.5 x 102.5 x 50.5 mm) and strong IP67 rating, the photometer is suitable for harsh environments.
50-reading logging memory and ergonomic round cuvette sample chamber streamline workflow.
Operates in 0–50°C and 0–100% relative humidity environments, powered by 3 AA batteries for continuous on-site usability.

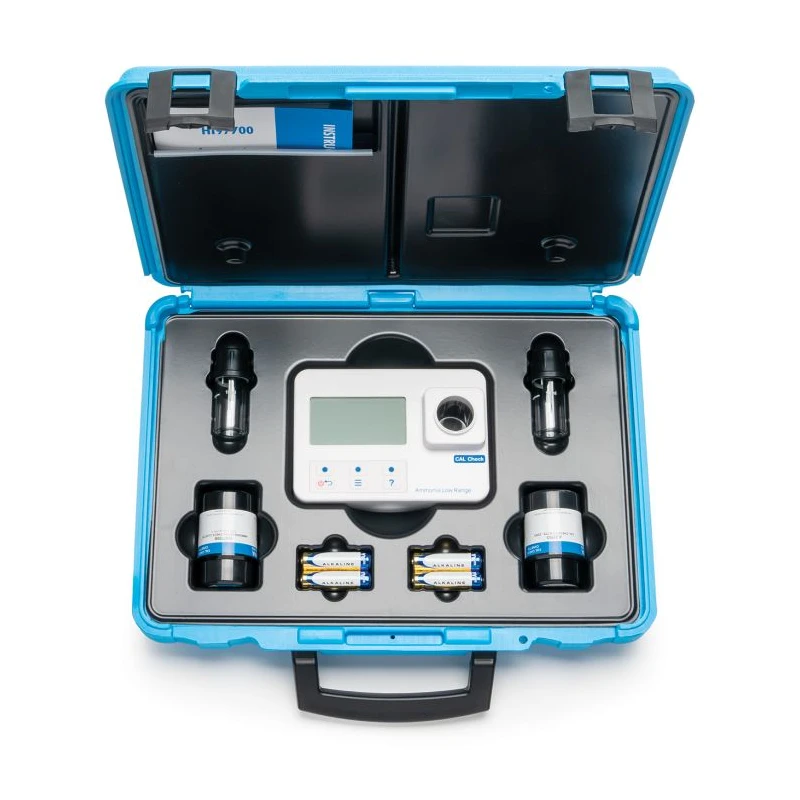

Applications span drinking water testing, wastewater plant monitoring, industrial effluent analysis, agricultural, and environmental lab validation. Package includes HI97742C unit, cuvettes, batteries, user manual, and carrying case.
