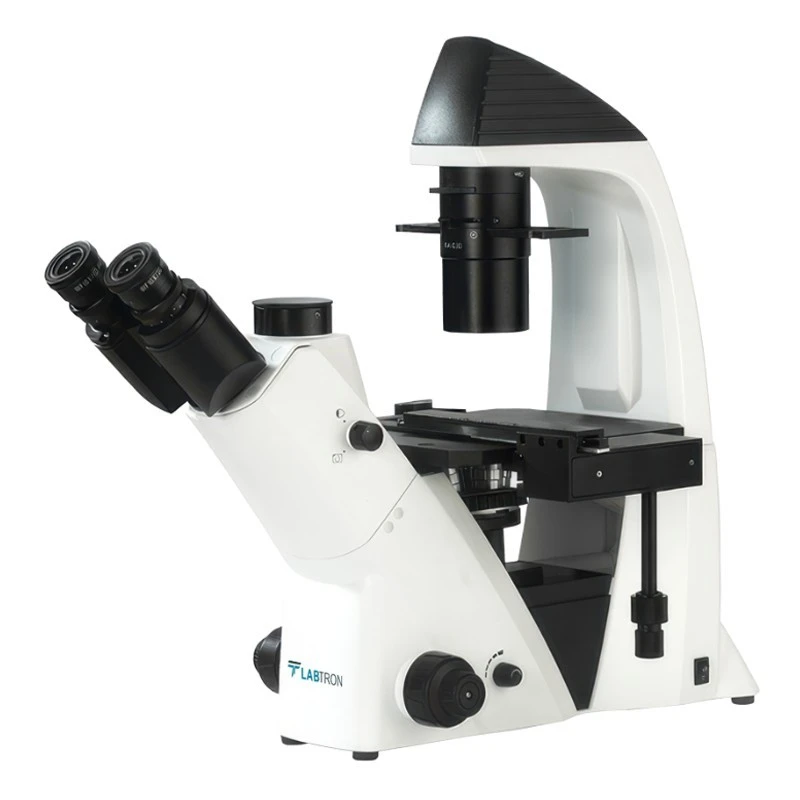

Inverted Biological Microscope EIBM-F10

Name: Inverted Biological Microscope EIBM-F10
Brand: Generic Brand
SKU: ADGGF
Price: 69.5 USD
Availability: InStock



SKU ADGGF Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Dimension	520 × 470 × 490 mm
Net Weight	14 kg
Model	LIBM-F10
Optical System	Infinite Optical System
Gross Weight	18 Kg
Type of Product	Microscope
Filter	Blue Filter (Φ34mm) / Green Filter (Φ34mm)
Condenser	Long Working Distance Condenser / N.A. 0.3 / WD — 72mm (with condenser) / 195mm (without condenser)
Illumination	12V/30W Halogen Lamp / Input Voltage — 100V-240V
Objectives	4X/NA equal to 0.11 / WD equal to 12.1mm / 10X/NA equal to 0.25 / WD equal to 10.3mm / 20X/NA equal to 0.45 / WD equal to 5.8mm / 40X/NA equal to 0.65 / WD equal to 5.1mm
Focusing	Coaxial Coarse and Fine Adjustment / Fine Division — 0.002mm / Moving Range — 10mm
Eyepiece	Wide Field Plan Eyepiece PL10X/22mm / Adjustable Diopter
Viewing Head	45° Trinocular Tube / Interpupillary Distance — 48-76mm / Splitting Ratio — 100 — 0 or 80 — 20 / Eyepiece Tube Diameter — 30mm
Nosepiece	Quintuple nosepiece
Stage	Size — 210mm(X) × 241mm(Y) / Round Size — Ø110mm / Moving Range — 128mm(X) × 80mm(Y) / Mechanical Stage for 96 Holes Plate / X-Y Coaxial Control / Ø54mm culture dish holder
C-mount	0.5X C-mount Adapter / Adjustable Focus
Centering Telescope	Φ30mm Centering Telescope
Phase Annulus	10X / 20X / 40X Phase Annulus Plates

Key Features

Adjustable light distribution ratios
Long working distance condenser
Dual-handed mechanical stage control
High-intensity LED fluorescence unit
Compatible with high-culture dishes
Wide stage to hold samples
Large diameter quintuple nosepiece

Product Description

Inverted Biological Microscope LIBM-F10 provides a magnification range from 40x to 400x for precise observation of cultured cells. It includes a wide field PL10X/22mm eyepiece and long working distance infinity plan achromatic objectives. The quintuple nosepiece allows quick switching between 4x, 10x, 20x, and 40x objectives. The LED Epi fluorescence unit ensures high-intensity, clear illumination. This microscope suits research, medical labs, and educational environments focused on cell culture studies.

Applications:

Our Inverted Biological Microscope LIBM-F10 provides excellent optics for observing living cells, designed for research and medical use with an ergonomic, user-friendly setup.

Standard Accessories:

Φ65 mm Culture Dish Holder: 1 piece
Φ54 mm Culture Dish Holder: 1 piece
Φ35 mm Culture Dish Holder: 1 piece
Blood Cell Counter Holder: 1 piece
Universal Holder: 1 piece
Glass Holder: 1 piece
LWD Infinity Plan Objectives: 1 set
LWD Infinity Plan Phase Contrast Objectives: 1 set

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It provides a magnification range from 40x to 400x for precise observation of cultured cells.

The microscope comes with LWD Infinity Plan Objectives and LWD Infinity Plan Phase Contrast Objectives as part of its standard accessories.

The dimensions are 520 × 470 × 490 mm, and it has a net weight of 14 kg.

It uses a 12V/30W halogen lamp for illumination, with an input voltage of 100V-240V.

The stage measures 210mm(X) × 241mm(Y) and has a moving range of 128mm(X) × 80mm(Y), with mechanical stage control for 96 holes plate.

It features an Infinite Optical System for enhanced viewing capabilities.

It includes a wide field plan eyepiece PL10X/22mm with an adjustable diopter.

It uses a long working distance condenser with a numerical aperture of 0.3 and a working distance of 72mm (with condenser) or 195mm (without condenser).

It has a 45° trinocular tube with an interpupillary distance of 48-76mm and a splitting ratio of 100-0 or 80-20.

It is designed for research, medical labs, and educational environments focused on cell culture studies.
