HI1016-1805 Digital Process pH Probe, Low Temp, Ceramic, PVDF, RS485, 5m | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

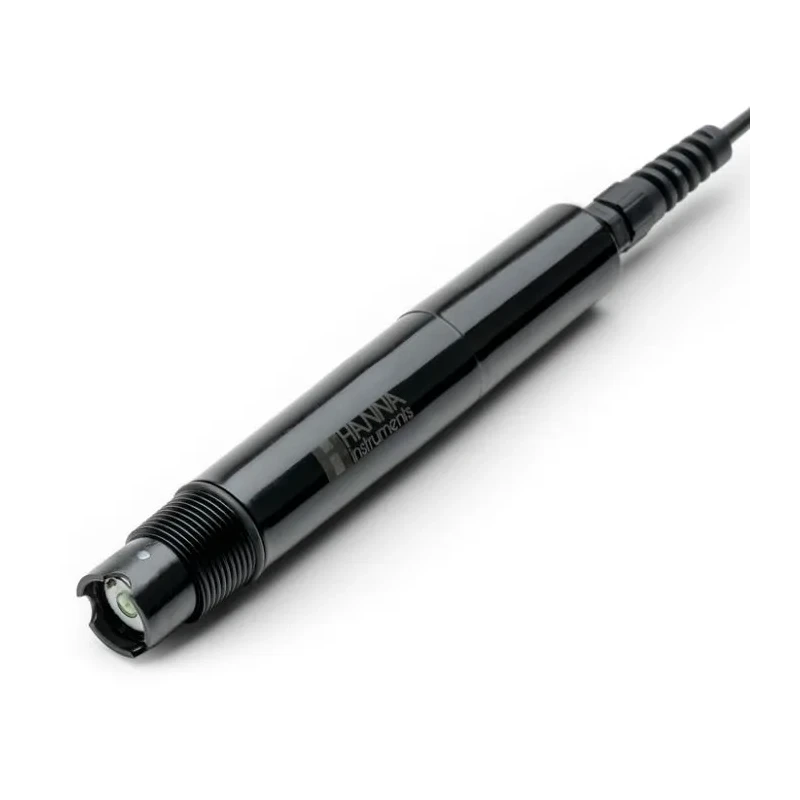

Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-LT - Low Temperature-Ceramic

Name: Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-LT - Low Temperature-Ceramic
Brand: Hanna
SKU: 72335
Price: 486.2 USD
Availability: InStock



Category pH Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	0 to 12 pH (LT glass)
Body Material	PVDF
Temperature range	-5 to 80 °C
Outer Diameter	22.5 mm
Model	HI1016-1805
Cable Length	5 m
Temperature Sensor	Pt100
Max. Pressure	6 bar (87 psi)
Connector Type	Direct wire connection
Reference Cell Type	Double Junction

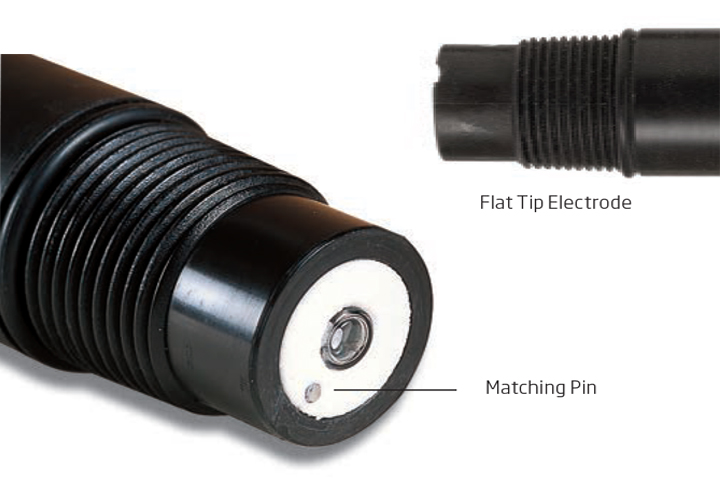

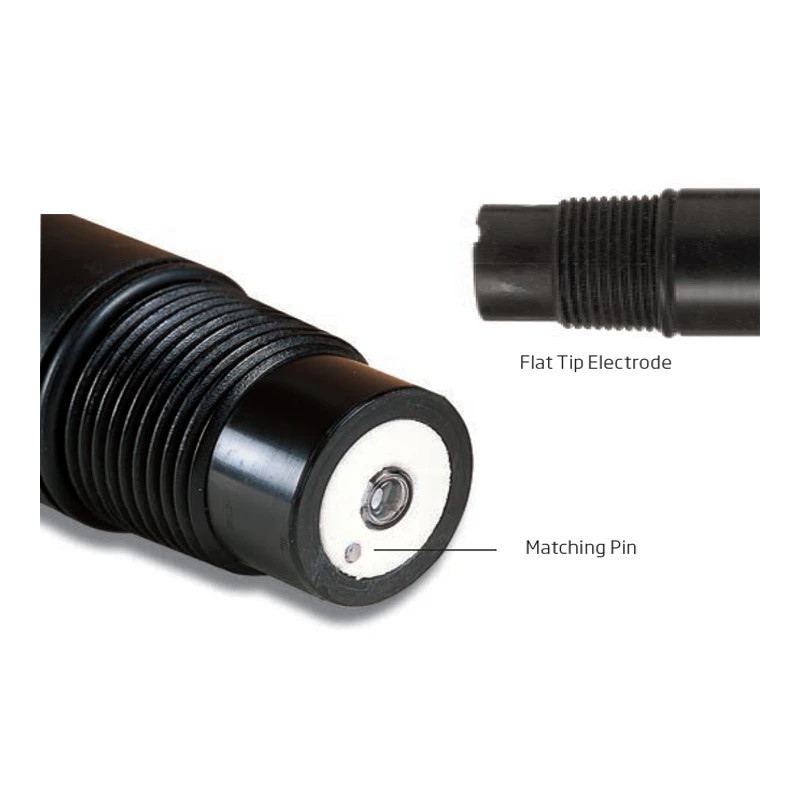

Tip / Shape	flat
Matching Pin	yes
Glass Type	LT (low temperature)
Junction Type	Ceramic
Product Condition	New
MPN	HI1016-1805
Body Length / Overall Length	140 mm
Electrolyte Type	Polymer

Key Features

HI1016-1805 Process Digital pH Probe for industrial and lab process monitoring, featuring low temperature glass, ceramic junction, built-in pt100 sensor, and RS485 digital output.

Designed for accurate process pH measurement with digital RS485 output for robust data communication.
Provides dual-junction with low temperature (LT) glass for applications from -5 to 80 °C.
PVDF body enhances chemical resistance and overall sensor durability.
Ceramic reference junction ensures stable and reliable measurements.
Integrated pt100 temperature sensor for automatic temperature compensation.
Direct wire connection for secure and reliable mounting in industrial setups.
Compatible with HI510 Universal Process Controller for flexible integration.
Measurement range of 0–12 pH (LT glass), suitable for water treatment, environmental, or laboratory applications.
3/4" NPT threaded PVDF housing for inline or submersion mounting options.
Supports up to 6 bar (87 psi) max pressure for industrial environments.

Product Description

HI1016-1805 is a process digital pH probe engineered for demanding laboratory, industrial, and environmental applications. Featuring low temperature LT glass and a ceramic reference junction, it ensures reliable and accurate pH measurement in process monitoring and control. The probe body is constructed of highly chemical-resistant PVDF, providing long service life even in aggressive media. A built-in pt100 temperature sensor allows for automatic temperature compensation, enhancing accuracy in varying process conditions.

The HI1016-1805 supports digital RS485 communication, making it immune to electrical interference common in industrial environments. It transmits precise process data directly to compatible devices such as the HI510 Universal Process Controller. The sensor is equipped for direct wire connection and provides convenient inline or submersion mounting using its 3/4-inch NPT threads.

Low temperature (LT) glass: -5 to 80 °C, measurement range 0 to 12 pH.
Ceramic reference junction ensures sample stability and fast response.
PVDF (polyvinylidene fluoride) housing for chemical, thermal, and mechanical durability.
Double junction reference cell for extended probe life.
3/4" NPT threaded connection for versatile installation.
Maximum pressure tolerance of 6 bar (87 psi).
Integrated pt100 temperature sensor supports precise compensation.
Digital RS485 output facilitates remote monitoring and control.

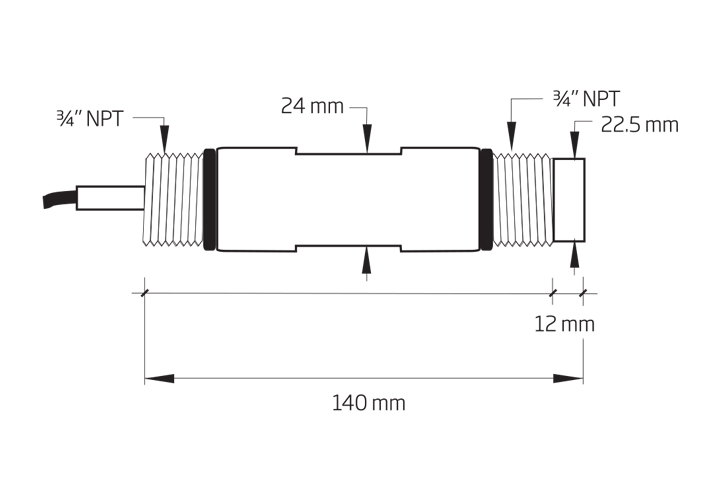

Body length: 140 mm, outer diameter: 22.5 mm, 5-meter direct cable connection.

This probe is ideal for water treatment plants, chemical process industries, laboratories, and environmental monitoring. Its robust construction and advanced features ensure it meets the needs of both industrial and research professionals. For compatible accessories and replacement parts, browse the complete category of pH Electrodes & Probes at EnvMart.
