Process Digital pH Probe High Temp PTFE PVDF, Flat Tip, RS485 Output | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-HT - High Temperature-PTFE

Name: Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-HT - High Temperature-PTFE
Brand: Hanna
SKU: 72334
Price: 486.2 USD
Availability: InStock



Category pH Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	LT glass: 0–12 pH, HT glass: 0–14 pH, HF glass: 0–10 pH
Body Material	PVDF
Product Type	Process Digital pH Probe
Temperature range	HT glass: 0–100°C, LT glass: -5–80°C

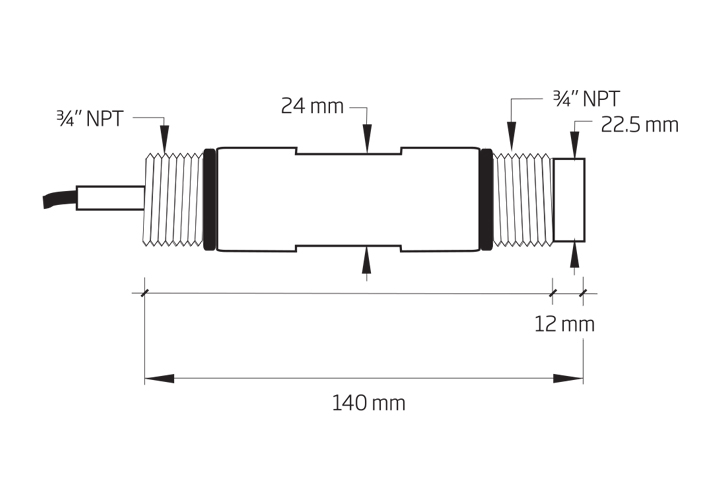

Outer Diameter	22.5 mm
Cable Length	5 m
Temperature Sensor	Built-in Pt100
Connector Type	Direct wire connection
Reference Cell Type	Double Junction
Tip / Shape	flat
Matching Pin	yes
Glass Type	LT (low temperature), HT (high temperature), HF (hydrofluoric acid); select configuration
Max Pressure	6 bar 87 psi
Product Condition	New
Body Length / Overall Length	140 mm
Electrolyte Type	Polymer
Reference Junction	PTFE

Key Features

Process Digital pH Probe for high temperature applications with 5m cable, PTFE reference junction, and polymer electrolyte for robust industrial use.

Suitable for process control in harsh industrial environments.
Features a chemically resistant PVDF body and double junction design.
Flat tip and PTFE reference provide superior resistance to fouling and chemical attack.
Includes a built-in pt100 temperature sensor for accurate temperature compensation.
Operates with RS485 digital output, immune to electrical interference.
Compatible with HI510 Universal Process Controller systems.
Measurement range up to 0–14 pH (high temperature glass version).
Handles temperatures up to 100°C and pressures up to 6 bar.
Direct wire connection with 3/4 inch NPT threads allows easy in-line or submersion mounting.

Product Description

This process digital pH probe is engineered for demanding industrial and laboratory monitoring applications, delivering reliable pH measurements under rigorous conditions. With a 5m (16.4 ft) cable, flat tip, and a chemically resistant PVDF body, this probe is specially designed for high temperature environments and aggressive chemicals.

Robust double junction with PTFE reference ensures excellent resistance to contamination and chemical interference.
Built-in pt100 temperature sensor provides precise, real-time temperature compensation for accurate pH readings.
RS485 digital output provides reliable data transmission and immunity to electrical noise, ideal for industrial automation systems.
Capable of measuring a wide pH range: up to 0–14 pH (HT glass version), 0–12 pH (LT glass), or 0–10 pH (HF glass), making it versatile for different monitoring needs.
Flat tip design and polymer electrolyte simplify cleaning and maintenance, reducing downtime.
Maximum pressure rating of 6 bar (87 psi) and temperature tolerance up to 100°C for high temperature processes.
Direct wire connection and 3/4 inch NPT mounting facilitate integration into process pipelines or submersion setups.
Compatible with HI510 or similar universal process controllers for seamless monitoring and control.

Applications include water and wastewater treatment, chemical manufacturing, food and beverage plants, research laboratories, and industrial process control. Choose this pH probe for robust performance, reduced maintenance, and long life in challenging applications.

Browse more laboratory and process sensors in the EnvMart category for advanced industrial solutions.
