Hanna HI1000 Series Process Digital pH Probe-25m (82.0')-LT - Low Temperature-Ceramic

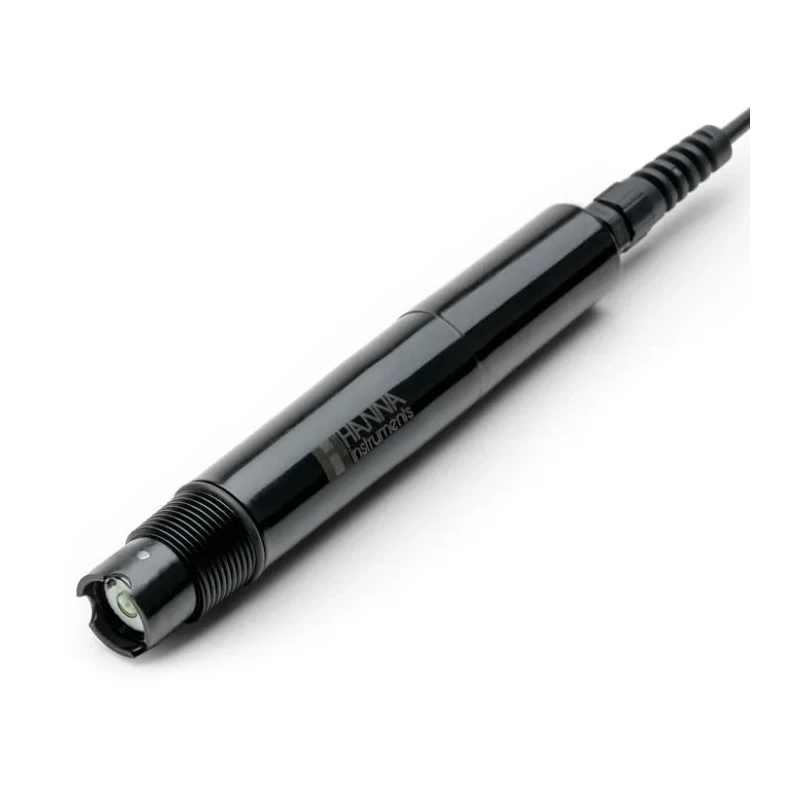

This industrial process digital pH probe is engineered for demanding pH monitoring and control applications in both laboratory and industrial settings, where accuracy, reliability, and chemical compatibility are essential. Featuring a robust PVDF body, this probe is designed to resist chemically aggressive media. It offers a unique combination of a 25-meter (82.0') direct wire connection and a flat tip with a double ceramic junction for enhanced measurement stability. The integrated PT100 temperature sensor supports automatic temperature compensation, ensuring accurate readings across a wide operational range from -5 to 80 ºC. The digital RS485 output enables interference-free data transmission compatible with modern process controllers. A 3/4” NPT thread allows easy mounting, either in-line or submerged, expanding its application flexibility. Designed for process control, water treatment plants, and laboratory chemical analysis, this probe is ideal in scenarios where reliable and continuous pH monitoring is critical.

• PVDF body construction provides excellent chemical resistance, suitable for aggressive environments.
• Choice of low temperature (LT), high temperature (HT), or hydrofluoric acid (HF) glass tip options extends application versatility (delivered with LT unless specified).
• Built-in PT100 temperature sensor for responsive automatic temperature compensation.
• Measurement range with LT glass: 0 to 12 pH; operating temperature: -5 to 80 ºC.
• Flat tip design and double junction minimize clogging and maximize accuracy over prolonged use.
• Output signal is digital RS485, offering robust, interference-immune communication.
• Probe mounting via 3/4 in. NPT thread for in-line/submersible installations.
• Reference cell: double junction; type of electrolyte: polymer.
• Maximum pressure rating: 6 bar (87 psi).

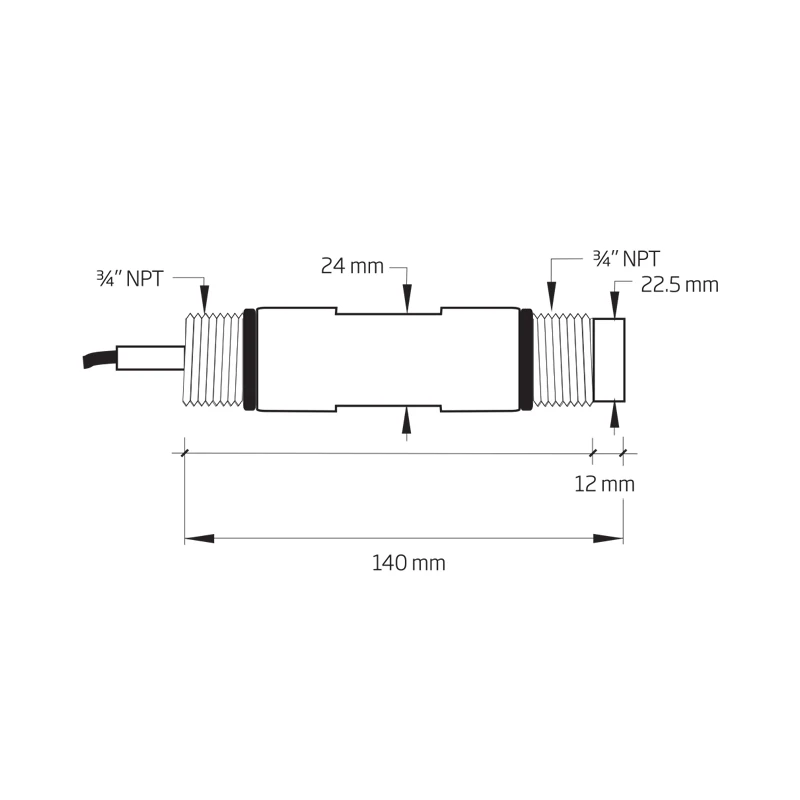

• Overall probe length: 140 mm; diameter: 22.5 mm.
• Direct wire connection enables easy integration into plant systems or laboratory instrumentation.

Typical industrial and laboratory applications include process water monitoring, chemical processing, wastewater treatment, food & beverage plants, and any settings where precise pH analysis is required. Trust EnvMart to supply the best Hanna digital electrochemical probes and pH electrodes for your process needs. Browse more advanced Hanna sensors and digital electrodes in the EnvMart catalogue.
