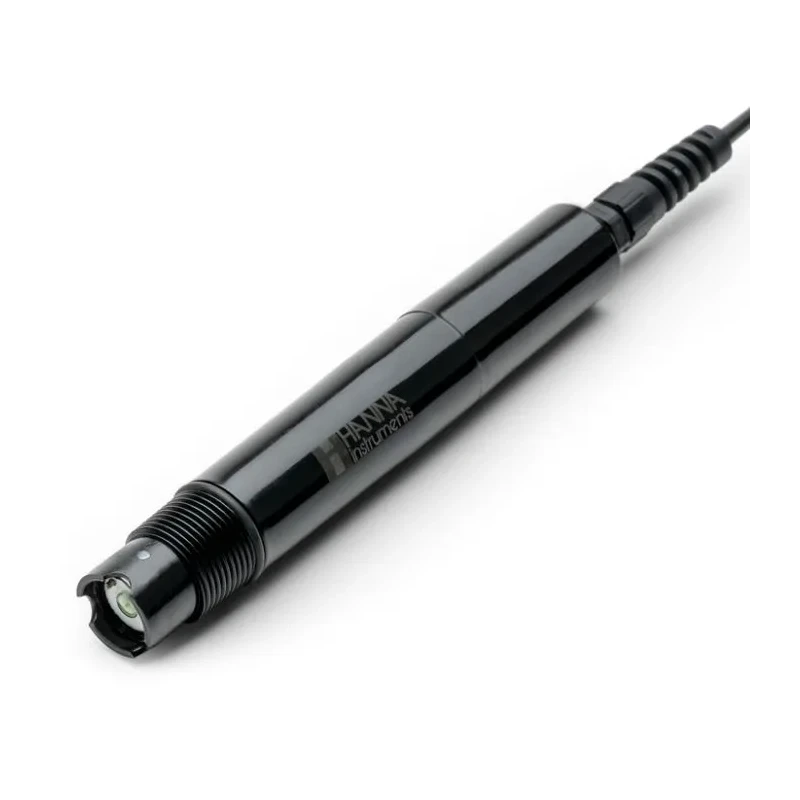

Hanna HI1000 Series Process Digital pH Probe-15m (49.2')-HF - Hydrofluoric Acid Resistant-PTFE
Specifications
| Country of Origin | India |
|---|---|
| Measurement Range | LT glass: 0 to 12 pH; HT glass: 0 to 14 pH; HF glass: 0 to 10 pH |
| Body Material | PVDF |
| Operating Temperature Range | LT glass: -5 to 80°C; HT glass: 0 to 100°C; HF glass: 2°C+ |
| Product Type | Process Digital pH Probe |
| Outer Diameter | 22.5 mm |
| Cable Length | 15 m |
| Temperature Sensor | Pt100 |
| Max. Pressure | 6 bar 87 psi |
| Connector Type | Direct wire connection |
| Reference Cell Type | Double Junction |
| Type of Electrolyte | polymer |
| Tip / Shape | Flat glass |
| Matching Pin | yes |
| Mounting Type | 3/4 in. NPT Threaded Connection |
| Overall Length | 140 mm |
| Product Condition | New |
| Junction Material | PTFE |
Key Features
Process Digital pH Probe with 15 metre cable, hydrofluoric acid resistant PTFE junction, and PVDF body for industrial use.
- Designed for process monitoring and control applications in industrial or laboratory settings.
- Features chemically resistant PTFE reference junction, suitable for use with hydrofluoric acid.
- Integrates a built-in pt100 temperature sensor for accurate compensation and measurement.
- Durable PVDF body includes 3/4" NPT threads for direct insertion or submersion mounting.
- Offers digital RS485 output signal, minimizing electrical interferences typical of analog probes.
- Compatible with process controllers like the HI510 Universal Process Controller.
- Handles pressures up to 6 bar (87 psi) and a wide operating temperature range.
- Double junction reference cell and flat tip for enhanced measurement stability and accuracy.
- Direct wire connection and matching pin for enhanced probe reliability.
- Ideal for water treatment, chemical processing, and laboratory pH measurement applications.
Product Description
This process digital pH probe is engineered for demanding industrial and laboratory process monitoring applications. Featuring a 15 metre direct wire connection cable, it utilizes a chemically resistant PTFE junction and hydrofluoric acid compatible glass, offering superior durability when exposed to aggressive chemicals. The probe’s robust PVDF body incorporates 3/4" NPT threaded fitting for convenient inline or submersion mounting in process lines or tanks.
Equipped with an integrated pt100 temperature sensor, the probe provides reliable temperature compensation across a broad operating range, ensuring precise and stable pH measurement from 0 to 14 pH depending on glass type and configuration. Digital RS485 output transmission delivers immunity against electrical interference, making this sensor ideal for connection to modern process controllers including the HI510 series.
- Hydrofluoric acid resistant with polymer, PTFE junction and PVDF body construction.
- Measures up to 6 bar (87 psi) pressure for industrial processing environments.

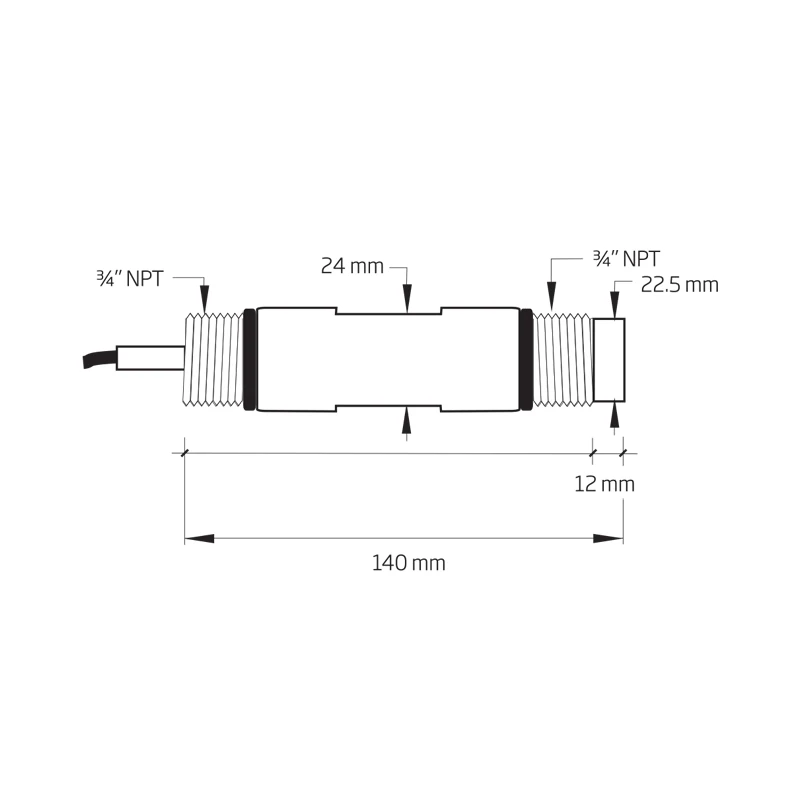

- Probe body length 140 mm, outer diameter 22.5 mm, for space-constrained installations.

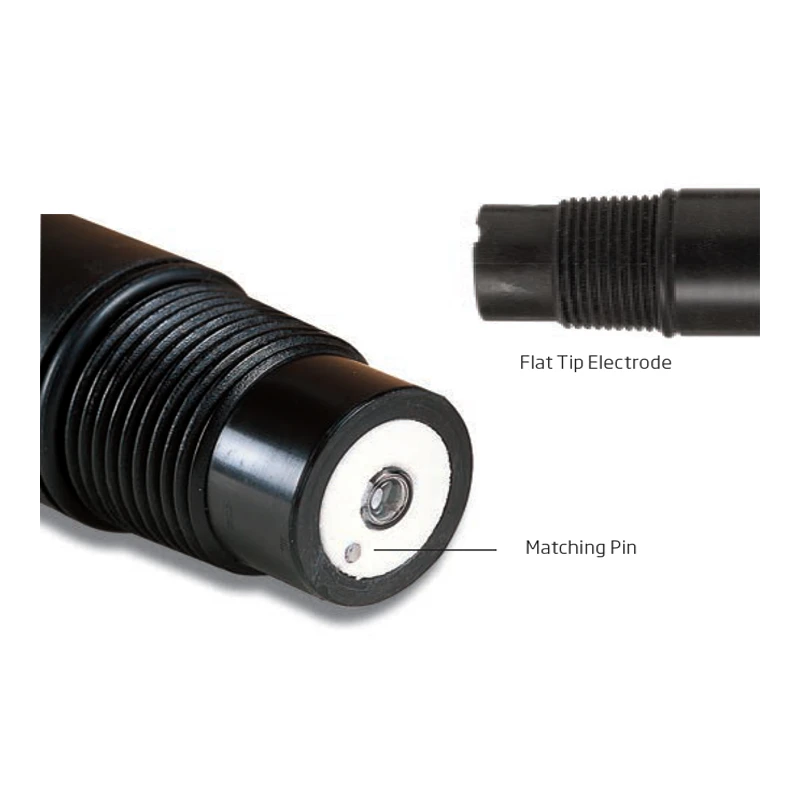

- Flat glass tip geometry for reliable measurement and ease of cleaning.
- Multiple glass types available: LT (low temp), HT (high temp), HF (hydrofluoric acid compatible).
- Double junction reference enhances measurement stability and lifespan in complex matrices.
- Direct wire RS485 digital output for robust data transmission.
- Built-in pt100 temperature sensor for automatic measurement compensation.
- Polymer type electrolyte ensures long life and minimal maintenance.
- Ideal for water treatment, chemical industries, laboratory automation, and environmental monitoring processes.
Explore EnvMart for more advanced pH electrodes, industrial process probes, and digital measurement technology for laboratory and field applications.
