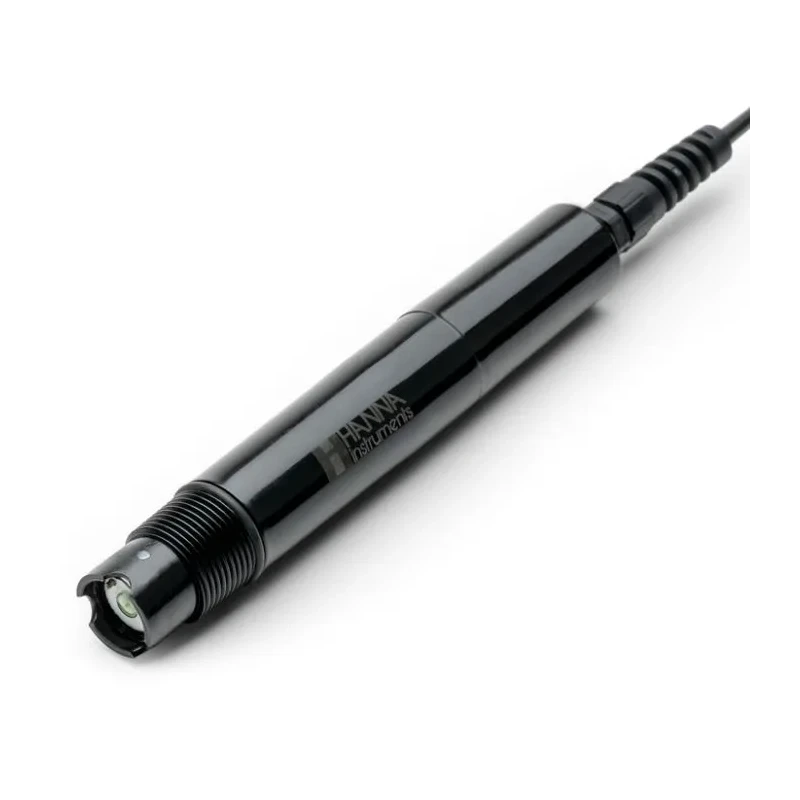

Hanna HI1000 Series Process Digital pH Probe-10m (32.8')-HT - High Temperature-Ceramic

The HI1000 Series Process Digital pH Probe is engineered for industrial and laboratory monitoring and control applications. With a cable length of 10 meters (32.8 feet), this probe features a chemically resistant PVDF body designed for reliable operation in harsh environments. The probe is equipped with a built-in pt100 temperature sensor for accurate temperature compensation and features a double junction reference cell, enhancing measurement stability and probe lifespan.

• 10m (32.8 ft) cable allows for extended installations and remote process applications.
• PVDF body construction provides excellent chemical resistance against aggressive process media.
• Available with LT (low temperature), HT (high temperature), or HF (hydrofluoric acid) glass, with ceramic or PTFE reference junction options.
• Measurement range: LT glass 0–12 pH, HT glass 0–14 pH, HF glass 0–10 pH.
• Integrated pt100 temperature sensor ensures precise measurements even with process temperature fluctuations.
• Digital RS485 output minimizes interference and supports long cable runs in industrial settings.

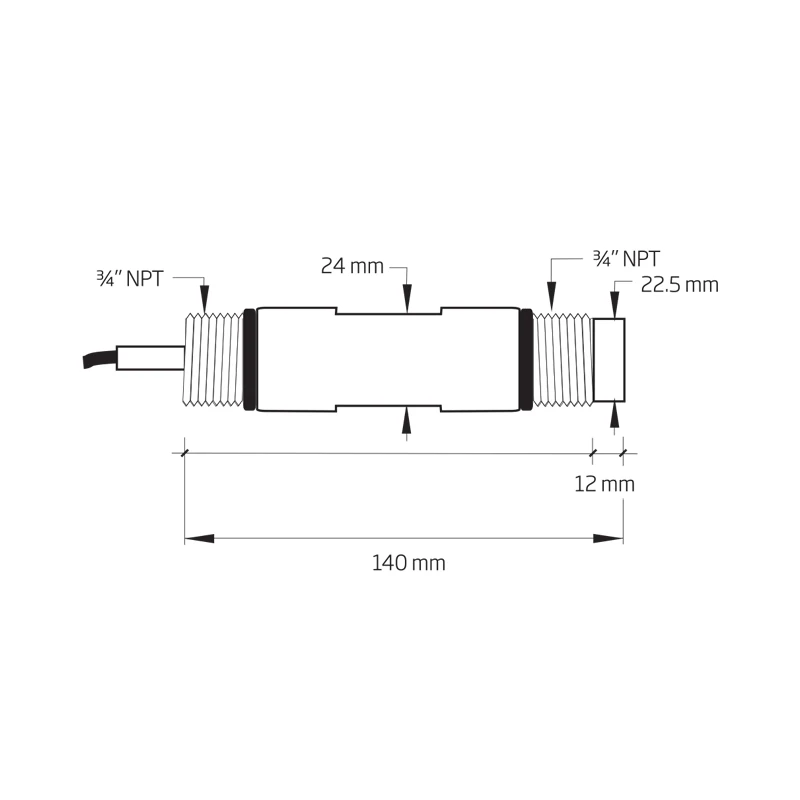

• 3/4" NPT threaded connection suitable for in-line mounting or submersion using a probe holder.
• Compatible with the HI510 Universal Process Controller, enabling flexible process integration and automation.
• Maximum operating pressure: 6 bar (87 psi); temperature range up to 100°C (212°F) with HT glass.

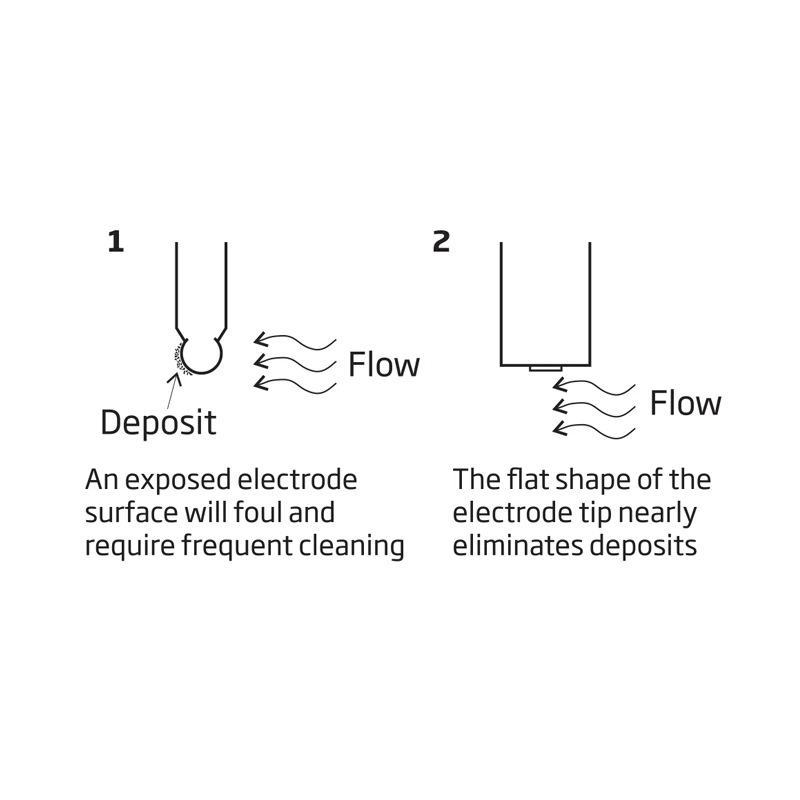

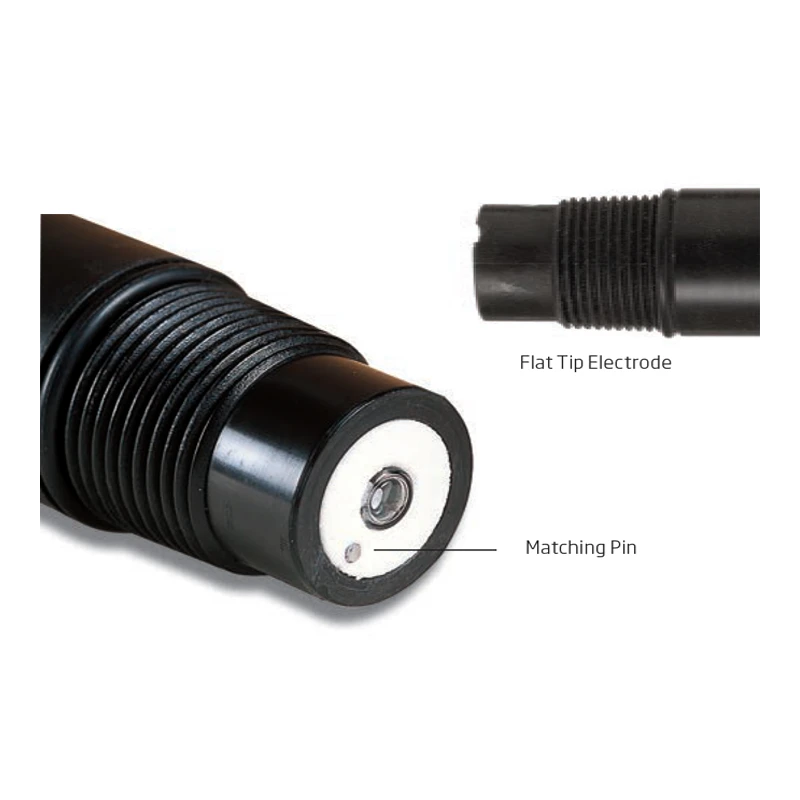

• Flat tip design provides accuracy in turbulent, high-viscosity, or high-particle-content liquids.

Applications include water and wastewater treatment, food processing, chemical manufacturing, laboratory process control, and environmental monitoring. Ensure optimal pH measurement performance with robust build quality and advanced digital transmission features.
