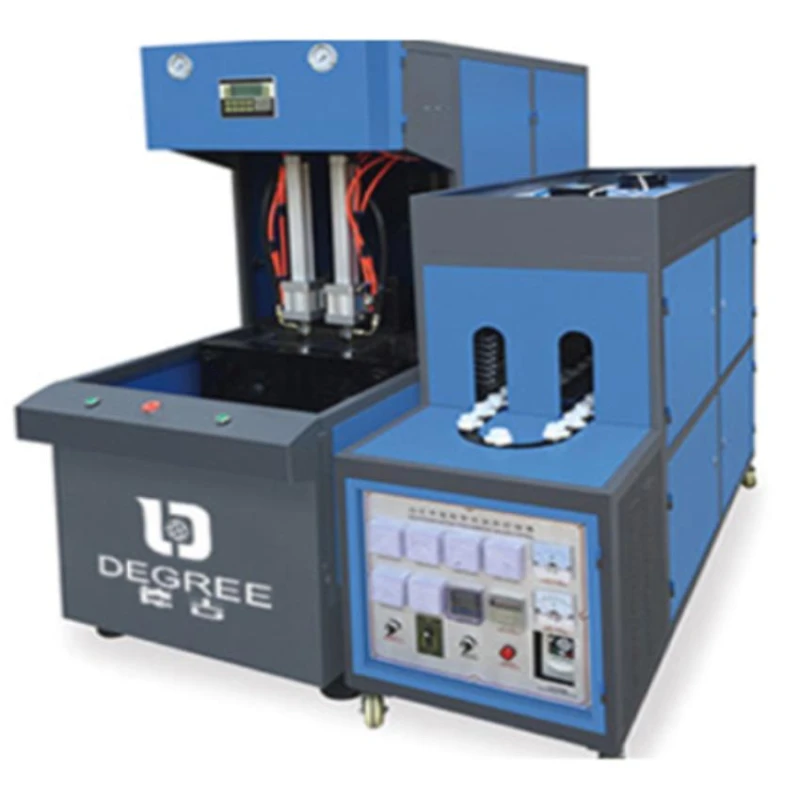

Semi Automatic Plastic PET Bottle Blow Molding Machine, 0.1–2L, 2 Cavity, 900 BPH, 10KW, DEG-3L
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | 1 Set of DEG-3L PET Blow Molding Machine with Blower and Preform Heater |
| Net Weight | 850 kg |
| Model | DEG-3L |
| Minimum Order Quantity | 1 |
| Bottle Type | PET |
| Automation | Semi Automatic |
| Clamping Force | 100 KN |
| Product Condition | New |
| MPN | DEG-3L |
| Number of Cavities | 2 |
| Clamping Stroke | 160 mm |
| Max Stretching Stroke | 360 mm |
| Max Mold Thickness | 300 mm |
| Max Container Diameter | 360 mm |
| Max Container Height | 380 mm |
| Neck Diameter Range | 18–120 mm |
| Number of Heating Zones | 4 Sections |
| Voltage Standard | 380V/3PH/50Hz |
| Preform Heater Dimensions | 1800×700×1400 mm |
| Container Volume Range | 0.1–2L |
| Theoretical Output Capacity | 900 BPH (500ml) |
| Max Output (2-cavity, 0.5L) | 1000 BPH |
| Total Power (Full Loaded) | 10 KW |
| Blow Molding Machine Dimensions | 1450×600×1700 mm |
| Air Compressor (High) | 30–40 Bar |
| Air Compressor (Low) | 10 Bar |
Key Features
DEG-3L Semi Automatic Plastic PET Bottle Blow Molding Machine is designed for producing PET bottles from 0.1L to 2L at high efficiency.
- Supports blow molding of various bottle types including cooking oil, mineral water, and soft drinks bottles.
- Equipped with two-cavity system for output up to 1000 bottles per hour for 0.5L bottles.
- Advanced PLC control system with highly accurate time-control precision up to 0.01 second.
- Features independent temperature control for each heating lamp and an adjustable infrared preform heater.
- Simple to operate and install, requiring only one operator and minimal training.
- Fitted with an air storage unit and operates with both high and low-pressure air compressors.
- Precise neck diameter range of 18–120mm and supports max container diameter up to 360mm and height up to 380mm.
- Compact machine layout with main blower size 1450×600×1700mm and preform heater size 1800×700×1400mm.
- Solid clamping force of 100KN and stroke of 160mm for reliable molding operations.
- Low waste rate of less than 0.1%, making it ideal for industrial and commercial PET bottle production.
Product Description
DEG-3L Semi Automatic Plastic PET Bottle Blow Molding Machine is a versatile solution for manufacturing PET bottles in the range of 0.1L to 2L. With a robust two-cavity system, this model supports the production of bottles used for cooking oil, mineral water, carbonated drinks, detergents, and more, with an output of up to 1000 bottles per hour for 0.5L size using advanced blow molding technology.
The system integrates an advanced PLC control panel allowing easy operation and precise process management, with time-control precision up to 0.01 second. Each infrared preform heater is independently temperature-controlled, and the adjustable heater segments enable flexibility for various preform types, ensuring ideal heating and quality results. The machine’s design also incorporates a special air storage unit, and it runs with high (30–40 Bar) and low (10 Bar) air compressors for efficient blow molding.
- Machine dimensions: Blower – 1450×600×1700mm, Heater – 1800×700×1400mm.
- Clamping force: 100KN, clamping stroke: 160mm, max mold thickness: 300mm, and max stretching stroke: 360mm.
- Supports bottle neck diameters from 18 to 120mm, max container diameter 360mm, and max container height 380mm.
- Offers 900 BPH for 500ml bottles and a low waste rate below 0.1% for high yield operations.
- Equipped with 4 heating sections for ideal preform heating and uniform bottle quality.
- Total installed power is 10KW and machine operates on 380V, 3-phase, 50Hz standard (special orders available).
- Simple set-up/installation, user-friendly controls, and low training requirements minimize operational costs.
The DEG-3L is widely used in beverage, food, chemical, and packaging industries for its reliable performance, easy operation, and robust construction. Suitable for commercial and industrial-scale bottle manufacturing.
Explore more PET bottle production machinery and processing equipment in the EnvMart Processing Machines & Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DEG-3L can produce up to 1000 bottles per hour for 0.5L bottles, with a theoretical output capacity of 900 BPH for 500ml bottles.
The DEG-3L is designed to produce PET bottles with a volume range of 0.1 to 2 liters.
The machine supports a neck diameter range of 18 to 120 mm.
The dimensions of the DEG-3L blow molding machine are 1450×600×1700 mm.
The DEG-3L operates on a voltage standard of 380V, 3-phase, 50Hz, with a total installed power of 10KW.
The DEG-3L has a solid clamping force of 100 KN.
The DEG-3L features a two-cavity system for efficient bottle production.
The maximum container diameter supported by the DEG-3L is 360 mm, and the maximum height is 380 mm.
The DEG-3L operates with both high-pressure air compressors (30–40 Bar) and low-pressure air compressors (10 Bar).
The DEG-3L is equipped with an advanced PLC control system, independent temperature control for each heating lamp, and an adjustable infrared preform heater.
The net weight of the DEG-3L is 850 kg.
The package includes 1 set of the DEG-3L PET blow molding machine with the blower and preform heater.
