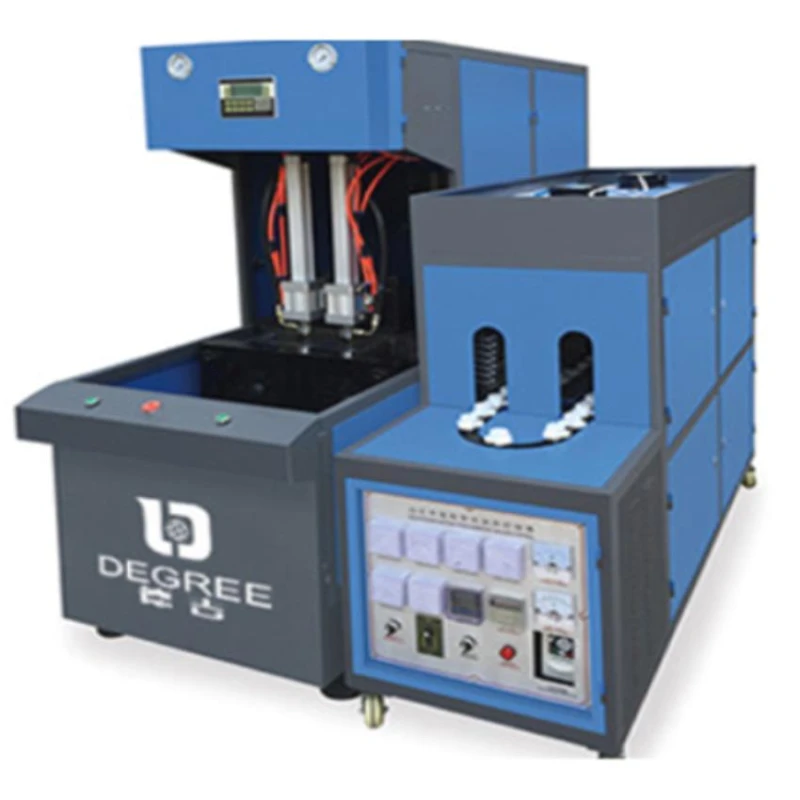

DEG-3L Semi Automatic PET Bottle Blow Molding Machine 2 Cavity 2L | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Semi Automatic PET Bottle Blow Molding Machine, DEG-3L, 2 Cavity, 0.1–2L Bottles, 380V, 10KW

Name: Semi Automatic PET Bottle Blow Molding Machine, DEG-3L, 2 Cavity, 0.1–2L Bottles, 380V, 10KW
Brand: EnvMart
SKU: 70587
Price: 4654.23 USD
Availability: InStock



Category PET Bottle Blowing Machine

Specifications

Net Weight	850 kg
Model	DEG-3L
Output Capacity	1000 BPH (0.5L)
Operation	Semi Automatic
Machine Dimensions	1450 x 600 x 1700 mm
Clamping Force	100 KN
Theoretical Output	900 BPH (500ml)
Number of Cavities	2
Max Container Volume	2 L
Clamping Stroke	160 mm
Max Stretching Stroke	360 mm
Max Mold Thickness	300 mm
Max Container Diameter	360 mm
Max Container Height	380 mm
Bottle Capacity Range	0.1–2L
Neck Diameter Range	18–120 mm
Number of Heating Zones	4 Sections
Preform Heater Size	1800 x 700 x 1400 mm
High Air Compressor Pressure	30–40 Bar
Low Air Compressor Pressure	10 Bar
Voltage Standard	380 V / 3PH / 50Hz
Power Consumption (Full Load)	10 kW
PLC Control System	Yes

Key Features

DEG-3L Semi Automatic PET Bottle Blow Molding Machine is designed for producing 0.1–2L PET bottles with high efficiency and reliability.

Suitable for manufacturing cooking oil bottles, mineral water bottles, soft drink bottles, and detergent bottles.
Offers 2-cavity design with an output capacity up to 1000 bottles per hour (500ml).
Features advanced PLC control system and adjustable infrared preform heating.
Simple operation by one person and minimal installation requirements.
High air storage unit and precision temperature control ensure quality output.
Max container volume of 2L and maximum theoretical output of 900 BPH (500ml).
Equipped with 4 heating zones and independent lamp control for precise heating.
Robust construction with a net weight of 850 kg for stability during operation.

Product Description

The DEG-3L Semi Automatic PET Bottle Blow Molding Machine is ideal for industrial bottle manufacturing applications, enabling efficient production of a variety of bottles including cooking oil, mineral water, carbonated beverages, soft drinks, and detergent bottles. Designed with high precision and rugged durability, this machine supports bottle volumes from 0.1L to 2L using a 2-cavity system, ensuring a consistent output of up to 1000 bottles per hour (500ml).

2-cavity structure supports bottle production of multiple sizes and formats.
Heating provided by an advanced infrared preform heater with four heating zones, all equipped with independent temperature controls for targeted lamp adjustment and even preform heating results.
Advanced user-friendly PLC control interface with time-control accuracy up to 0.01 second guarantees reliable operation and easy process tuning.
High-performance air compressors with 30–40 bar pressure (high) and 10 bar (low) ensure efficient mold blowing and clamping operations.
Clamping force rated at 100kN and a clamping stroke of 160mm provide secure and stable mold performance.

The machine is constructed for easy installation, requiring minimal start-up adjustments, and can be operated by a single user with no special training. A robust high-capacity air storage module enables reliable operation, and finished bottle waste rate is less than 0.1%, optimizing material usage and quality assurance.

Industrial Use Cases: Beverage bottling, edible oil packaging, household liquids, laboratory bottle manufacturing, commercial packaging facilities, chemical and detergents packaging.
