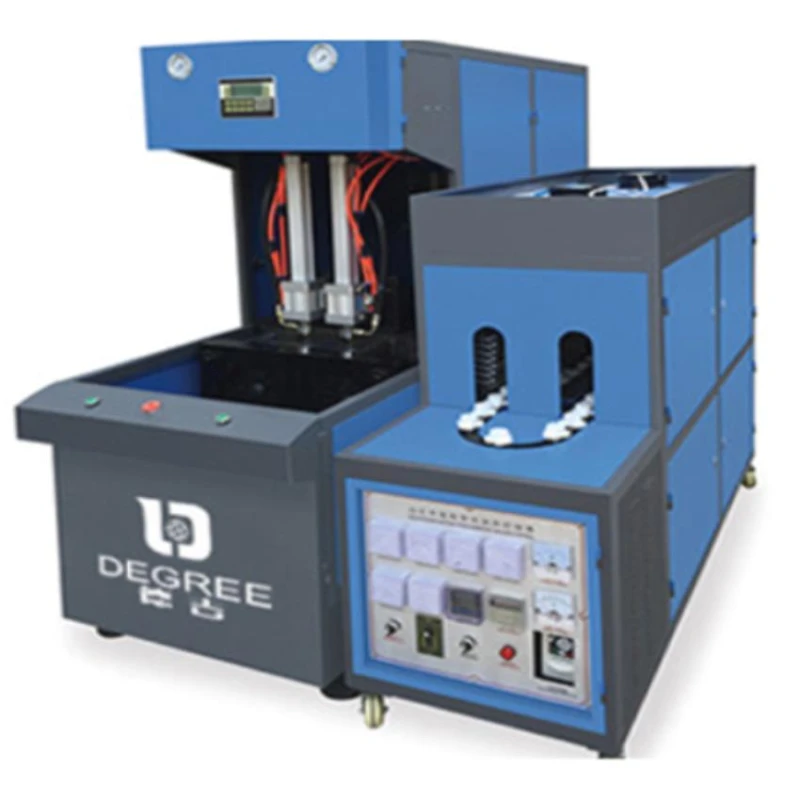

Semi Automatic Plastic PET Bottle Blow Molding Machine DEG-3L, 2 Cavity, 0.1–2L, 900 BPH, 100KN Clamping, 10KW, 380V
Specifications
| Net Weight | 850 kg |
|---|---|
| Machine Type | Semi Automatic PET Bottle Blow Molding Machine |
| Model | DEG-3L |
| Output Capacity | 900 BPH (500ml) |
| Clamping Force | 100 KN |
| Number of Cavities | 2 |
| Max Container Volume | 2 L |
| Clamping Stroke | 160 mm |
| Max Stretching Stroke | 360 mm |
| Max Mold Thickness | 300 mm |
| Max Container Diameter | 360 mm |
| Max Container Height | 380 mm |
| Neck Diameter Range | 18–120 mm |
| Number of Heating Zones | 4 Sections |
| High Air Compressor Pressure | 30–40 Bar |
| Low Air Compressor Pressure | 10 Bar |
| Voltage Standard | 380 V/3PH/50Hz |
| Bottle Volume Range | 0.1–2 L |
| Machine Dimensions (L×W×H) | 1450 × 600 × 1700 mm |
| Preform Heater Dimensions | 1800 × 700 × 1400 mm |
| Total Power Full Loaded | 10 KW |
Key Features
DEG-3L Semi Automatic PET Bottle Blow Machine provides reliable production of plastic bottles ranging from 0.1L to 2L with high accuracy and output.
- Suitable for producing cooking oil, water, carbonated, soft drinks, and detergent bottles.
- Features 2-cavity design to achieve an output of up to 900–1000 bottles per hour (BPH) for 0.5L bottle size.
- Advanced PLC-based control system with high time-control precision for consistent operation.
- Equipped with infrared preform heater, adjustable heating lamps, and four heating zones for ideal preform results.
- Clamping force of 100KN, with a maximum container diameter of 360mm and height of 380mm.
- Waste rate maintained below 0.1% to reduce material losses during production.
- Requires only one operator and supports simple installation and quick startup.
- Operates on 380V three-phase power, total loaded power 10KW.
- Comes with dedicated air storage unit, high/low air compressor support, and independent temperature zones.
- Robust construction with compact machine dimensions and net weight of 850 kg for reliable industrial performance.
Product Description
DEG-3L Semi Automatic Plastic PET Bottle Blow Molding Machine is engineered for efficient production of high-quality plastic bottles in the 0.1–2L volume range. Designed for manufacturing PET bottles used for cooking oil, mineral water, carbonated drinks, soft drinks, and detergents, this machine supports a wide range of applications across beverage, food, and chemical industries.
This two-cavity bottle blowing machine delivers an output capacity of up to 900 bottles per hour (BPH) for 0.5L containers, using advanced PLC controls and a fully adjustable, infrared heater system with four temperature zones. Independent lamp adjustment ensures optimal preform heating, reducing the waste rate of finished bottles below 0.1%.
- 2-cavity design allows simultaneous production of two bottles, increasing throughput.
- Clamping force is rated at 100KN, with a 160mm clamping stroke and 360mm maximum stretching stroke for versatile mold handling.
- Accepts bottles with neck diameters from 18mm to 120mm, and container diameters up to 360mm.
- Operates at 10KW total loaded power on standard 380V, 3-phase, 50Hz supply.
- Machine footprint: 1450 × 600 × 1700 mm — preform heater: 1800 × 700 × 1400 mm.
- Air supply: 30–40 bar high air compressor and 10 bar low air compressor supported.
- Equipped with a special air storage unit and waste-minimizing operation.
- Simple one-person operation, quick installation and startup, ideal for small to medium production setups.
Typical use: Industrial, beverage, food, and chemical manufacturing — ideal for SMEs and large-scale bottle plants requiring flexibility and high output. The robust construction and user-friendly controls ensure little training is required and minimal downtime.
EnvMart offers a broad range of automated and semi-automatic bottle blowing machines for PET production. Explore more PET blow molding options in our "Processing Machines & Equipment" category.
