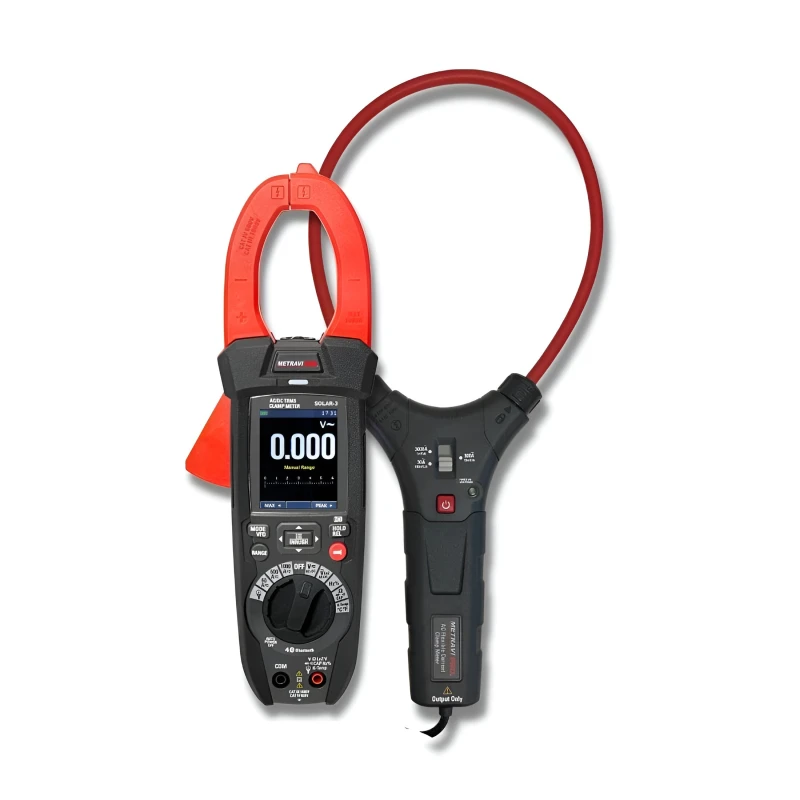

Metravi TRMS AC/DC Digital Clamp Meter PRO Solar-3 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metravi TRMS AC/DC Digital Clamp Meter PRO Solar-3

Name: Metravi TRMS AC/DC Digital Clamp Meter PRO Solar-3
Brand: Metravi
SKU: ADSQV
Price: 244.87 USD
Availability: InStock



SKU ADSQV Category Clamp Meters Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	TRMS AC\|DC Digital Clamp Meter
Temperature Accuracy	±(3% reading+5°C)
Frequency	60.00Hz/600.0Hz/6.000kHz/60.00kHz/600.0kHz/6.000MHz/10.00MHz
Brand	Metravi
Model	Pro Solar-3
EMC	IEC/EN61326-1
Safety	IEC/EN61010
DC Voltage Accuracy	±(0.8%+5 digits)
Resistance	600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
Frequency Accuracy	±(0.2%+5 digits)
Capacitance	60.00nF/600nF/6.000µF/60.00µF/600.0µF/6000µF/60.00mF/100.0mF
DC Current	6.000A/60.00A/1000A
Resistance Accuracy	±(0.8%+5 digits)
DC Current Accuracy	±(2.0%+8 digits)
Continuity Test	Yes
Capacitance Accuracy	±(3.0%+8 digits)
DC Voltage	600.0mV/6.000V/60.00V/600.0V/1500V
Ac Voltage(T-Rms)	6.000V/60.00V/600.0V/1000.0V
Ac Voltage(T-Rms) Accuracy	±(1.2%+5 digits)
Loz Ac Voltage(T-Rms)	6.000V/60.00V/600.0V
Loz Ac Voltage(T-Rms) Accuracy	±(3.0%+40 digits)
Ac+Dc Trms Voltage(50Hz–1Khz)	6.000V/60.00V/600.0V/1000.0V
Ac+Dc Trms Voltage(50Hz–1Khz) Accuracy	±(2.5%+20 digits)
Loz Ac+Dc Trms Voltage	6.000V/60.00V/300.0V
Loz Ac+Dc Trms Voltage Accuracy	±(3.5%+40 digits)
Ac Trms Current(50Hz–60Hz)	6.000A/60.00A/1000A
Ac Trms Current(50Hz–60Hz) Accuracy	±(2.5%+5 digits)
Flexible Coil Current(50Hz–400Hz)	30.00A/300.0A/3000A
Flexible Coil Current(50Hz–400Hz) Accuracy	±(3.0%+5 digits)
Protection Against Overcharge	1000A DC/AC RMS and 1000V DC/AC RMS
Temperature With K-Type Probe	-40.0°C–1000.0°C
Over-Voltage Protection	CAT IV 600V CAT III 1000V CAT II 1500V.

Key Features

6000 Count 2.4” TFT Color LCD display
DC Current, AC, AC+DC TRMS Current
DC Voltage, AC, AC+DC TRMS Voltage
Resistance and Continuity Test
Diode Test
Capacitance
Frequency
Duty Cycle
Temperature with K-type Probe
Jaw Dia 34mm
Flexible Coil for measuring upto 3000A
Inrush Current Measurement
LoZ Voltage measurement
VFD Measurement
Data Hold / Relative measurements
Trend Capture
In-built Flashlight to access dark areas
Rechargeable battery and battery charger
Non-contact Voltage Detection (NCV)
Data Logger with Date and Time stamp
Bluetooth and free App for sharing, recording & analysing on Smartphone

Product Description

Metravi Pro Solar-3 Digital Clamp Meter is a high-performance, multifunction electrical testing instrument designed for professionals working in solar installations, industrial maintenance, and advanced electrical diagnostics. Equipped with a bright TFT LCD display, it ensures clear visibility of readings in all working conditions. This battery-operated device features a 34 mm jaw opening, making it suitable for measuring current in larger conductors with ease. It supports a wide DC voltage range up to 1500 V, along with comprehensive measurement capabilities for resistance, capacitance, and frequency, making it ideal for photovoltaic system testing. With built-in non-contact voltage detection, data logging, Bluetooth connectivity, and data hold function, it enhances efficiency and accuracy during field operations. The Pro Solar-3 also includes inrush current measurement, duty cycle analysis, and a flashlight for low-light environments. Its IP65-rated rugged design ensures durability in harsh conditions, while auto power-off helps conserve battery life. Perfect for engineers and technicians, this clamp meter delivers reliable, precise, and versatile electrical measurements. Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.
