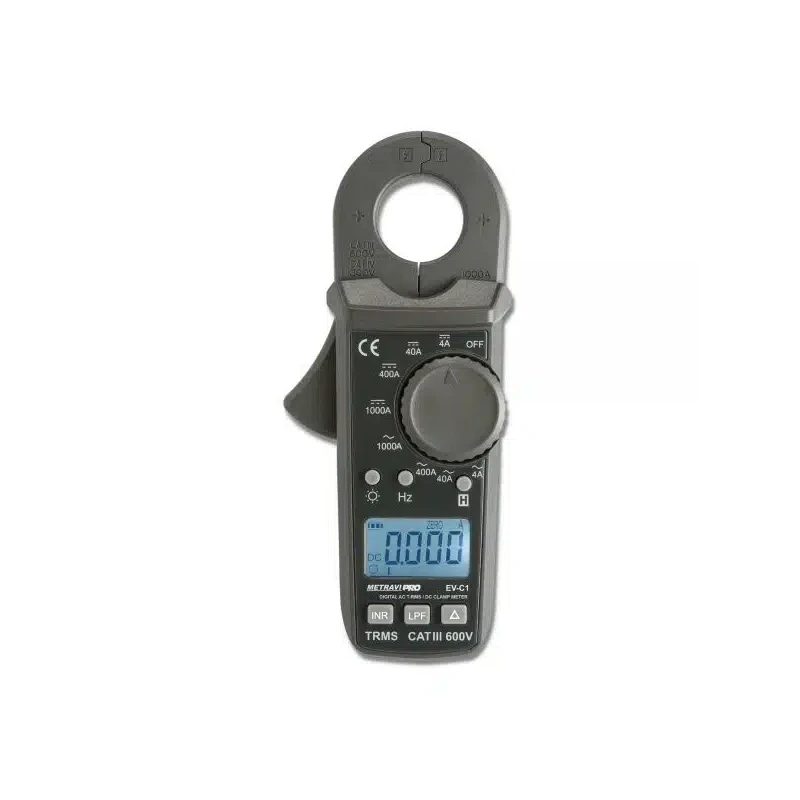

Metravi Digital TRMS AC/DC Clamp Meter PRO EV-C1
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi Pro EV-C1 Digital TRMS AC/DC Clamp Meter / Carrying bag x 1 / User Manual x 1 / 1.5V AAA battery x 2. |
| Operating Humidity | Less than 85%RH |
| Power Consumption | 22mA with backlight off approx |
| Display | 3-3/4 LCD with 20-segment bargraph |
| Brand | Metravi |
| Dimension | 152×66×36mm (6.0×2.6×1.4in) |
| Operating Temperature | -10–50°C |
| Storage Temperature | -20–60°C |
| Battery type | Two 1.5V LR03 AAA size |
| Model | Pro EV-C1 |
| Weight | 190g (battery included) |
| Sampling Time | 3 times/sec (digits)/30 times/sec (bargraph) |
| Storage Humidity | Less than 75%RH |
| Range Selection | Manual |
| Conductor Size | 0.98"(25mm) max approx |
| Overload Indication | "OL" |
| Operating Altitude | Up To 2000m |
Key Features
- Min. resolution 1 mA AC/DC and max. current range of 1000A AC/DC.
- Super-wide range 4.000A/ 40.00A/ 400.0A/ 1000A AC/DC.
- Best accuracy ±1.5%±3dgts for all ranges.
- Accurate and solid AC/DC mini pocket-size clamp meter.
- True RMS measurement.
- One touch zero (Δ) for DCA adjustment.
- 25 mm diameter jaw..
- In-Rush Current measurement with 100mS integration time.
- Non-contact Frequency measurement (min. sensitivity 0.08 ACA).
- Low Pass Filter (LPF) at 1 KHz cut-off frequency.
- Fast bargraph display (30 times/sec.) for transient observation.
- Data Hold function.
- Low Battery Indication.
Product Description
The Metravi PRO EV-C1 is a state-of-the-art TRMS clamp meter specifically crafted for electric vehicle (EV) diagnostics and high-voltage electrical systems. It measures AC/DC current and voltage, resistance, frequency, temperature, and includes support for diode and continuity tests. Its wide clamp opening accommodates thick EV cables, while the True RMS function ensures precise readings in nonlinear environments. Equipped with NCV detection and a contactless IR thermometer, it boosts safety during inspections. Its large, backlit LCD and ergonomic design enhance field usability. Built to meet the demands of EV charging stations, powertrains, and battery diagnostics, the PRO EV-C1 is a crucial tool for modern-day electrical mobility and automotive technicians.
Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.
