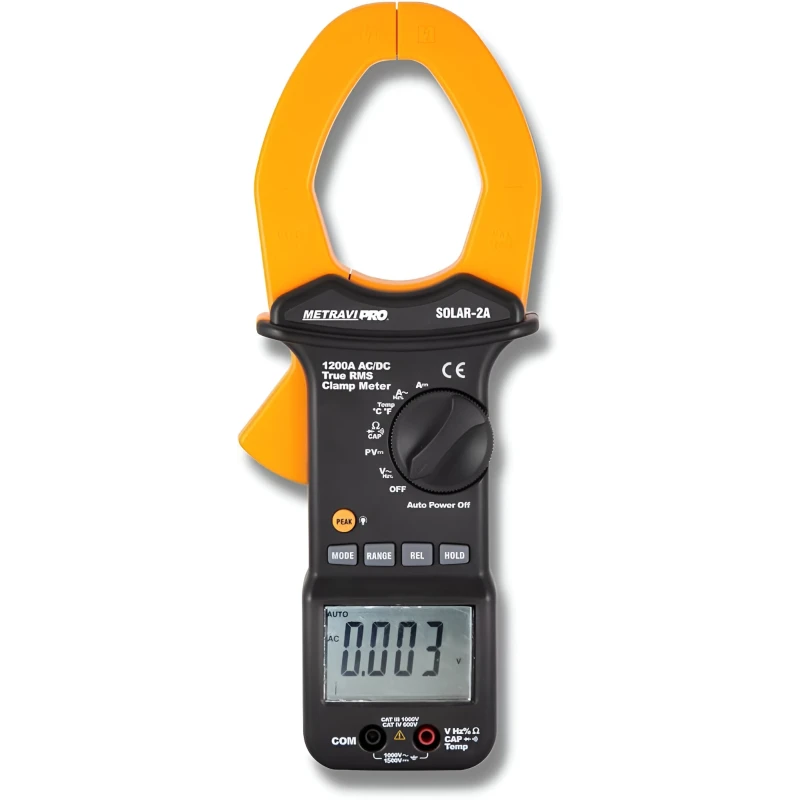

Metravi Digital TRMS AC/DC Clamp Meter PRO Solar-2A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi Pro Solar-2A Digital TRMS AC|DC Clamp Meter / Test Lead / Instruction Manual |
| Operating Humidity | Max 80% up to 87°F (31°C) decreasing linearly to 50% at 104°F (40°C) |
| Display | 3-3/4 digits (4000 counts) backlit LCD with buzzer |
| Diode Test | Test current 0.9mA typical/Open circuit voltage approx 3.2V DC typical |
| Brand | Metravi |
| Operating Temperature | 41–104°F (5–40°C) |
| Storage Temperature | 4–140°F (-20–60°C) |
| Battery | One 9V (NEDA 1604) battery |
| Model | Pro Solar-2A |
| Temperature Sensor | Type-K thermocouple |
| Measurement Rate | 3 times per second nominal |
| Auto Power Off | Approx 15 minutes |
| Input Impedance | 10MΩ (VDC and VAC) |
| Dimensions/Weight | 270×107×50mm/554g |
| Storage Humidity | Less than 80% |
| Low Battery Indication | Low battery symbol displayed |
| Overrange Indication | "OL" displayed |
| Continuity Check | Sounds at Less than (50±30)Ω |
| Operating Altitude | 2000m (7000ft) max |
| Peak | Captures peaks Greater than 1ms |
| Clamp Jaw Opening | 2"(52mm) approx |
Key Features
- Display: 3-3/4 digits (4000 counts) backlit LCD
- Jaw Opening: 2” (52mm) approx.
- PV DC Voltage: 400mV / 4V / 40V / 400V / 1500V
- Accuracy: ± (1% + 3d)
- AC Voltage T-RMS: 4V / 40V / 400V / 1000V
- Accuracy: ± (1.2% + 5d)
- AC Current : 400A / 1200A
- Accuracy: ± (3.0% + 3A)
- DC Current: 400A / 1200A
- Accuracy: ± (3.0% + 3A)
- Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
- Accuracy: ± (1.0% + 4d)
- Frequency: 10Hz to 100kHz / 40Hz to 1kHz
- Accuracy: ± 1.0% ±5 digits
- Capacitance: 40nF / 400nF / 4µF / 40µF / 400µF
- Accuracy: ± (3.5% + 10d)
- Diode Testing
- Continuity Test
Product Description
The Metravi PRO Solar-2A is a cutting-edge TRMS clamp meter designed for solar installations and energy systems. It precisely measures AC/DC current, voltage, resistance, frequency, temperature, and more. Tailored for renewable energy professionals, the Solar-2A features True RMS accuracy even in complex power environments. Its large clamp design and intuitive interface allow quick diagnostics in PV arrays, inverters, and battery storage systems. Advanced safety features include NCV detection, backlit display, and overload protection. The meter supports diode testing, continuity checks, and includes data hold and peak value functions. Built to withstand outdoor work, it’s a must-have for solar technicians and electrical engineers managing high-performance renewable systems.
Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures AC and DC current up to 1200A, with a lower range of 400A.
The accuracy for AC voltage measurements is ± (1.2% + 5 digits) across the ranges of 4V, 40V, 400V, and 1000V.
It can measure both AC and DC voltage, with ranges including 400mV, 4V, 40V, 400V, and 1500V for DC, and 4V, 40V, 400V, and 1000V for AC.
The clamp meter features a 3-3/4 digits (4000 counts) backlit LCD display, which includes a buzzer for alerts.
It operates effectively within a temperature range of 41–104°F (5–40°C).
Yes, it supports diode testing with a typical test current of 0.9mA and an open circuit voltage of approximately 3.2V DC.
The maximum operating humidity is 80% at 87°F (31°C), decreasing linearly to 50% at 104°F (40°C).
The dimensions are 270×107×50mm and it weighs 554g.
It uses one 9V (NEDA 1604) battery for operation.
It includes advanced safety features such as NCV detection, overload protection, and low battery indication.
The capacitance measurement range is from 40nF to 400µF, with an accuracy of ± (3.5% + 10 digits).
The package includes the Metravi Pro Solar-2A Digital TRMS AC/DC Clamp Meter, a test lead, and an instruction manual.
