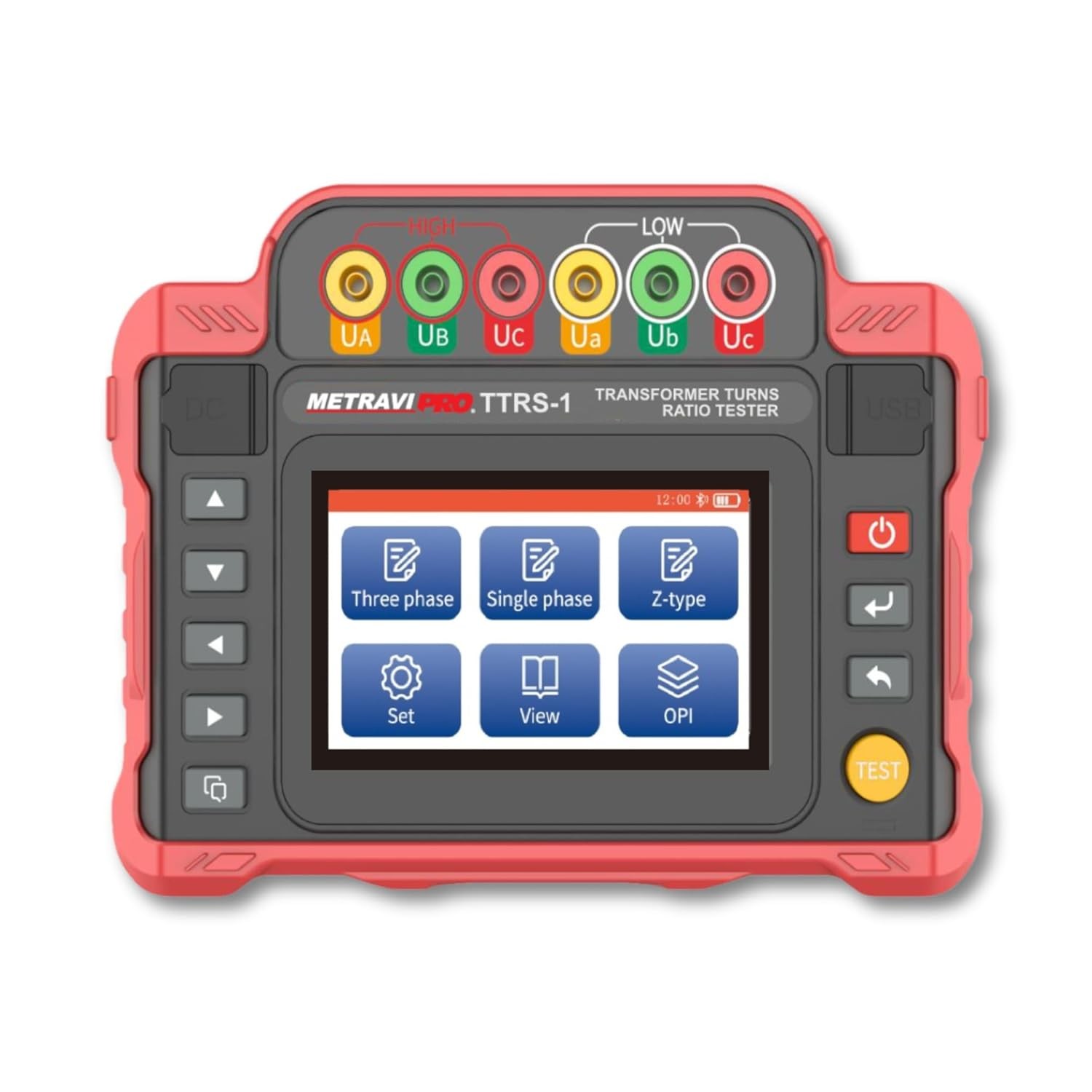

Metravi Transformer Turns Ratio Tester PRO TTRS-1
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO TTRS-1 Transformer Turns Ratio Tester / Test Cables / Software CD / USB Cable / User Manual / Carrying Case / Charger |
| Brand | Metravi |
| Power | DC9.6V 3800mAh large-capacity lithium battery |
| Model | PRO TTRS-1 |
| Weight | Instrument 1.5kg(including battery)/Test cables 1.7kg |
| LCD Size | 108mm×65mm |
| Overload Protection | Yes |
| Display Mode | 5-inch touchscreen(854×480) full-color LCD |
| Insulation resistance | Greater than 10MΩ(500V between circuit and housing) |
| Data Storage | 500 Sets |
| Storage Temperature & Humidity | -20°C–60°C≤70%RH |
| Computer Connection | Yes via USB cable |
| Auto shut off | Settable 1–30min |
| Withstand Voltage | AC3700V rms(between circuit and enclosure) |
| Instrument Size | 229mm×166mm×74mm |
| Charging Function | Yes |
| Power Dissipation | Standby≈2W(100% brightness)/Measured≈12W max |
| Type Of Test Product | Single-phase transformer/Three-phase transformer/Z-type transformer/PT/CT |
| Variable Ratio Range | 0.9–10000 |
| Interactive Mode | Touch screen/Button |
| Mobile App | Yes via Bluetooth |
| Data Access | Available |
| Working Temperature & Humidity | -10°C–40°C≤70%RH |
| Electromagnetic Characteristics | IEC61010-4-3 Wireless frequency field≤1V/m |
| Suitable Safety Regulations | IEC61010-1 CAT III 600V Pollution grade 2 |
Key Features
- Various test modes: single-phase test, three-phase test, three-phase blind test, Z-type test
- Large capacity storage: It can store 500 sets of test data
- Wide measurement range: variable ratio 0.9~10000
- Measurement accuracy: 0.2% when the variable ratio is 0.9 to 2000, and 0.5% from 2000 to 10000
- Max. resolution: 0.0001
- Support for computer-side control
- Support for Bluetooth control
Product Description
The Metravi PRO TTRS-1 Transformer Turns Ratio Tester is a precision tool used to verify the turns ratio of power, distribution, and instrument transformers. It helps identify winding errors, shorted turns, and faulty transformer configurations. With its user-friendly interface, the PRO TTRS-1 enables quick setup and test execution with automatic calculation of ratio and phase deviation. The device features a high-resolution display, built-in memory, and USB interface for data transfer. Its rugged design ensures dependable operation in field conditions. Suitable for substation technicians, transformer manufacturers, and utility maintenance teams, the TTRS-1 delivers accurate and fast diagnostics for safe and reliable transformer operation.
