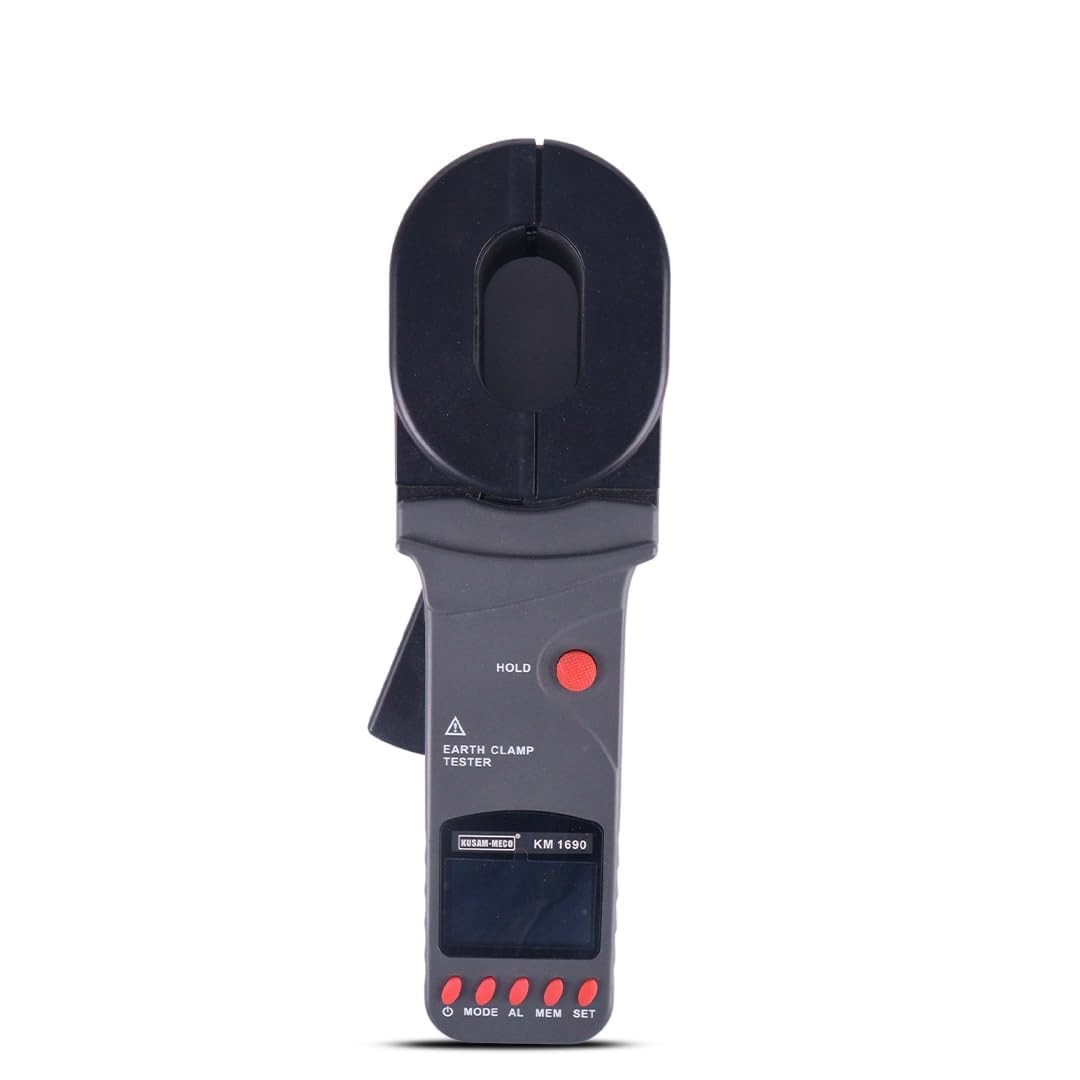

Kusam Meco Clamp Ground Resistance Tester KM1690
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 1690 Clamp Ground Resistance Tester / 5 Battery / Calibration Ring / Instruction Manuals / Instruments Box |
| Resolution | Resistance 0.001Ω/Current 0.01mA |
| Accuracy | Resistance ±1%±0.01Ω/Current ±2%±1mA |
| Power Consumption | Less Than 50mA |
| Measurement Method | Mutual Induction |
| Display | 4digitLCD(46mm*29mm)Blackscreen |
| Range | Ground Resistance 0.01Ω~1200Ω/Current 0.00mA~20.0A |
| Brand | Kusam Meco |
| Power Supply | 4section5AlkalineDryBatteries |
| Dimension | 85mm*58mm*285mm |
| Storage Temperature | -20~60°C Less Than 70%RH |
| Alarm | Beepwhenvalueexceedssetlimit |
| Function | Ground Resistance/Loop Resistance/Leakage Current Test |
| Model | KM1690 |
| Temperature | -10~40°C Less Than 80%RH |
| Weight | 1180g(Withbattery) |
| Safety Standard | IEC61010-1CATIII300V/CATIV150V/PollutionDegree2/IEC61010-031/IEC61557-1 |
| Insulation resistance | ≥20Ω(500Vbetweeninner&Outercircuit) |
| Auto Power Off | 5minafterboot |
| Data Storage | 300groupswithMEMindicator |
| Clamp Diameter | 55mm*32mm |
| Sampling Speed | 2times/Sec |
| Pressure Resistance | AC3700V(Rms) |
| Battery Voltage | Realtimeindication |
| Overflow Display | OLsymbol |
| External Magnetic Field | Less Than 40A/M |
| External Electric Field | Less Than 1V/M |
| Data Review | MRsymboldisplay |
| Ambient Condition | 23°C±5°C Less Than 75%RH |
| Interference Test | Automaticinterferencesignal(NOISE)Indicator |
Key Features
- Explosion-proof earth resistance tester with new black screen design
- Ω+A simultaneous display with fast self-test function
- High anti-interference technology with long-life clamp head
- Resistance range 0–1200Ω with 0.001Ω resolution
- Stores up to 300 sets of readings
Product Description
The Kusam Meco KM1690 Clamp Ground Resistance Tester measures ground resistance, loop resistance, and leakage current using an advanced inductive method. It eliminates the need for auxiliary electrodes or ground disconnection, offering fast and safe operation. The ergonomic clamp design and high-accuracy sensor ensure stable results. Ideal for electrical maintenance, building grounding systems, and industrial facilities, it enhances safety by detecting ground faults efficiently. Compact and rugged, it’s suitable for field use and continuous testing applications.
Available on EnvMart, these Clamp Ground Testers measure ground resistance without disconnection. Kusam Meco Devices offer safety and precision for grounding verification in electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM1690 measures ground resistance in the range of 0.01Ω to 1200Ω and current from 0.00mA to 20.0A.
The resolution for resistance measurements is 0.001Ω, while for current measurements it is 0.01mA.
The accuracy for resistance measurements is ±1% ±0.01Ω and for current measurements is ±2% ±1mA.
The Kusam Meco KM1690 is powered by 4 sections of 5 alkaline dry batteries.
The dimensions of the Kusam Meco KM1690 are 85mm x 58mm x 285mm, and it weighs 1180g including the battery.
The Kusam Meco KM1690 can store up to 300 groups of readings, which can be reviewed using the MR symbol display.
The Kusam Meco KM1690 complies with safety standards IEC61010-1 CAT III 300V, CAT IV 150V, Pollution Degree 2, IEC61010-031, and IEC61557-1.
The sampling speed of the Kusam Meco KM1690 is 2 times per second.
Yes, the Kusam Meco KM1690 features an automatic power-off function that activates 5 minutes after booting.
The Kusam Meco KM1690 operates optimally in ambient conditions of 23°C ± 5°C and less than 75% relative humidity.
The Kusam Meco KM1690 uses a mutual induction method for measuring ground resistance, loop resistance, and leakage current.
