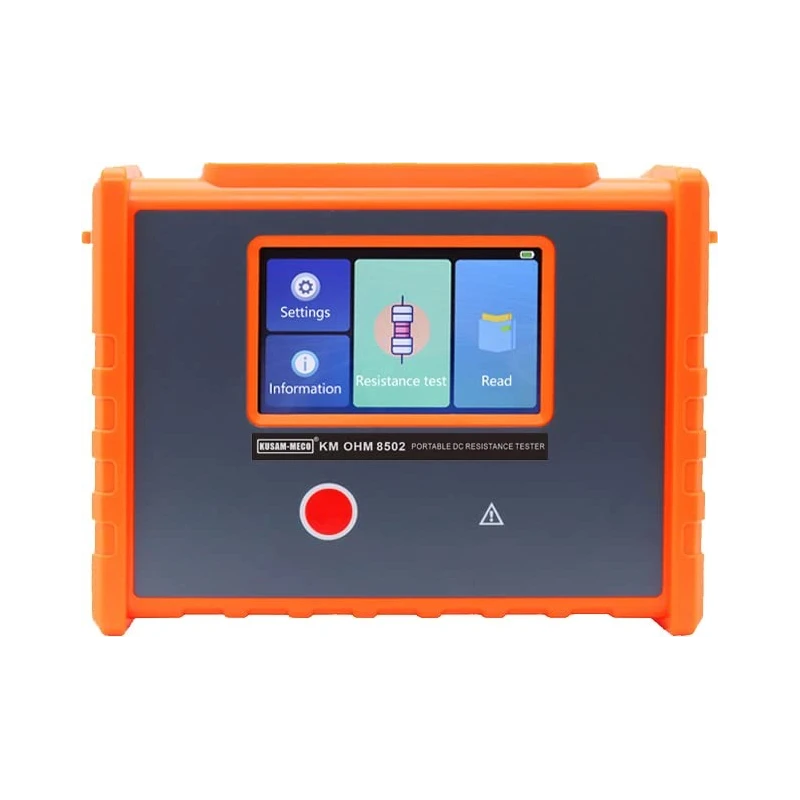

Kusam Meco Handheld Dc Resistance Tester KMOHM8502
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM OHM 8502 HANDHELD DC RESISTANCE TESTER / Test Wire / USB Cable / Charger / Software CD / Specification And Warranty Certificate / Instruments Box |
| Resistance Range | 10.0mΩ~50.00kΩ |
| Brand | Kusam Meco |
| Power | DC12.6V2500mAh Lithium Battery |
| Precision | ±0.2%FS±10dgt |
| Function | Transformer DC Resistance Tester |
| Resolution ratio | 0.1mΩ |
| Model | KMOHM8502 |
| Temperature | -10°C~40°C Less Than 70%RH |
| Weight | Instrument Equal to 1100g(Including Batteries)/Test Line Equal to 850g |
| LCD Size | 108×65mm |
| Overload Protection | Yes |
| Backlight | Yes(Suitable For Dark Places) |
| Display Mode | LCD Full-Color Display |
| Insulation resistance | Greater Than 10MΩ(500V) |
| Data Storage | 500groups |
| Storage Temp | -20°C~60°C Less Than 70%RH |
| Detection method | Four-Wire Test |
| Measuring current | 10A/5A/1A/0.1A/10mA/1mA |
| USB interface | Yes |
| Auto Power-off | After15minutes |
| Withstand Voltage | AC3700V RMS(Circuit-Housing) |
| Instrument Size | 240×188×85mm |
| Communication Line | 1USB Cable |
| Overflow Display | "OL"Symbol Shown On Overrange |
| Data Review | Data Access Function |
| Max Short Circuit Current | 10A |
| Self Discharge | Yes |
| Charging Function | Yes |
| Touch Screen Operation | Yes |
| Cell Voltage | Real-Time Display |
| Power Dissipation | Standby≈116mA(20%Brightness)/Measurement≤27W |
| Electromagnetic Property | IEC61010-4-3/Wireless Frequency Electromagnetic Field≤1V/M |
Key Features
- Wide measurement range from 10 µΩ to 50 kΩ with 0.1 mΩ resolution
- Selectable test current between 1 mA and 10 A for flexible applications
- 4-wire Kelvin connection ensures accurate low-resistance readings
- Large color LCD with data logging for up to 500 sets
- Rechargeable battery, USB connectivity, and overload protection
Product Description
The Kusam Meco KMOHM8502 is a handheld DC resistance tester engineered for precision and durability in professional electrical and industrial environments. Offering an impressive measurement range from 10 microohms to 50 kiloohms with 0.1 milliohm resolution and ±0.2% accuracy, it ensures consistent and reliable performance. Equipped with a four-wire Kelvin measurement method, the tester provides selectable test currents up to 10A for versatile testing applications. Its large color backlit LCD and intuitive interface allow easy data interpretation. With 500-data memory, USB connectivity, rechargeable battery, and overload protection, it is ideal for quality control, transformer winding verification, cable resistance checks, and other diagnostic testing tasks requiring accuracy and efficiency.
Available on EnvMart, these DC Resistance Testers feature 4-wire measurement with 10A range and backlit LCD. Kusam Meco Testers are portable, high-accuracy devices ideal for electrical maintenance and circuit diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KMOHM8502 has a measurement range from 10 µΩ to 50 kΩ.
The resolution of the Kusam Meco KMOHM8502 is 0.1 mΩ.
The Kusam Meco KMOHM8502 offers selectable test currents of 10A, 5A, 1A, 0.1A, 10mA, and 1mA.
The Kusam Meco KMOHM8502 employs a four-wire Kelvin measurement method to ensure accurate low-resistance readings.
The Kusam Meco KMOHM8502 features a large color backlit LCD display, measuring 108×65mm.
The maximum short circuit current for the Kusam Meco KMOHM8502 is 10A.
The Kusam Meco KMOHM8502 is powered by a DC 12.6V 2500mAh lithium battery.
The package contents of the Kusam Meco KMOHM8502 include the tester, test wire, USB cable, charger, software CD, specification and warranty certificate, and an instrument box.
The operating temperature range for the Kusam Meco KMOHM8502 is -10°C to 40°C with less than 70% relative humidity.
The Kusam Meco KMOHM8502 can store up to 500 sets of data.
The Kusam Meco KMOHM8502 includes overload protection and a display for overrange conditions, indicated by an "OL" symbol.
The weight of the Kusam Meco KMOHM8502 is approximately 1100g including the batteries and 850g for the test line.
