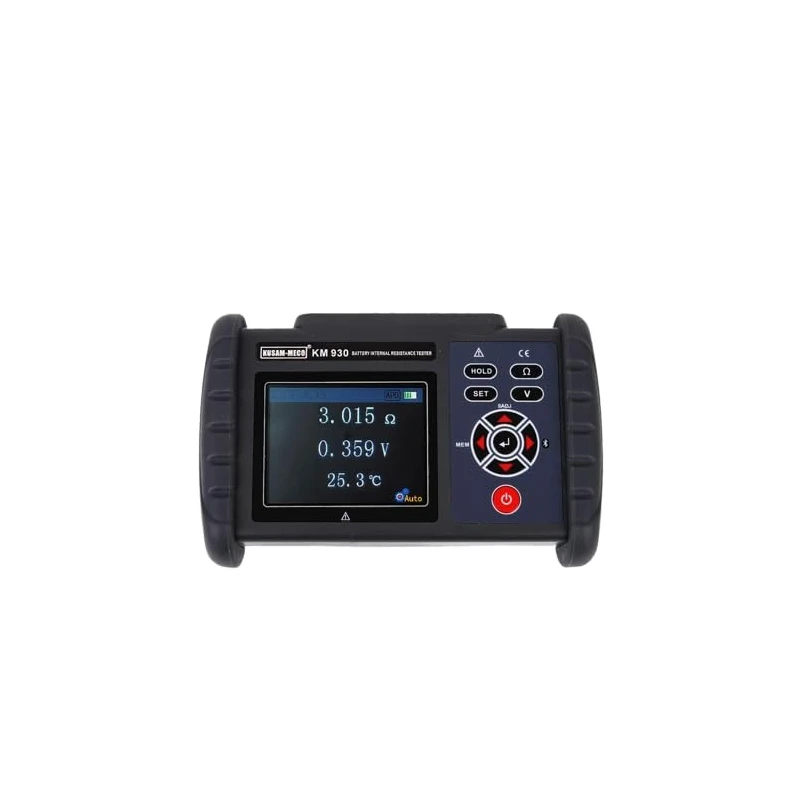

Kusam Meco Battery Internal Resistance Tester KM930
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 930 Battery Internal Resistance Tester / Test Leads / USB Cable / Charger / Software CD / Instruction Manuals / Instruments Box |
| Max Input Voltage | DC 70V (No AC Input) |
| Power Consumption | 300 MA~500 MA |
| Measurement Method | 1 KHz AC 4-Terminal Test Method / NTC Temperature Sensor 10 KΩ |
| Measuring range | Internal Resistance 0.000 MΩ~3.100 Ω / Voltage 0.000V~71.00V / Temperature -10°C~60°C |
| Brand | Kusam Meco |
| Power Supply | DC 3.7V Lithium Battery |
| Temperature Resolution | 0.1°C |
| Response time | 200 Ms |
| Function | Battery Internal Resistance / Voltage And Temperature Measurement |
| Model | KM930 |
| Weight | 480 G (With Battery) |
| Safety Standard | IEC 61010 |
| LCD Size | 70.1×52.6mm/ 3.5-Inch 320×240 True Color |
| Insulation resistance | Greater Than 20 MΩ (500V Test) |
| Auto Power Off | 15 Min (Adjustable) |
| Accuracy Range | 23°C±5°C / Below 75% RH |
| USB interface | Yes / Data Upload And Print |
| Hold Function | Manual & Automatic Data Retention |
| Voltage Resolution | 1 MV |
| Storage Temp & Humidity | -20°C~60°C / Less Than 70% RH |
| Withstand Voltage | AC 3700V RMS |
| Resistance Resolution | 1 µΩ |
| Instrument Size | 190×121×51 mm |
| Working Temp & Humidity | -10°C~40°C / Less Than 80% RH |
| Measure Time | 2 Seconds |
| External Magnetic Field | Less Than 40 A/M |
| External Electric Field | Less Than 1 V/M |
| Judgment Function | Pre-Set PASS / WARNING / FAIL Thresholds |
| Battery Voltage Display | 5-Bar Indicator With Low-Battery Reminder |
Key Features
- 4-terminal AC measurement for precise internal resistance readings
- Displays resistance, voltage, and temperature simultaneously
- Microprocessor-controlled 16-bit ADC for accuracy
- Bluetooth connectivity and data storage for analysis
- Portable, user-friendly design with auto power-off and alarm
Product Description
Kusam Meco KM930 Battery Internal Resistance Tester measures internal resistance, voltage, and temperature of lithium and lead-acid batteries using a 4-terminal AC method. It allows testing without interrupting UPS or power systems. Featuring Bluetooth connectivity, data storage, and alarm system, it ensures precise and fast results. Ideal for labs, production, and maintenance, it guarantees consistent accuracy and reliability in battery diagnostics.
Available on EnvMart, these Battery Testers measure internal resistance, voltage, and temperature with high precision. Kusam Meco Instruments ensure reliability and efficiency in battery maintenance and testing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM930 uses a 1 KHz AC 4-terminal test method along with an NTC temperature sensor for accurate measurements.
The KM930 has a measuring range for internal resistance from 0.000 MΩ to 3.100 Ω and for voltage from 0.000V to 71.00V.
The maximum input voltage for the Kusam Meco KM930 is DC 70V, with no AC input allowed.
The Kusam Meco KM930 operates on a DC 3.7V lithium battery and has a power consumption of 300 mA to 500 mA.
The dimensions of the Kusam Meco KM930 are 190×121×51 mm, and it weighs 480 grams including the battery.
The Kusam Meco KM930 can measure temperatures from -10°C to 60°C with a resolution of 0.1°C.
Yes, the Kusam Meco KM930 features Bluetooth connectivity for data storage and analysis.
The Kusam Meco KM930 complies with the IEC 61010 safety standard.
The response time for measurements with the Kusam Meco KM930 is 200 milliseconds.
The Kusam Meco KM930 features a 3.5-inch LCD display with a resolution of 320×240 and true color.
The package of the Kusam Meco KM930 includes the tester, test leads, USB cable, charger, software CD, instruction manuals, and an instrument box.
The Kusam Meco KM930 has an adjustable auto power-off feature that activates after 15 minutes of inactivity.
