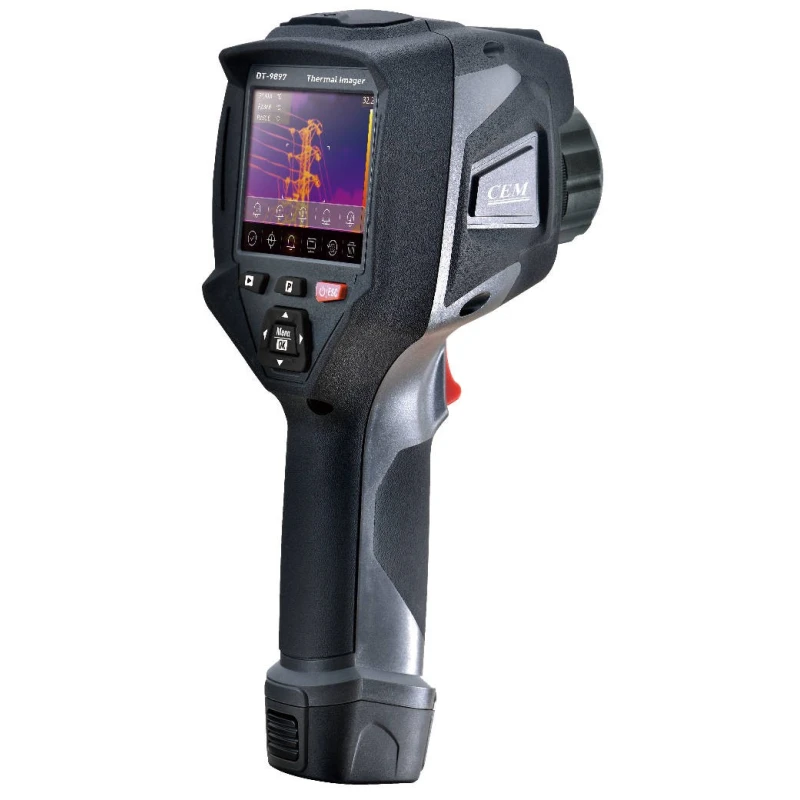

CEM High Performance Thermal Imager DT-9897
Specifications
| Country of Origin | China |
|---|---|
| Package Contents | CEM DT-9897 High Performance Thermal Imager / Hard Transport Case / Lens / AC Charger / Power Supply / Battery / Camera Leans Cap / Software & Manual / CD-ROM / Micro SD Card / USB Cable & Video Cable / Gift Box |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Display | 3.5” TFT Capacitive Touch Screen |
| Relative Humidity | 0~90% non-condensing |
| Brand | CEM |
| Operating Temperature | -20°C~+50°C (-4°F~+122°F) |
| Dimensions | 260x101x120 mm |
| Storage Temperature | -40°C~+70°C (-40°F~+158°F) |
| Spectral range | 7.5µm~14µm |
| Battery | Lithium Polymer (4 hours operating) |
| Model | DT-9897 |
| Languages | English/Chinese/French/German/Spanish |
| Weight | 820 g |
| Picture in Picture | IR Area on Visual Image or Visual Image Area on IR |
| Image frequency | 50 Hz |
| Voice annotation | Up to 60 seconds per image |
| Charging system | In-camera (AC Adapter) |
| Digital camera | Built-in 5MP Visible Light Camera |
| Video output | Composite (PAL & NTSC) |
| Color palette | GRAY/GRAYIRON/RAINBOW/FEATHER |
| Power management | Auto shutdown & sleep mode |
| IR resolution | 384x288 pixels (Focal Plane Array |
| Image mode | IR/Visual/Simultaneous IR & Visual |
| Encapsulation | IP65 |
| Minimum focus distance | 0.3 m (0.99 ft) |
| Object Temperature Range | Low -20°C~+150°C (-4°F~+302°F)/High up to 650°C (+32°F~+1202°F) |
| Storage Media | Internal Memory (1000+ images) + SD card up to 8GB |
| Field of view (FOV) | 24.6°x18.6° |
| Thermal Sensitivity/NETD | Less than 0.05°C @ +30°C (50 mK) |
| Drop Test | 2 m |
| Emissivity Adjustable | 0.01~1.0 (Adjustable)/Predefined Material Table |
| Vibration resistance | 2g (IEC60068-2-6) |
| Temperature Difference | Delta between measurement pointer and reference pointer |
| Focus Mode | Manual |
| Spatial Resolution (IFOV) | 1.15 mRad |
| Input Voltage | DC 5V~12V |
| Zoom | 1-16x Continuous Digital Zoom |
| Auto Fusion | Automatic blend percentage based on image and temperature |
| Image Modes | IR Image/Visual Image/Picture in Picture |
| Spot Meter | 3 |
| Line Measurement | 2 lines (Horizontal & Vertical) |
| Area Measurement | 3 boxes with Max/Min/Average |
| Automatic Hot/Cold Detection | Auto hot or cold spot markers |
| Isotherm Detection | High/Low/Interval Temperature |
| Measurement Corrections | Emissivity/Ambient Temp/Distance/Relative Humidity/Offset Temp |
| Laser/Flood Light | Less than Class 2 Laser / White LED Floodlight |
| Set-Up Commands | Local adaptation of units/language/date/time/information of camera |
| Video Storage Format | MPEG-4 640x480@30fps (Greater than 60 mins) |
| Video Mode | IR/Visual/Simultaneous IR & Visual |
| Image Storage Format | JPEG with Measurement Data (Greater than 1000 pictures) |
| Text Annotation | User-defined via onscreen keyboard |
| Data Interfaces | USB-mini/WiFi |
| Bump Resistance | 25g (IEC60068-2-29) |
Key Features
- Picture in Picture function Displays Thermal Image super-imposed over a digital image
- LED Flashlight allows the visual camera and fusion to be used in poorly lit environments
- Wide Temperature Range from -20 to +650°C targeting electrical and industrial applications
- ±2% Accuracy for reliable temperature measurement
- The image rotation facility allows to automatically rotate the active image
- Audio and Text annotation
- Capacitive touch screen is easier, productive and efficient to operate it
Product Description
CEM High Performance Thermal Imager DT-9897 is an advanced infrared imaging device designed for professional thermal diagnostics. It offers high-resolution imaging with superior temperature accuracy, enabling users to detect heat anomalies in electrical systems, machinery, and buildings. Featuring a large color display, intuitive menu navigation, and data storage, it simplifies predictive maintenance and energy audits. Built for industrial reliability, the DT-9897 helps identify insulation faults, hotspots, and mechanical inefficiencies with precision.
Available on EnvMart, these Thermal Imaging Cameras provide accurate heat detection and visual diagnostics for various applications. CEM Thermal Imaging Cameras feature high-resolution sensors, precise temperature measurement, and rugged design, making them ideal for electrical, mechanical, and maintenance inspections.
