Buy Mitutoyo Vernier Height Gauge at Lowest Price

Free Delivery in India | Lowest Global Shipping Charges

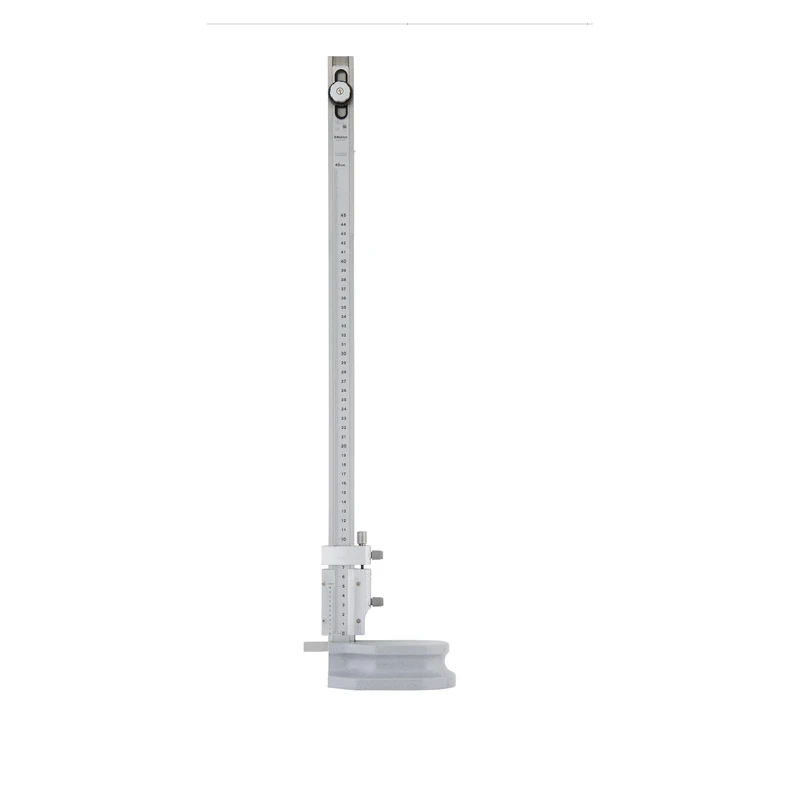

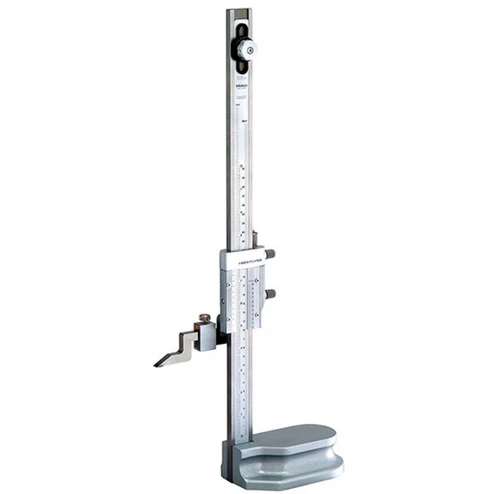

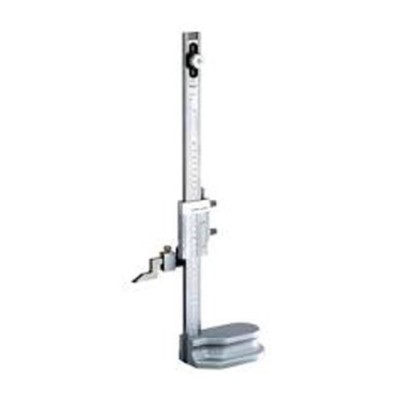

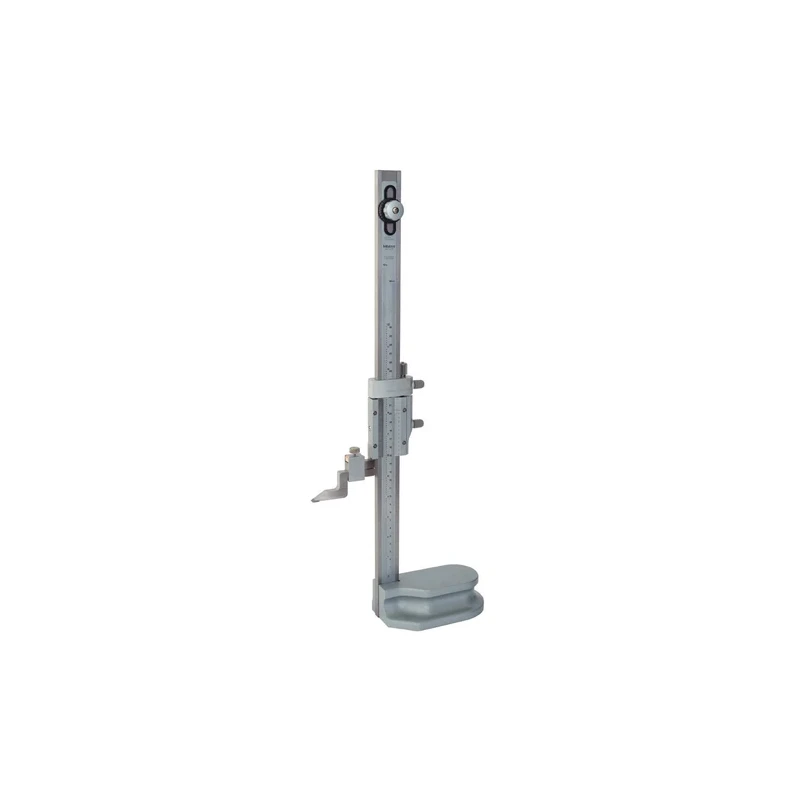

Mitutoyo Vernier Height Gauge

Name: Mitutoyo Vernier Height Gauge
Brand: Mitutoyo
SKU: ADLQE
Price: 1781.78 USD
Availability: InStock



SKU ADLQE-4 Category Height Gauge Brand Mitutoyo Condition New

Size

Model

514-109

Height

Least Count

0.001"

Accuracy

±0.003"

Scale Adjustment

1''

Fine Feed

24''

Specifications

Country of Origin	Japan
Brand	Mitutoyo
Graduation	0.02mm or .001" (0.02mm)
Main Scale Adjustment	15mm or 25mm
Slider Fine Feed	4mm/ 6mm/ 7mm/ or 20mm

Key Features

Zero reference point can be adjusted.
Stain chrome finished scales for glare-free reading.
Extra-large base for rigidity.
Reading the Vernier scales can be assisted by an optional magnifier.
Carbide-tipped scribe is provided.

Product Description

Mitutoyo Vernier Height Gauge is a manual precision tool used for marking out and measuring vertical dimensions in a metrology lab or workshop. Crafted from hardened stainless steel, the beam features fine graduations and smooth sliding movement with a locking screw. Available in various size ranges (typically 0–300 mm and up), it includes a carbide-tipped scriber for accurate marking. Its fine adjustment mechanism ensures controlled and accurate positioning. This tool is indispensable for layout tasks, dimensional inspection, and checking part heights against master gauges in machining and tool rooms.

Available on EnvMart, these Height Gauges are designed for precise vertical measurement in workshops and laboratories. Mitutoyo Height Gauges offer superior accuracy, smooth operation, and long-lasting durability, making them ideal for precision engineering and quality inspection applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Mitutoyo Vernier Height Gauge features a graduation of 0.02mm or .001" (0.02mm).

The accuracy of the Mitutoyo Vernier Height Gauge is ±0.002" or ±0.003" depending on the model.

The Mitutoyo Vernier Height Gauge is available in various size ranges, typically including 0-12", 0-18", 0-24", and 0-40".

The Mitutoyo Vernier Height Gauge is crafted from hardened stainless steel, ensuring durability and precision.

The main scale adjustment of the Mitutoyo Vernier Height Gauge can be 15mm or 25mm.

The Mitutoyo Vernier Height Gauge offers fine feed options of 4mm, 6mm, 7mm, or 20mm.

The height of the Mitutoyo Vernier Height Gauge models can vary, with options including 525mm, 675mm, 870mm, and 1340mm.

Yes, reading the Vernier scales can be assisted by an optional magnifier.

The carbide-tipped scribe is provided for accurate marking during measurement tasks.

The Mitutoyo Vernier Height Gauge is manufactured in Japan.

The Mitutoyo Vernier Height Gauge is suitable for layout tasks, dimensional inspection, and checking part heights against master gauges in machining and tool rooms.

Features such as a zero reference point adjustment, stain chrome finished scales for glare-free reading, and an extra-large base for rigidity enhance the usability of the Mitutoyo Vernier Height Gauge.
