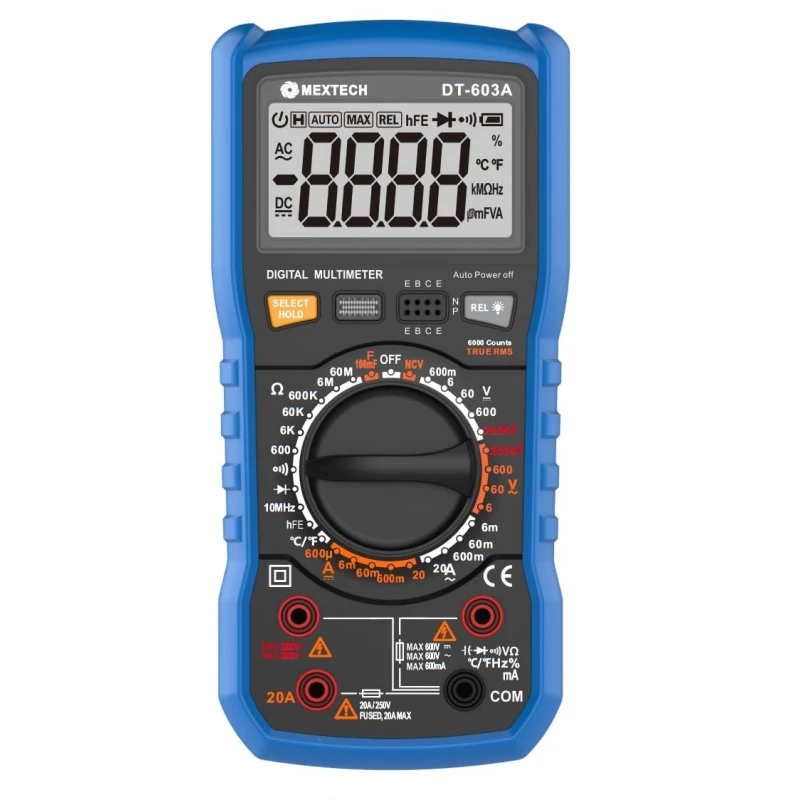

Mextech Digital True RMS Multimeter DT603A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | MEXTECH DT603A Digital True RMS MulTimeter / Instruction Manual / Test Leads / 9V Battery / Temperature Probe |
| Brand | Mextech |
| Model | DT603A |
| Temp. Accuracy | ± 1.5% |
| DC Voltage Accuracy | ± 0.5% / (± 2% at 2000V) |
| Frequency Accuracy | ± 2.0 % |
| Resistance Accuracy | ± 0.8% |
| DC Current Accuracy | ± 1.0% (up to 600mA) / ± 2.0% (in A Range) |
| Resistance ranges | 600Ω/6kΩ/60kΩ/600kΩ/6mΩ/60MΩ |
| AC Voltage Accuracy | ± 1.0% / (± 3% at 2000V) |
| Frequency Ranges | 10mHZ |
| Capacitance Ranges | 100mF (Auto Range) |
| Capacitance Accuracy | ± 3.0% |
| AC Current Accuracy | ± 1.5% (up to 600mA) / ± 3.0% (in A Range) |
| DC Voltage Ranges | 600mV/6V/60V/600V/2000V |
| AC Voltage Ranges | 6V/60V/600V/2000V |
| DC Current Ranges | 600µA/6mA/60mA/600mA/20A |
| AC Current Ranges | 6mA/60mA/600mA/20A |
| Temp. Ranges | -20℃ To 1000℃ |
| Transistor / (HFE) Ranges | 0 to 1000 |
| Duty Cycle Ranges | 1% to 99% |
| NCV Ranges | 90 – 1000V AC |
| Diode Ranges | Yes |
| Continuity Ranges | Yes |
Key Features
- Display: 3 ⅚ digits 6000 Count LCD Display
- Low battery Indication
- Diode and Continuity test
- Data hold & Back Light
- Fuse Protection
- APO: After 15 Min From last key operation
- Operating Temperature & Humidity: 0°C to 40°C, 45% to 80% RH
- Storage Temperature & Humidity: -20°C to 60°C, 45% to 80% RH
- Power Supply: 9V Battery
- Unit Size: 195 X 92 X 55 mm
- Display Size: 61 X 35 mm
- Weight: 380 grams including battery
Product Description
The Mextech DT603A Digital True RMS Multimeter is a versatile measuring instrument designed for precision testing in both professional and industrial environments. This multimeter accurately reads voltage, current, resistance, frequency, and capacitance, thanks to its true RMS capability which ensures accurate results even for non-sinusoidal waveforms. Featuring a large backlit LCD, data hold, and auto-ranging functionality, it offers ease of use for technicians and engineers. The DT603A also comes with safety features like overload protection and a rugged casing to withstand tough environments. Its wide measuring range and reliable performance make it ideal for labs, R&D departments, and field service.
Available on EnvMart, these Multimeters are ideal for accurate measurement of voltage, current, resistance, and more. Mextech Multimeters offer precision, reliability, and rugged design, perfect for both professional electricians and DIY users.
