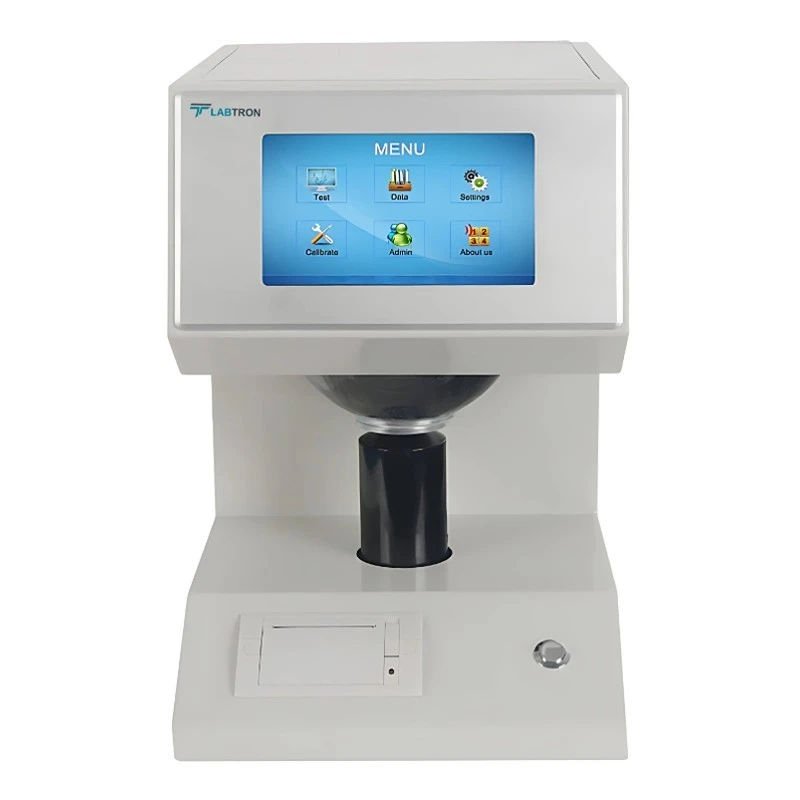

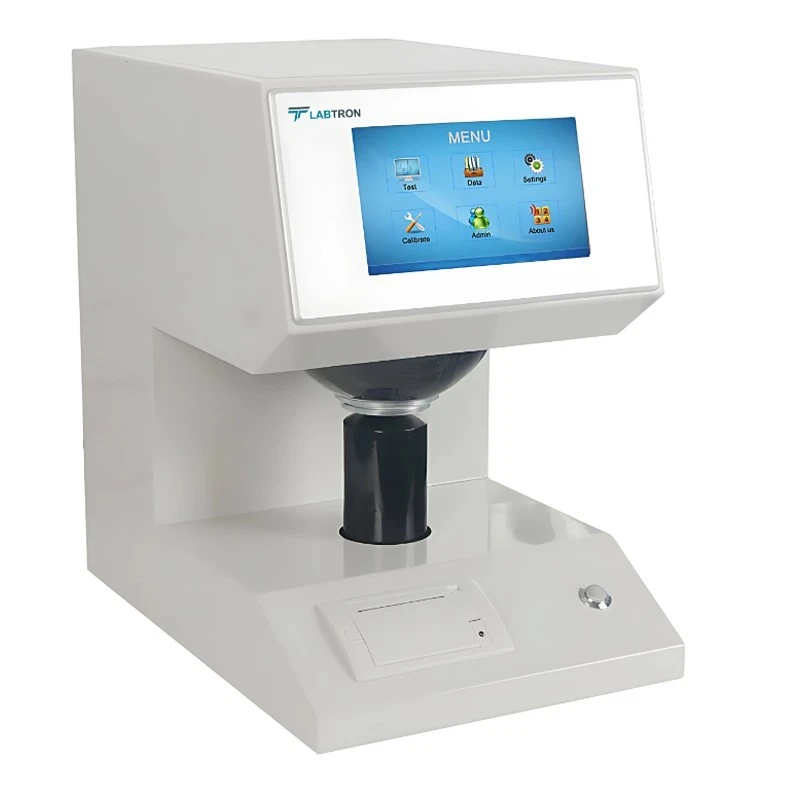

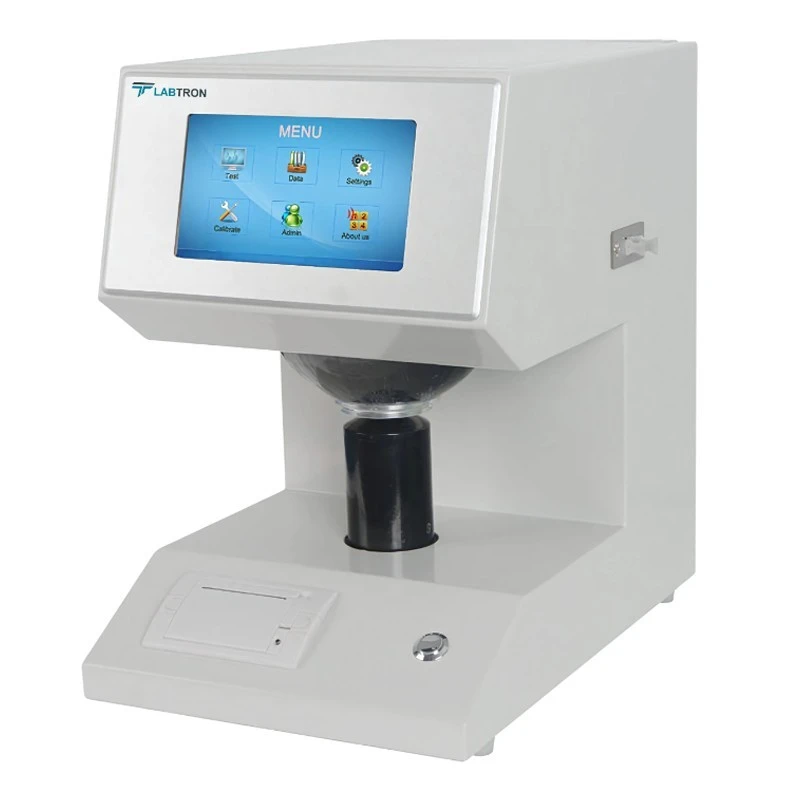

Whiteness and Chromaticity Tester TP-A10

Name: Whiteness and Chromaticity Tester TP-A10
Brand: Generic Brand
SKU: ADHOI
Price: 69.5 USD
Availability: InStock



SKU ADHOI Category Testing Instruments Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Repeatability	Rx / Ry and Rz ≤ 0.1 chromaticity co-ordinate ≤ 0.0010 / R457 ≤ 0.10
Accuracy	Chromaticity co-ordinate 0.0001
Brand	Generic Brand
Power Supply	220 V ± 10% / 50 Hz
Net Weight	23 Kg
Model	TP-A10
Stability	≤ 0.1 within 30 min
Storage	9 reference samples
Type of Product	Testing Instrument
System	D/0 lighting geometrical viewing conditions / diffuser diameter (d) 150 mm / testing hole diameter 30 mm
Dimension (L x W x H)	360 x 264 x 400 mm
Sample (Size) Length	Diameter ≥ 30 mm / Thickness ≤ 40 mm
Light Measurement	CIE Whiteness (Ganz Whiteness W10 / Color cast value TW10) / WH hunter Whiteness / YI Yellowness / ISO brightness R457

Key Features

Stimulate D65 illuminator to illuminate
Measurement of the opacity, transparency
Determination of light scattering coefficient ‘S’ and optical absorption coefficient ‘A ‘
Measuring ink absorption value
Measures WH hunter whiteness, YI Yellowness, CIE whiteness
Use of large screen color touch LCD to view measurement, statistical data
User-friendly data operations
Equipped with RS232 interface, with PC connections for data communication
Power protection, No loss of data on power off

Product Description

The Whiteness and Chromaticity Tester TP-A10 measures the whiteness, yellowness, color and color difference, reflectance value, stimulus value of the sample. It measures the paper opacity, transparency, light scattering coefficient, light absorption coefficient, and ink absorption value. The compact, advanced circuit design ensures the accuracy and stability of measurement data. This color tester measures the ISO brightness (blue whiteness R457) and Z whiteness (Rz) of fluorescent whitening samples due to the emission of the fluorescent material.

Applications:

The Whiteness & Color Tester is used to measure color values, brightness, and whiteness in papermaking, printing, ceramics, chemicals, textile printing and dyeing, building materials, food, salt, and other industries.

Measurement Mode:Diffuse reflection factor Rx / Ry / Rz / stimulus value Y10 / X10 / Z10 / chromaticity coordinates x10 / y10 / z10 | lightness L* / chroma ab / chroma Cab / hue angle hab / dominant wavelength λd / excitement purity Pe / color difference ΔEab / lightness difference ΔL / chroma difference ΔCab / hue difference ΔHab / Hunter system L / A / b

Whiteness and Chromaticity Tester TP-A10

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model measures whiteness, yellowness, color and color difference, reflectance value, opacity, transparency, light scattering coefficient, light absorption coefficient, and ink absorption value.

It operates on a power supply of 220 V ± 10% at 50 Hz.

The accuracy for the chromaticity coordinate is 0.0001.

The net weight of this unit is 23 Kg.

The dimensions are 360 mm in length, 264 mm in width, and 400 mm in height.

It maintains stability within ≤ 0.1 for up to 30 minutes after startup.

The sample diameter should be ≥ 30 mm and thickness ≤ 40 mm for testing.

It can store up to 9 reference samples for comparison.

The repeatability for Rx / Ry and Rz is ≤ 0.1, with chromaticity coordinates ≤ 0.0010 and R457 ≤ 0.10.

It is applicable in papermaking, printing, ceramics, chemicals, textile printing and dyeing, building materials, food, and salt industries.

It uses D/0 lighting geometrical viewing conditions with a diffuser diameter of 150 mm and a testing hole diameter of 30 mm.

It measures CIE Whiteness, WH hunter Whiteness, and YI Yellowness, as well as ISO brightness R457.
