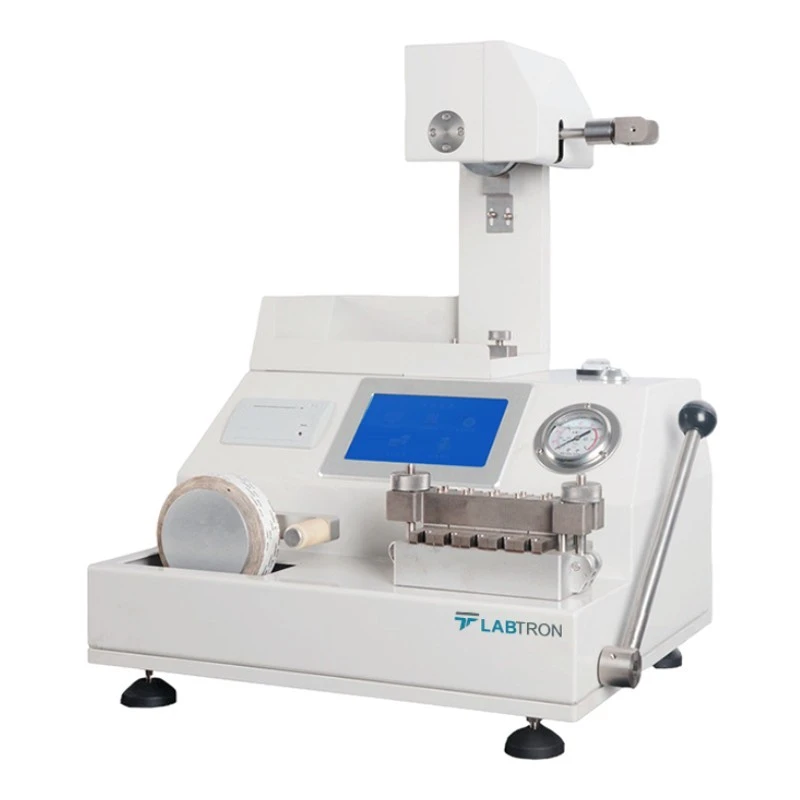

Internal Ply Bond Tester TP-J11
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.001 lbf/in² |
| Measuring range | A file — 20 to 500 J/m² / B file — 500 to 1000 J/m² |
| Measurement Units | LB · FT/in² or J/m² |
| Brand | Generic Brand |
| Model | TP-J11 |
| Weight | 65 KG |
| Type of Product | Testing Instrument |
| Specimen Size | 25.4 mm x 25.4 mm |
| Dimension (L x W x H) | 700 x 345 x 630 mm |
| Indication error | A — ± 1 J/m² / B — ± 2 J/m² |
| Packaging Weight | 75 kg |
| Packaging dimension (L x W x H) | 750 x 400 x 680 mm |
| Sample Amount | 5 pcs |
| Sample Clamping Force | 0 to 400 N (adjustable) |
| Impact Angle | 90° |
Key Features
- Microcomputer control
- Digital LCD screen
- Conforms to TAPPI-UM403 standards
- Evaluate the Z-direction tensile internal strength
- Modular one-type printer for printing test results
- Automated measurements with statistical analysis
- Hydraulic glue pressing
- Adjustable pressure settings
Product Description
The Internal Ply Bond Tester TP-J11 assesses the internal bonding strength of diverse paperboards. With a sample clamping force of 0 to 400 N, it focuses on an impact angle of 90º. Each test can accommodate up to five samples. Designed with a modern mechatronics concept, it features an elegant appearance and simple maintenance. The tester employs a falling pendulum mechanism, delivering a high-speed impact to a paper specimen.
Applications:
The Internal Ply Bond Tester is used for testing the internal bonding strength of various paperboards. It is applicable in the paper, corrugated paper, and packaging industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a measuring range of 20 to 500 J/m² for A files and 500 to 1000 J/m² for B files.
The resolution of this unit is 0.001 lbf/in².
The weight of this model is 65 kg.
The dimensions of the tester are 700 mm in length, 345 mm in width, and 630 mm in height.
It features an adjustable sample clamping force ranging from 0 to 400 N.
This model can accommodate up to five samples per test.
The impact angle for testing is set at 90°.
It is designed to test the internal bonding strength of various paperboards, applicable in the paper, corrugated paper, and packaging industries.
The indication error is ± 1 J/m² for A files and ± 2 J/m² for B files.
Measurements can be displayed in LB · FT/in² or J/m².
The country of origin for this model is the UK.
It is classified as a testing instrument.
