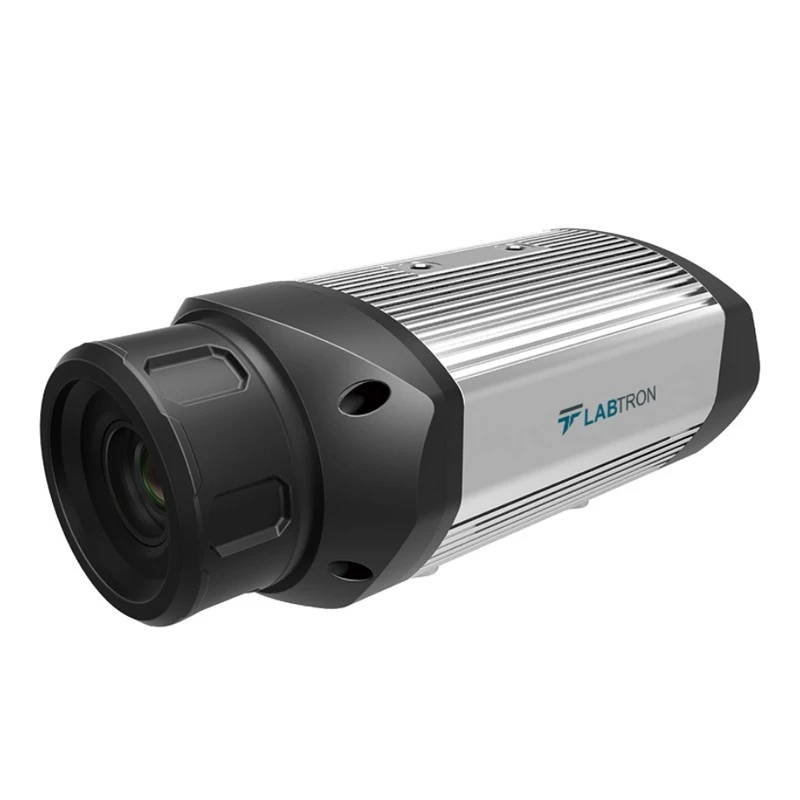

Hyperspectral Camera EHSC-A12
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 10W |
| Brand | Generic Brand |
| Power Supply | 5V and 12V ±10% |
| Operating Temperature | -20 to 50°C |
| Dimensions | 226 mm × 98 mm × 85 mm |
| Storage Temperature | -30 to 70°C |
| Spectral range | 400 to 1000 nm |
| Model | LHSC-A12 |
| Weight | 1.18 Kg |
| Detector Type | VIS-NIR Hyperspectral Camera |
| Type of Product | Spectrometer |
| Field of view (FOV) | 15.2° at f equal to 35 mm (Lens changeable) |
| Data Format | Compatible with ENVI |
| Spectral Channels | 512 |
| Spatial Channels | 640 |
| Instantaneous FOV (IFOV) | 0.7 mrad at f equal to 35 mm (Lens changeable) |
| Raw Resolution | 640 × 512 pixels |
| Raw Pixel Size | 15 µm × 15 µm |
| Bit Depth | 16 bits |
| Noise Equivalent Temperature Difference (NETD) | Less than 17 mK |
| Frame Rate (Max) | 120 fps |
| Detector Interface | Camlink |
| Target Surface Dimensions | 9.6 × 7.68 mm |
Key Features
- Adjustable Field of View
- Extensive spectral and spatial channels
- High dynamic range
- Ultra-sensitive NETD
- High frame rate
- Flexible interface
- Low power consumption
Product Description
Hyperspectral Camera LHSC-A11 offers a spectral range of 400 to 1000 nm with a raw resolution of 640 × 512 pixels, ensuring detailed and accurate imaging. It features a high-resolution HgCdTe deep-cooled sensor for enhanced sensitivity and clarity. The camera features pushbroom imaging, capturing data line-by-line for detailed analysis. Its advanced Stirling refrigeration cooling system maintains stable performance across a wide operating temperature range. Our compact and lightweight camera is ideal for applications requiring precise and reliable hyperspectral imaging.
Applications:
Our Hyperspectral Camera is widely used for monitoring plant health, detecting pests, analysing disasters, assessing water quality, mapping minerals, evaluating soil pollution, and classifying urban geological substances.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum frame rate is 120 frames per second (fps), enabling high-speed data capture.
The dimensions are 226 mm × 98 mm × 85 mm, and it weighs 1.18 kg, making it compact and lightweight.
The power supply requirements are 5V and 12V ±10%, with a power consumption of less than 10W.
The operating temperature range is from -20 to 50°C, suitable for various environmental conditions.
It utilizes pushbroom imaging, capturing data line-by-line for detailed analysis.
The NETD is less than 17 mK, indicating its sensitivity to temperature variations.
The camera is compatible with ENVI data format, facilitating data analysis and processing.
The field of view (FOV) is 15.2° at f equal to 35 mm, and the lens is changeable for different applications.
