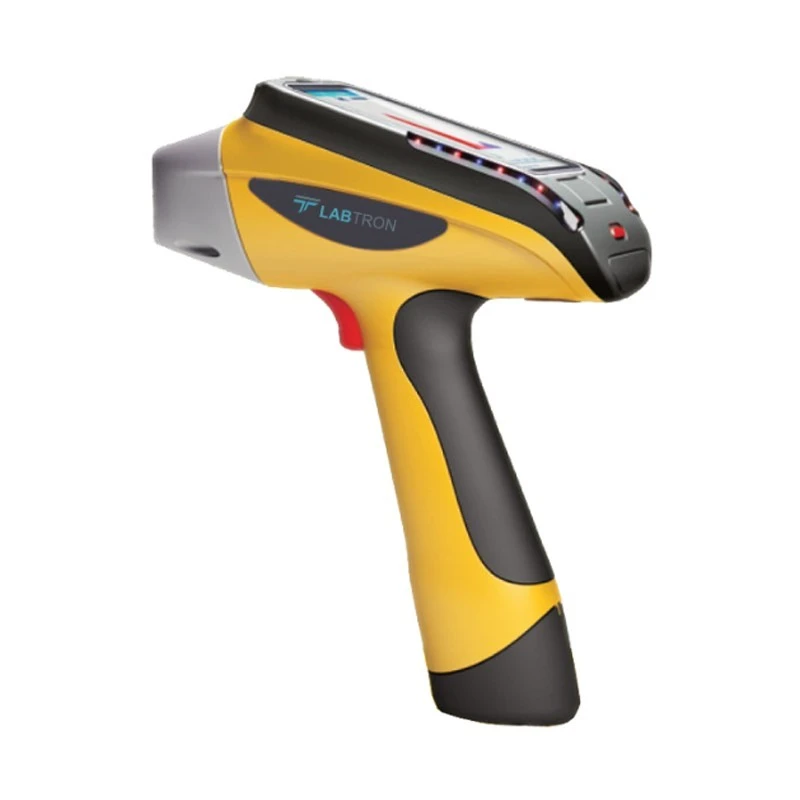

Handheld XRF Spectrometer EXRF-B10
Specifications
| Country of Origin | UK |
|---|---|
| Relative Humidity | ≤ 90% |
| Range | Simultaneous detector |
| Brand | Generic Brand |
| Power Supply | Rechargeable lithium battery (9000 mAh) / up to 12 hours sustainable work time |
| Data transmission | SPI multi-channel technology / waterproof mini USB / PC connectivity supported |
| Detector | SDD detector / simultaneous analysis of 40 elements |
| Model | LXRF-B10 |
| Weight | 1.7 kg |
| Detector Resolution | Minimum resolution can reach 128 eV |
| Ambient Temperature (ºC) | -20°C to 50°C |
| Type of Product | Spectrometer |
| Detection limit | Minimum detection limit — 1 to 500 ppm |
| Display Screen | 5-inch transflective LCD touch screen / resolution — 1080×720 |
| Excitation Source | 50 kV / 200 µA silver target | window-integrated miniature X-ray tube with HV power |
| Dimensions (L × W × H) | 244 × 90 × 330 mm |
| Detection Time | 1 to 60 seconds (based on report requirements) |
| Camera System | Built-in 500 W pixel HD camera for position monitoring |
| Analytical Method | Energy dispersive X-ray fluorescence analytical method |
| Elements Measuring | Atomic number from 12 to 92 (Magnesium to Uranium) |
| Content Measurement Range | ppm to 100% |
| Detection Objective | Solid / liquid / powder |
| Collimator and Filter | 4.0 mm and 2.0 mm collimators | 6 types of filters with automatic switching |
| Built-in System | GPS / Wi-Fi / Bluetooth |
| Warning-Signalling System | Green equal to Power On / Red equal to Testing / Yellow equal to Error |
Key Features
- Energy dispersive X-ray fluorescence analytical Method
- Simultaneous analysis of 40 elements using single detector
- Digital multi-channel technology with SPI data transmission
- Designed with 5 inch HD screen with clear display, 360° rotation, multipoints operation
- Quick measurement and accurate testing of the samples for a long time by its test block
- Rechargeable lithium battery 9000 mAh, sustainable work up to 12 hours
- Integrated design of seal type with waterproof and dustproof function
- Built in memory battery continue replace the battery power
- Ergonomic, lightweight, handheld design, easy to carry, safe for transportation
- Large data storage through ultra-high frequency memory and mass storage space
Product Description
Handheld XRF Spectrometer LXRF-B10 (XRF stands for X-ray fluorescence) comes in a special three-level military-protection box, which is compression-free, moisture-proof, and shockproof for convenient handling and on-field analysis. Rechargeable lithium battery 9000 mAh, sustainable work up to 12 hours. The core parts are Miniature X-ray tube, Fast-SDD detector, digital signal processor, and micro multichannel intelligent analysis module. Designed with a 5 inch HD screen with clear display, 360° rotation, and multi-points operation. No need for sample preparation, direct measurement and analysis of the surface of goods that need to be tested.
Applications :
Handheld XRF Spectrometer is used for the exploration of elemental composition from magnesium (Mg) to uranium (U), from parts per million to 100%. Used across scientific centres, research labs for quality testing of materials through measurement of elements present.
Standard Accessories :
- Universal charger and car charger
- 4G SD memory card and card reader
- Two lithium batteries and charger
- PDA accessories
- Radiation shield
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum detection limit of this model ranges from 1 to 500 ppm.
This model weighs 1.7 kg, making it lightweight and portable for field use.
The spectrometer features a 5-inch transflective LCD touch screen with a resolution of 1080×720.
The ambient temperature range for operation is from -20°C to 50°C.
The detection time can vary from 1 to 60 seconds, depending on the report requirements.
It supports SPI multi-channel technology, waterproof mini USB, and PC connectivity for data transmission.
The dimensions of this model are 244 mm in length, 90 mm in width, and 330 mm in height.
Yes, it includes built-in GPS, Wi-Fi, and Bluetooth capabilities.
