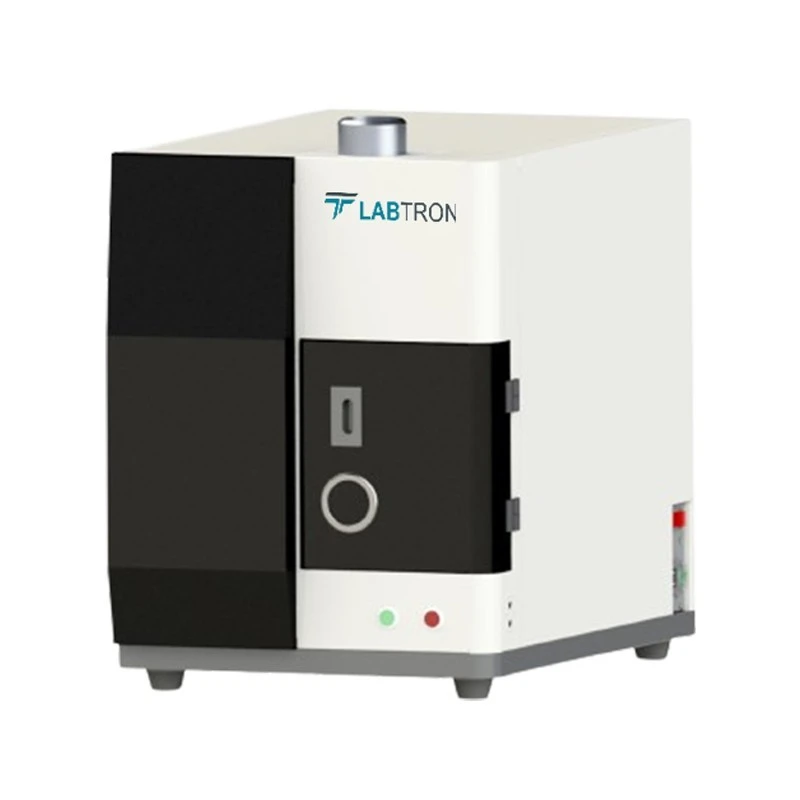

Oil Emission Spectrometer EOIL-A10
Specifications
| Country of Origin | UK |
|---|---|
| Operating Humidity | 0 to 95% RH |
| Power Consumption | ≤ 500W |
| Brand | Generic Brand |
| Power Supply | 220v/50Hz |
| Net Weight | 82 kg |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 65°C |
| Spectral range | 201 nm to 810 nm |
| Detector | Highly sensitive CMOS array |
| Model | LOIL-A10 |
| Sample Type | Lubricating oil / hydraulic oil / fuel oil / grease / antifreeze / cooling water / electrolyte / etc |
| Optical System | Paschen-Runge |
| Gross Weight | 130 kg |
| Temperature Control | Thermally stabilized | 37°C ± 0.1°C |
| Type of Product | Spectrometer |
| Focal Length | 400 mm |
| Standards | ASTM D6955 / ASTM D6728 / NB/SH/T 0865-2013 / SN/T 1652-2005 / HB 2009 4-1-2012 / DLT 1550-2016 |
| Output type | AC arc |
| Packaging Dimension | 96 x 70 x 95 cm |
| Injection mode | Rotating disc electrode |
| Injection Volume | ≤ 2 ml |
| Elements | Al / Ba / B / Ca / Cr / Cu / Fe / Pb / Mg / Mn / Mo / Ni / K / Na / Si / Ag / Sn / Ti / V / Zn |
| Dimension (W × H × D) | 500 x 720 x 730 mm |
Key Features
- RDE injection mode
- Supports real-time calibration
- No sample preparation required
- Paschen-Runge optical path structure
- Complies with multiple standards
Product Description
Oil Emission Spectrometer LOIL-A10 is designed with a CMOS array with a spectral range from 201 to 810 nm. It offers a minimum sample volume of 2 ml with a rapid analysis time of 10 seconds. Our spectrometer is equipped with multi-element analysis, allowing it to detect and quantify a wide range of elements in oils and lubricants. It integrates oil data trend analysis and automatic condition diagnosis for effective oil quality monitoring.
Applications:
Oil Emission Spectrometer is ideal for oil condition monitoring, wear metal detection, contaminant analysis, research and development.
Standard Accessories:
- Top Electrode
- Bottom Electrode
- Sample Cup
Optional Accessories:
- Disc Electrode (ODΦ12.5mm, IDΦ3.18mm, thickness 5.08mm)
- Rod Electrode (DΦ6.15mm, length 150mm)
- Sample Cup (ODΦ17.5mm, IDΦ15.5mm, height 10.7mm)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The spectral range of this model is from 201 nm to 810 nm.
It can analyze lubricating oil, hydraulic oil, fuel oil, grease, antifreeze, cooling water, and electrolytes.
The minimum sample volume required is 2 ml.
The operating temperature range is from -10°C to 40°C.
It requires a power supply of 220v/50Hz.
The dimensions of this model are 500 x 720 x 730 mm.
The net weight of this unit is 82 kg.
The power consumption is ≤ 500W.
It complies with ASTM D6955, ASTM D6728, NB/SH/T 0865-2013, SN/T 1652-2005, HB 2009 4-1-2012, and DLT 1550-2016.
It uses a rotating disc electrode for the injection mode.
The rapid analysis time for a sample is 10 seconds.
The standard accessories include a top electrode, bottom electrode, and sample cup.
