Dispensing Peristaltic Pump EDPP-B12
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 100 W |
| Relative Humidity | Less than 80 % |
| Brand | Generic Brand |
| Power Supply | AC 220 V ±10 % / 50 Hz / 60 Hz |
| Model | LDPP-B12 |
| Weight | 7.1 Kg |
| Ambient Temperature (ºC) | 0 ~ 40 °C |
| Type of Product | Peristaltic Pump |
| Speed Range | 0.1 ~ 600 rpm |
| Flow range | 0.06 ~ 6000 mL/min |
| IP grade | IP 31 |
| Flow Accuracy | 0.005 |
| No Of Channel | 2 |
| Dimensions (L × W × H) | 330 × 220 × 235 mm |
| Speed Resolution | 0.1 rpm |
Key Features
- Operational modes : Volume Dispense, Time Dispense, Copy Dispense and Flow Mode
- LCD display for monitoring parameters
- Anti-drip function ensuring dispense accuracy
- Speed resolution : 0.1 rpm
- Adjustable rotating speed
- Intelligent temperature control minimizing working noise
- Reversible operation allowing pumping in both directions
- Multi channels with interchangeable pump heads for varied applications
- Easy liquid auto dispension by time or volume
- Internal double layer isolation
- Dust and moisture proof circuit board
- Optional remote infrared control
- Robust and protected with ABS plastic housing
- Low noise operation
Product Description

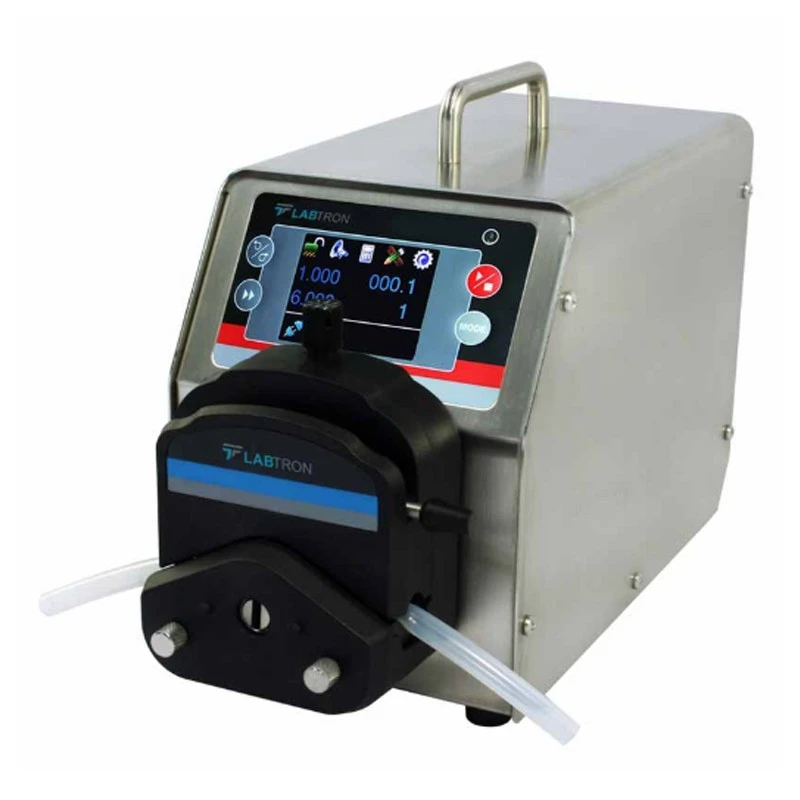

Dispensing Peristaltic Pump LDPP-B12 is a dual-channeled pump equipped with a touch screen controller for real-time parameter monitoring and speed adjustment. It includes advanced features like flow rate calibration and an anti-drip function. With four user-friendly operational modes, including an easy dispense mode activated by a single DISPENSE key press, this model ensures smooth functionality. The intelligent cooling fan control further minimizes operational noise, making it efficient for quiet work environments.
Pump Head and Tubing Selection:
- LDPP-B12 A: 0.06 – 1700 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 B: 1.7 – 1700 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 C: 0.06 – 1700 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 D: 1.7 – 1700 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 E: 0.06 – 2300 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 F: 1.7 – 2900 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 G: 0.06 – 2300 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 H: 1.7 – 2900 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B12 I: 2.5 – 6000 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow range is from 0.06 to 6000 mL/min, depending on the pump head used.
The speed range is from 0.1 to 600 rpm, with a speed resolution of 0.1 rpm.
This model features two channels for dispensing.
The dimensions are 330 × 220 × 235 mm, and it weighs 7.1 kg.
It requires an AC power supply of 220 V ±10 % at 50 Hz or 60 Hz.
The operational ambient temperature range is 0 to 40 °C.
The flow accuracy is specified as 0.005.
It includes an anti-drip function, intelligent temperature control, and a cooling fan to minimize noise.
The pump supports four operational modes: Volume Dispense, Time Dispense, Copy Dispense, and Flow Mode.
Yes, it has an IP grade of IP 31, indicating protection against dust and moisture.
The maximum relative humidity for operation is less than 80%.
